SES Installation & Operations Manual
INSTAllATION INSTRUCTIONS
1. Overview
The Spa Solar Eclipse is a UV/Ozone sanitation unit designed for
use in portable spas and to be controlled by the spa's equipment
pack. Use of this product in applications other than portable spas
will void your warranty and could be unsafe.
The Spa Solar Eclipse will ship with packaging material supporting
the Quartz Tube. This packaging must be removed before any
fittings are attached and/or the unit is installed.
Mounting
Bracket
Mounting Bracket
Screw
2. Mounting
Locate the Mounting Bracket and Mounting Bracket Screws in the
Parts Bag and attach the Mounting Bracket to the Spa Solar Eclipse
as shown in Figure 1. Mountings Holes are located on both sides of
the Spa Solar Eclipse.
Mount the Spa Solar Eclipse to the spa frame with 4 pieces of #8
hardware through the Mounting Bracket slots. Mount as high as
possible in the equipment area. The preferred mounting orientation
and water flow direction is shown in Figure 2. The unit may also be
mounted vertically with the water entering the lower fitting. Contact
DEL for other installation options.
3. Plumbing
DEL Ozone recommends that the Ozone Injector be installed
upstream of the Spa Solar Eclipse so the ozone can interact with
the UV light. This interaction leads to Advanced Oxidation Process
Mounting Hole

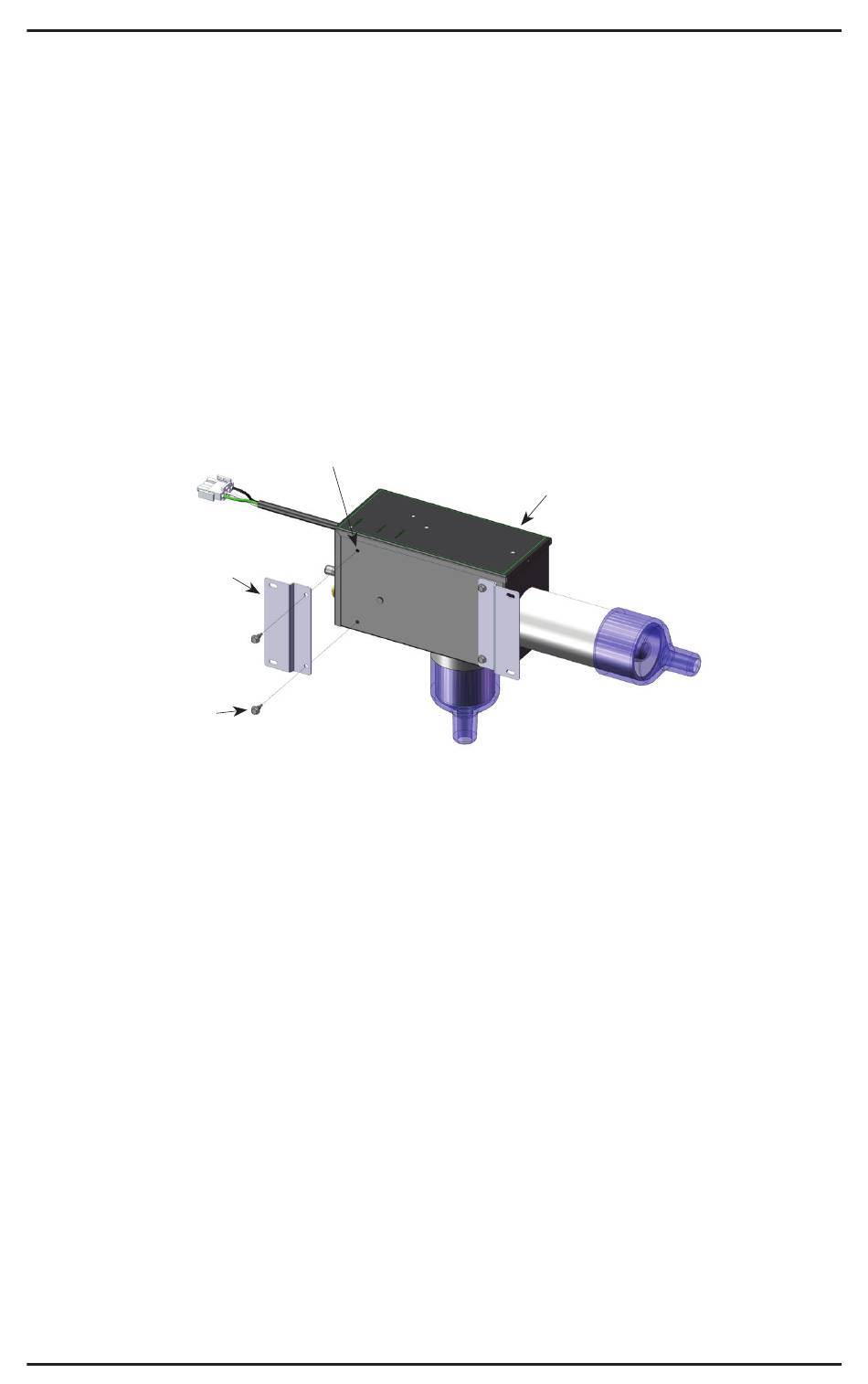

Figure 1: Mounting bracket Assembly
Spa Solar Eclipse
1
