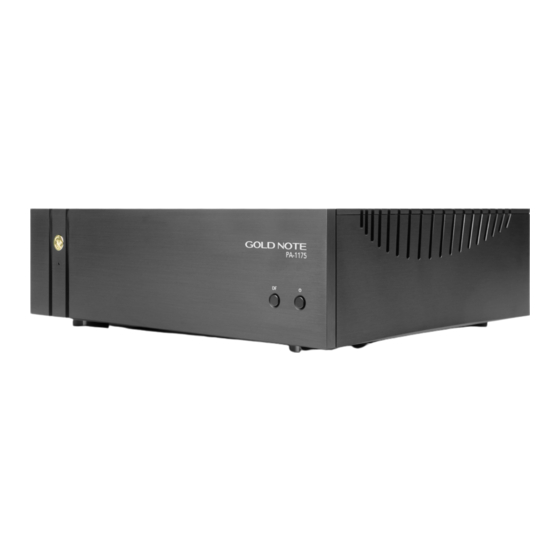

Gold Note PA-1175 MKII Owner's Manual
Hide thumbs
Also See for PA-1175 MKII:
- Owner's manual (12 pages) ,
- Owner's manual (13 pages) ,
- User manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for Gold Note PA-1175 MKII
Summary of Contents for Gold Note PA-1175 MKII

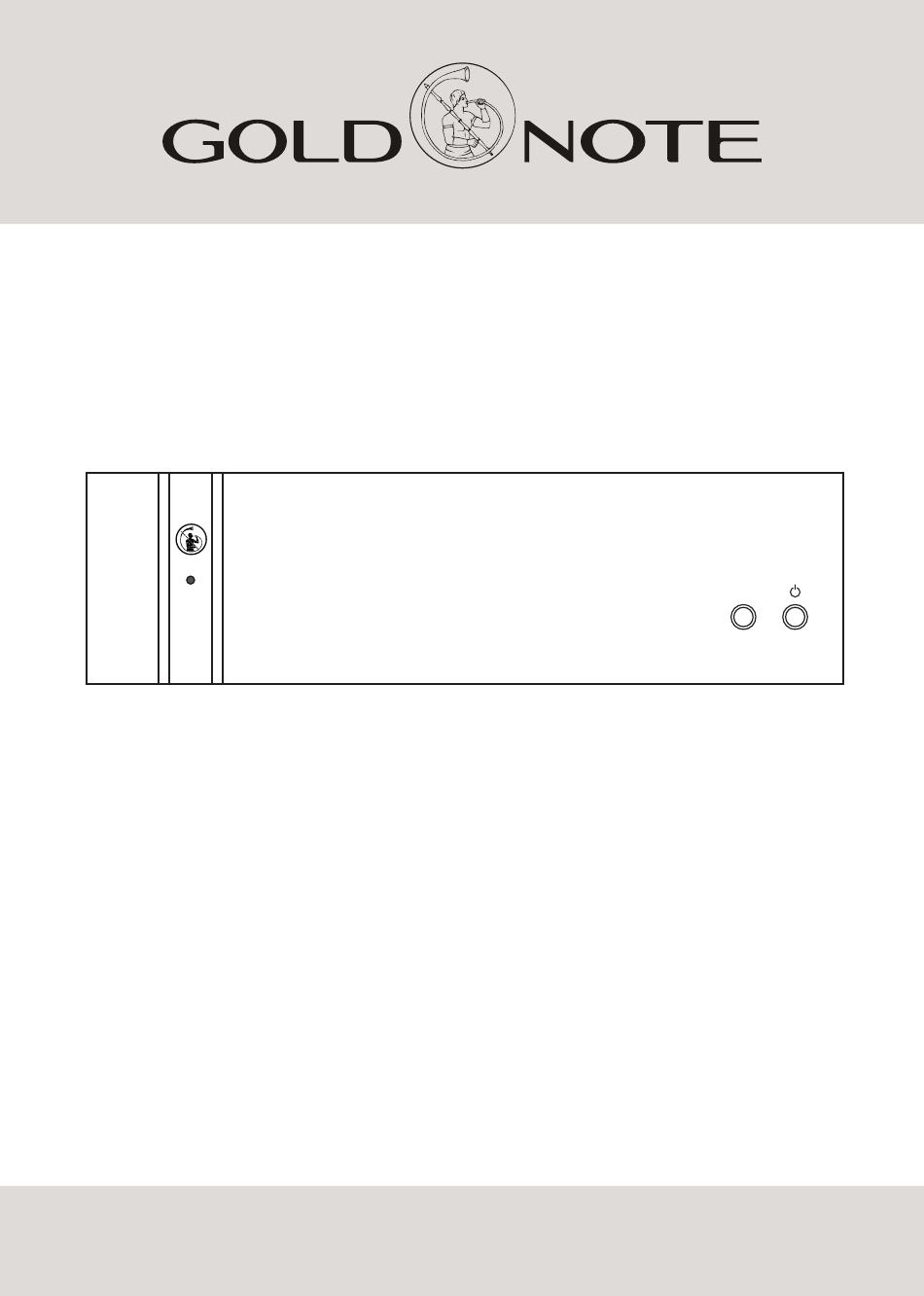

- Page 1 GOLD NOTE PA-1175 PA-1175 MKII STEREO POWER AMPLIFIER OWNERʼS MANUAL...
-
Page 3: Table Of Contents
INDEX DESCRIPTION & SPECIFICATIONS......................P. 3 FRONT PANEL............................P. 5 REAR PANEL............................P. 6 WARRANTY & SERVICE......................... P. 7 FAQ & TROUBLESHOOTING........................P. 8 IMPORTANT SAFETY INFORMATION....................... P. 9... -
Page 4: Description & Specifications
PA-1175 high-level performance. quality. The PA-1175 is built around a very solid steel chassis completed by large massive panels of aluminum to avoid RFI and EMI. Every Gold Note product is 100% proudly designed, manufactured and assembled in Italy... - Page 5 DESCRIPTION & SPECIFICATIONS HIGH POWER AMP AUDIO INPUTS The PA-1175 MKII is a 200W per channel @ 8Ω Stereo Stereo RCA, stereo XLR balanced. Power Amplifier bridgeable to have a mono 520W per Input sensitivity: 1000mV on RCA and 4000mV on XLR channel.
-
Page 6: Front Panel
FRONT PANEL GOLD NOTE PA-1175 1. STATUS LED Blue when powered and with HIGH DF 250 selected Green with LOW DF 25 selected 2. STANDBY BUTTON 3. DF Push the DF button to adjust the DampingFactor from HIGH (250) to LOW (25) -
Page 7: Rear Panel
REAR PANEL AUDIO INPUTS INGRESSI AUDIO MONO STEREO MODE MONO MODE 1. XLR LEFT balanced input 1. balanced input bilanciato XLR 2. RCA LEFT unbalanced input 2. unbalanced input RCA 3. XLR RIGHT balanced input 4. RCA RIGHT unbalanced input SPEAKER OUT SPEAKER OUT STEREO MODE... -
Page 8: Warranty & Service
WARRANTY & SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 9: Faq & Troubleshooting
The interconnect cables are Connect them properly not properly connected to the amp. One of the fuses is blown Substitute the fuse with one of the same value For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/... -
Page 10: Important Safety Information
The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. Please record the model and serial number and retain them for your records. - Page 11 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the 2. Heed all warnings. apparatus. 3. Follow the instructions. When a cart is used, use caution when moving the 4.
- Page 12 NOTES...
- Page 13 NOTES...
- Page 14 NOTES...
- Page 16 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
