Summary of Contents for Gold Note PH-1

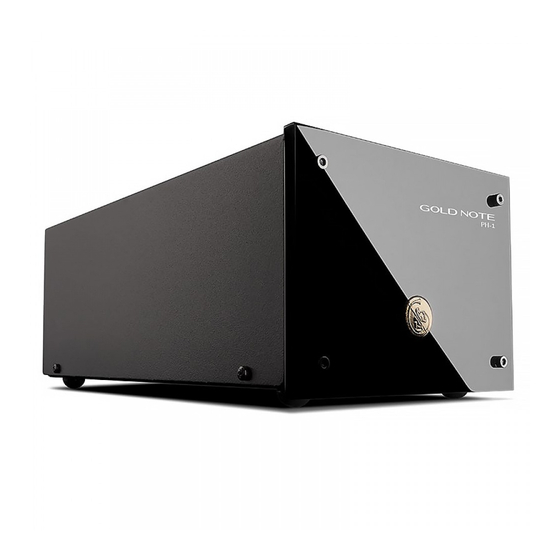

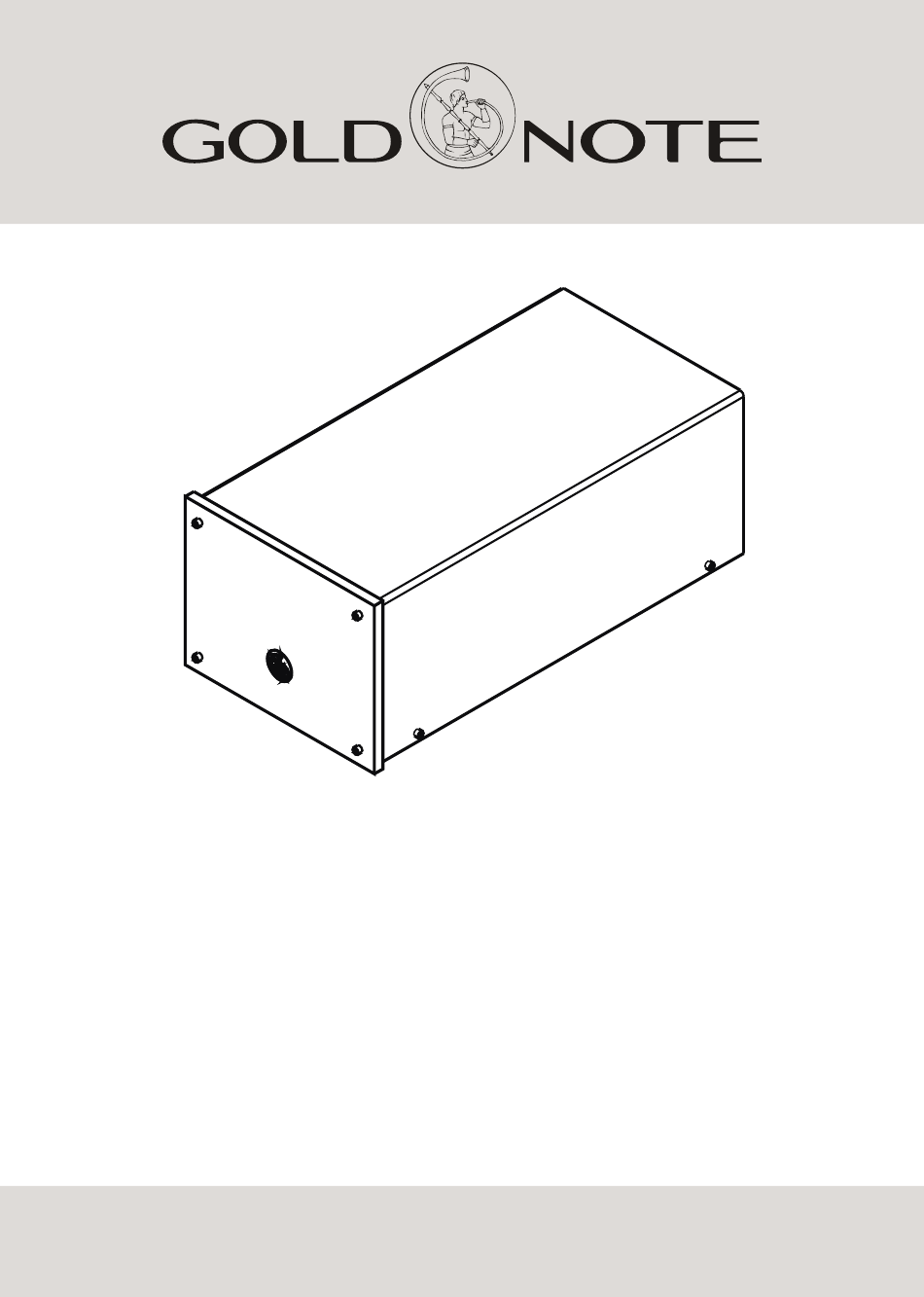

- Page 1 Italian Music Experience PH-1 MM & MC PHONO PREAMPLIFIER OWNER’S MANUAL...
-
Page 2: Important Safety Information
Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 3 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2. Heed all warnings. When a cart is used, use caution when moving the 3.
-
Page 4: Introduction And Specifications
The Gold Note PH-1 is a high performance convenient MM & MC phono preamplifier featuring Ultra Linear Power Supply. The design developed for the PH-1 allows matching easily any kind of MM and MC cartridge with a wide option of set up with easy access impedance setting and true balanced design output connectors. - Page 5 It is anyway possible vary the PH-1 Gain from MM to MC. It is also possible vary the load impedance on this unit. Because to do that is necessary to remove the cover of the unit we suggest to contact the local Gold Note® distributor to avoid of warranty invalidity.
-
Page 6: Pannello Posteriore
PANNELLO POSTERIORE ON/OFF MASTER SWITCH RCA L/R RCA L/R ANALOGUE AUDIO OUT ANALOGUE AUDIO IN AC IEC POWER PLUG GND GROUND PSU-1 INPUT WITH FUSE (500MA) EXTERNAL POWER SUPPLY... -
Page 7: Warranty And Service
WARRANTY & SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. - Page 8 Any acid or not extremely soft cloth will irreversibly damage the Phono Stage fine aesthetic. Do not use any alcohol to clean the Phono Stage anodized label, or printed parts. Only dry cloth is allowed For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/...
-
Page 9: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE DESCRIPTION REMEDY The speakers hum The Phono Stage is very SPEAKER HUMMING Be sure the position chosen is when Phono SENSITIVE to house environment PROBLEMS compatible with the Phono Stage. Stage is connected to positions. the system Try to plug or to unplug the ground The Ground connector is not connector always finding the best... - Page 10 NOTE...
- Page 11 NOTE...
- Page 12 Italian Music Experience www.goldnote.it...
