Summary of Contents for Gold Note PH-1

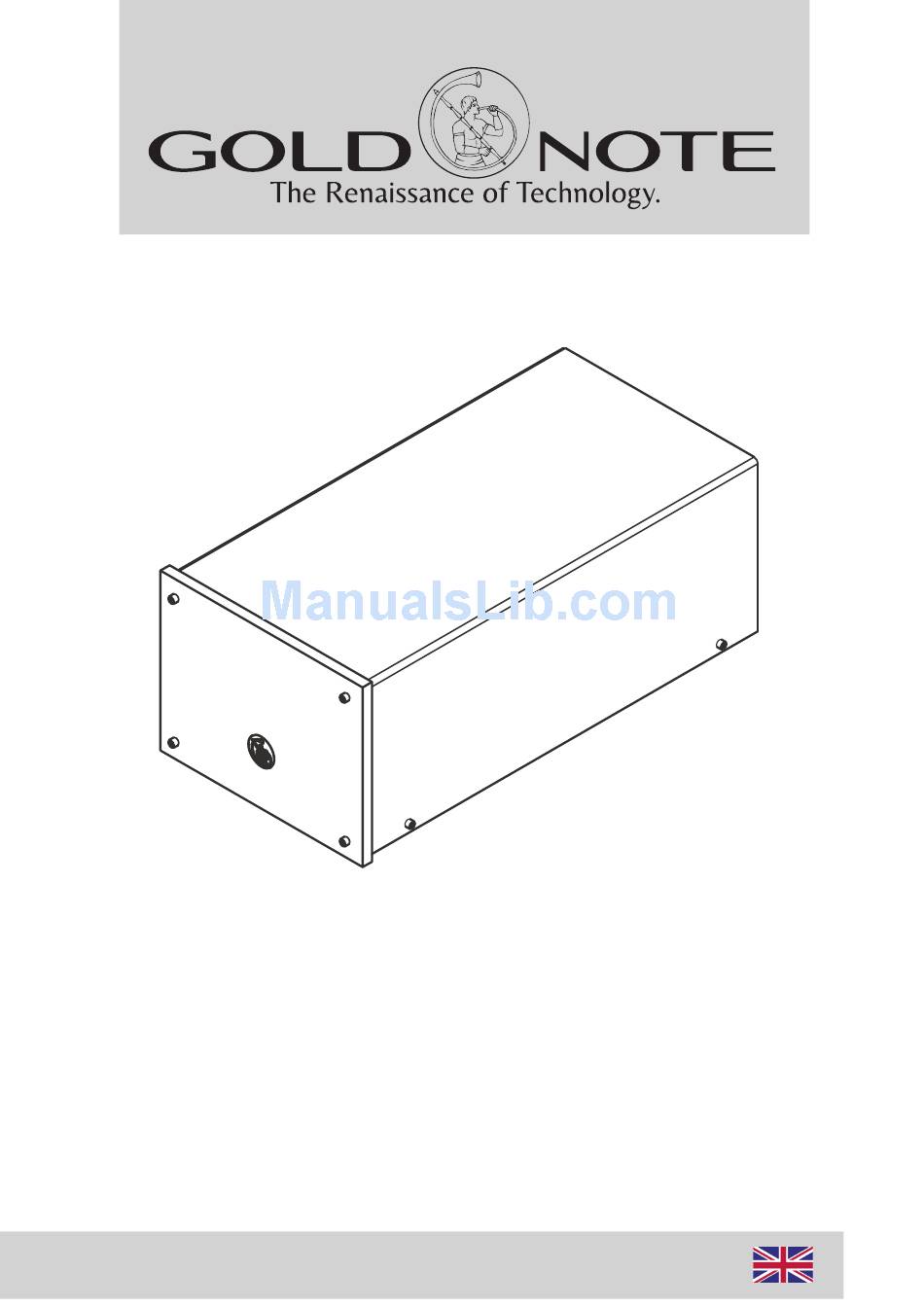

- Page 1 PH-1 Italian MM & MC Phono Preamplifier OWNER’S MANUAL...
-
Page 2: Important Safety Information
The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel. Please record the model and serial numbee and retain them for your records. - Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.
-
Page 4: Introduction And Specifications
The Gold Note PH-1 is a high performance convenient MM & MC phono preamplifier featuring Ultra Linear Power Supply. The design developed for the PH-1 allows matching easily any kind of MM and MC cartridge with a wide option of set up with easy access impedance setting and true balanced design output connectors. -
Page 5: Operating Conditions
The PH-1 should be purchased set up already as per user needs concerning both Gain and Load. It is anyway possible vary the PH-1 Gain from MM to It is also possible vary the load impedance on this unit. Because to do that is necessary to remove the cover of the unit we suggest to contact the local Gold Note®... -
Page 6: Rear Panel
REAR PANEL ON/Off Master Switch RCA Unbalanced Left-Right Analogue Audio OUT RCA Unbalanced Left-Right Analogue Audio IN GND Ground External PSU-1 Input IEC PLUG with FUSE - 100 -240 Volt - 50/60Hz with 500mA fuse OWNER’S MANUAL OWNER’S MANUAL page 8 page 5... -
Page 7: Customer Service
WARRANTIES WARRANTIES REGISTRATION To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different coun- try of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused. - Page 8 Phono Stage fine aesthetic. Do not use any alcohol to clean the Phono Stage anodised label, or printed parts. Only dry cloth is allowed For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 7...
- Page 9 TROBLESHOTING SYMPTOM DESCRIPTION CAUSE REMEDY SPEAKER HUMMING The speakers hum The Phono Stage is very SENSITIVE Be sure the position chosen is compati- PROBLEMS when the Phono to house environment positions. ble with the Phono Stage. Stage is connected to the system The Ground connector is not Try to plug or to unplug the ground connector always finding the best solution...
- Page 10 USER NOTE OWNER’S MANUAL page 9...
- Page 11 USER NOTE OWNER’S MANUAL page 10...
- Page 12 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
