LIEBERT PSI5™ UPS
Quick Installation User Guide
IMPORTANT: Before installing,
connecting to supply or operating
your Liebert PSI5
UPS, please
TM
review the Safety and Regulatory
Statements sheet. For detailed
installation, operating, maintenance
and troubleshooting information
refer to the PSI5
User Guide
TM
available at www. V ertivCo.com.

INSTALLATION

1. Inspecting the UPS

Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed and call
our warranty support line for
assistance at 1-800-222-5877
menu option 3, or email at
microups.warranty@vertivco.com.

2. Choosing a location

Install the UPS in a
temperature-controlled
environment that is free of
corrosive and conductive
contaminants. Avoid locations
near heat or water sources and
exposed to direct sunlight. For
proper ventilation, leave four
inches clearance on all sides of
the UPS.
The input outlet should be
nearby and easily accessible.

3. Installing the UPS

The UPS and optional PSI5
UPS External Battery Cabinets
may be installed in either a
tower or rack configuration. For
tower installation, assemble and
attach the tower support stands.
For rack installation, attach the
brackets to the UPS, install the
rail kit in the rack if needed, and
install the UPS in the rack.
NOTE: This UPS is not for use in a
computer room as defined in the
standard for the protection of
electronic computer/data
processing equipment of ANSI/
NFPA 75.

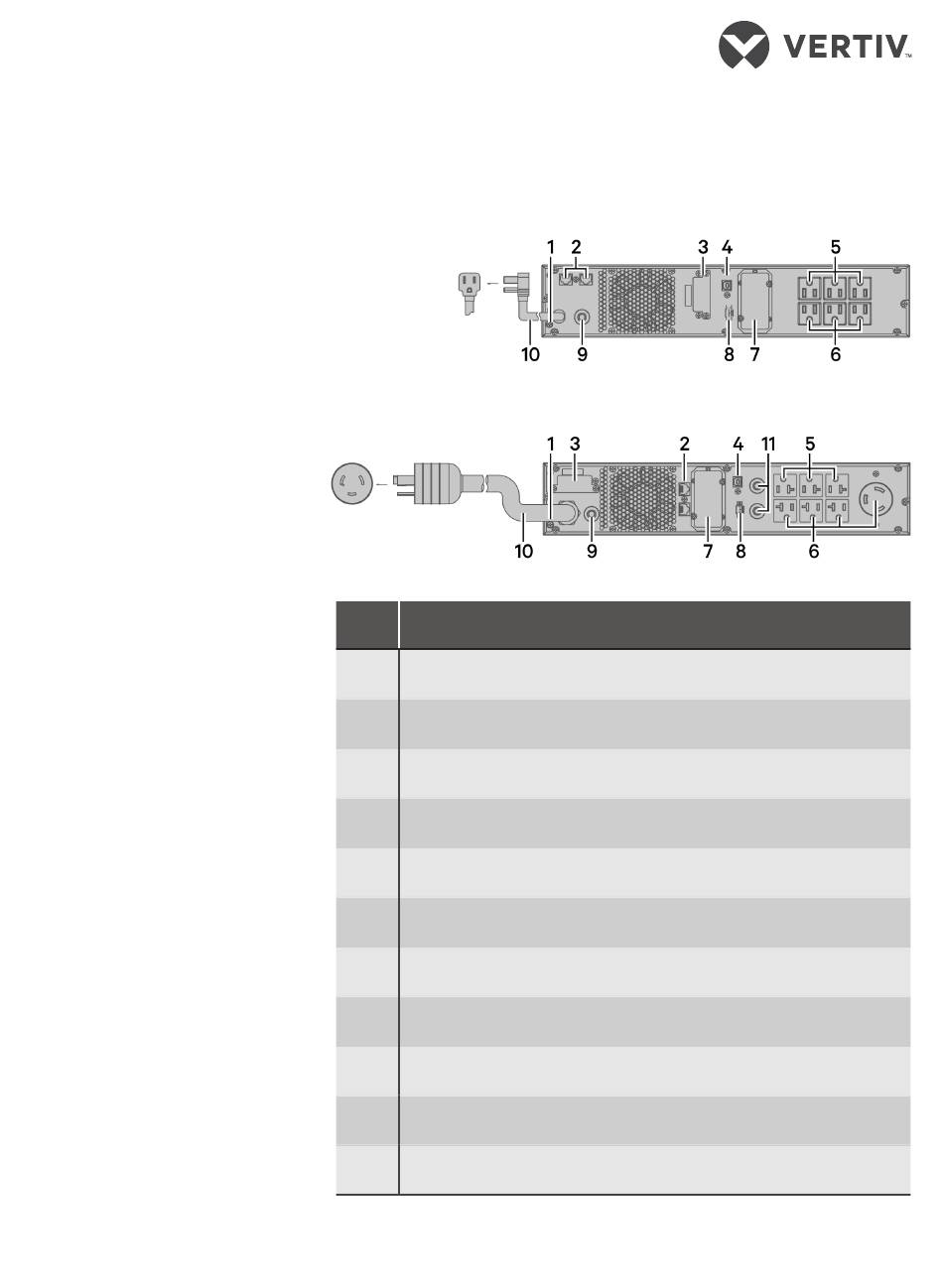

MODEL DESIGN CONFIGURATIONS
PSI5-1500RT100
PSI5-3000RT100
#
Description
1
Grounding screw
2
Network/Fax/Modem surge protection input/output
3
External battery connector
4
USB communication port
5
Programmable receptacles
TM
6
Non-programmable receptacles
7
SNMP IntelliSlot port
8
Emergency Power Off (EPO) connector
9
Input circuit breaker
10
AC input
11
Output circuit breaker
1
590-2192-617A/SL-70358_REV0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIEBERT PSI5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vertiv LIEBERT PSI5 Series

  • Page 1 LIEBERT PSI5™ UPS Quick Installation User Guide MODEL DESIGN CONFIGURATIONS IMPORTANT: Before installing, connecting to supply or operating your Liebert PSI5 UPS, please PSI5-1500RT100 review the Safety and Regulatory Statements sheet. For detailed installation, operating, maintenance and troubleshooting information refer to the PSI5 User Guide available at www.
  • Page 2 LIEBERT PSI5™ UPS Quick Installation User Guide UPS to External Battery Cabinet Connections EBC port PSI5-3000RT100 Shown Single/First EBC Second EBC CONNECTIONS 5. External Battery Cabinet The UPS works with the Connection (Optional) computer running software 1. Connecting Loads built-in within the Microsoft® External battery cabinets The UPS has Windows®...
  • Page 3: Battery Charging

    LIEBERT PSI5™ UPS Quick Installation User Guide 4. Once the UPS and EBC(s) • Never block or insert any objects into the UPS ventilation are connected, secure the holes or openings. connection with the screws, reconnect the internal • Do not place the UPS power batteries and replace the cord where it might be front left covers on the...
  • Page 4 To contact Vertiv Technical Support: visit www.VertivCo.com © 2018 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions.
  • Page 5 LIEBERT PSI5™ UPS クイック ・ インストレーション ・ ユーザー ・ ガイド 重要: Liebert PSI5 UPS を設置し、 モデル設計の構成 電源に接続、 または操作する前に、 安 PSI5-1500RT100 全性と規制に関する記述書を確認し てく ださい。 インストール、 操作、 メン テナンス、 およびトラブルシューティ ングの詳細情報については、 PSI5 ユーザーガイド www. V ertivCo.com より入手可 を参照してください。 インストール 1. UPS の点検 PSI5-3000RT100 UPS に明らかな損傷の兆候が ないか点検します。...
  • Page 6 LIEBERT PSI5™ UPS クイック ・ インストレーション ・ ユーザー ・ ガイド UPSから外付けバッテリキャビネッ トへの接続 EBC ポート PSI5-3000RT100 (表示例) シングル/第1 EBC 第2 EBC Trellis™ Power Insight ソフトウェ 接続 ルとアプリケーションに適したモ アに組み込まれたソフトウェア デルと数量を選択するに 1. 負荷の接続 は、 PSI5 を実行しているコンピュータで ユーザーガイドを参 UPS は、 プログラム不能および 動作します。 照してください。 PSI5 には最大 6 プログラム可能のリアコンセン...
  • Page 7 LIEBERT PSI5™ UPS クイック ・ インストレーション ・ ユーザー ・ ガイド 5. インストールおよび初期起 管する場合は、 4〜6 か月ごとに少な 動の後、 UPS の設定で取り付 く とも 24 時間以上UPSを入力電源 けられたバッテリキャビネッ に接続して、 バッテリを確実に完全 トの数を設定します。 再充電することをお勧めします。 注: 複数の外付けバッテリキャビネッ バッテリ交換 トをPSI5 モデル 3000 で使用する 重要: 先に進む前に、 https : // 場合、 UPS の定格荷重は 20%減少 www.vertivco.com/ します。...
  • Page 8 イクルセンターに適切に廃棄す るか、 交換用バッテリの梱包材 に入れて Vertiv に返送してくだ さい。 Vertiv テクニカル ・ サポートに問い合わせるには、 www.VertivCo.com にアクセスしてく ださい © 2018 Vertiv Co. 全著作権所有。 Vertiv および Vertiv ロゴは Vertiv Co. の商標または登録商標です。 言及されている他のすべての名称およびロゴは、 それぞれの所有者の商号、 商標 または登録商標です。 ここに記載される内容の正確性および完全性を保証するため、 Vertiv Co. ではあらゆる予防措置を講じておりますが、 本情報の使用が原因で発生する損害または 錯誤もしくは不作為に対して、 一切の責任を負わず、 かつそのすべての賠償責任を拒否します。 仕様は予告なく変更される可能性があります。 590-2192-617A/SL-70358_REV0...
