Summary of Contents for Progression Fitness PV500

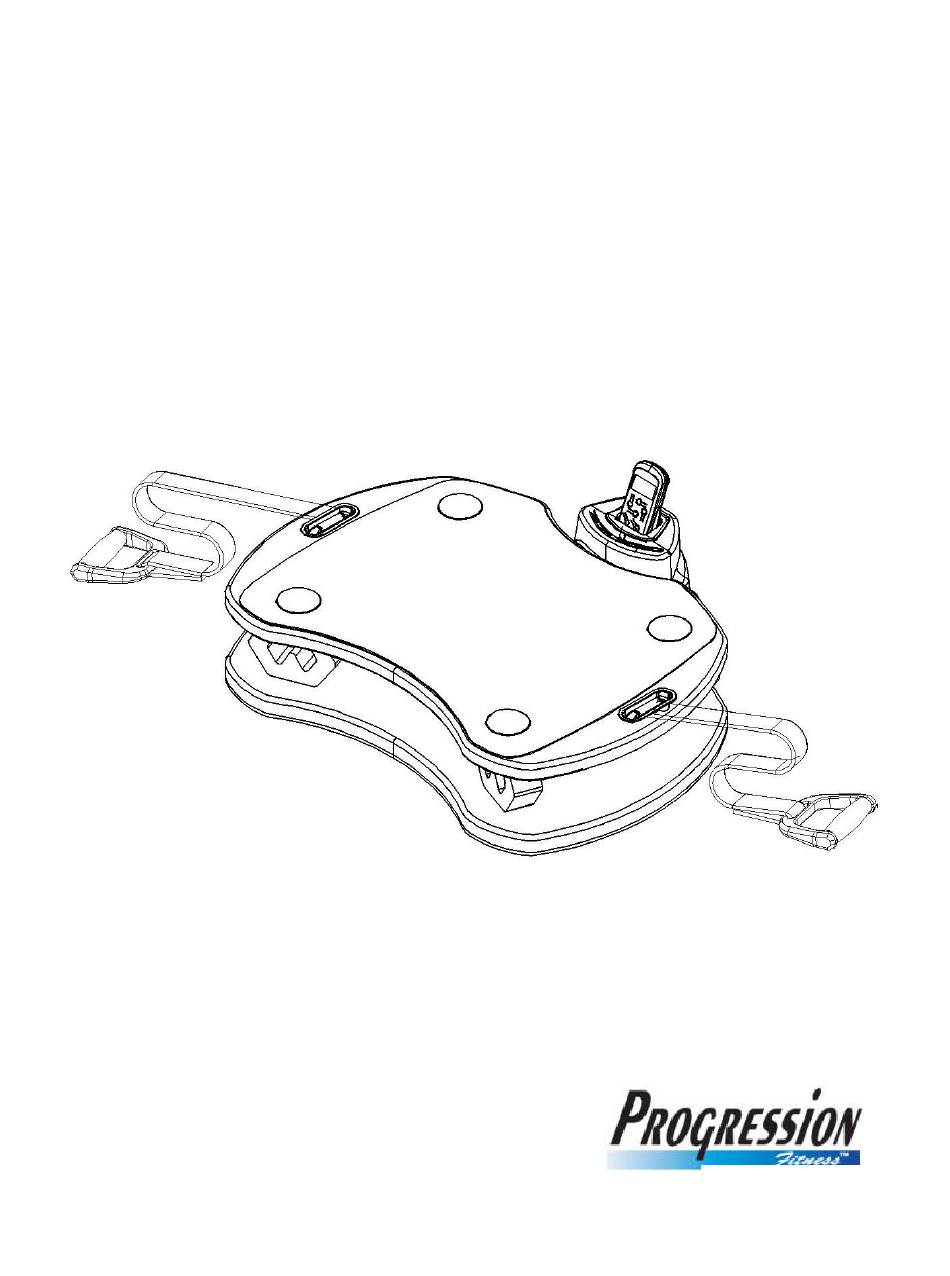

- Page 1 PV500 Vibration Trainer MANUAL PV500 - 1 -...
-
Page 2: Important Safety Instructions
Progression Fitness. 5） Never operate the PV500 if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the PV500 to a service center for examination and repair. -
Page 3: Consignes De Sécurité Importantes
13）Close supervision is necessary when this appliance is used on or near children, or persons with physical resitrictions. 14）Connect the PV500 to a properly grounded outlet only. See Grounding Instructions. 15）Remove the key when not in use, and store out of reach of children. - Page 4 l'eau. Retournez l'appareil à un centre de service pour examen et réparation. 6) Ne pas transporter l'appareil par le cordon d'alimentation ou utiliser le cordon comme une poignée. 7) Gardez le cordon loin des surfaces chauffées. 8) Ne jamais faire fonctionner l'appareil avec les ouvertures de ventilation est obstrué. Garder les ouvertures d'air libres de peluches, les cheveux, et autres.
-
Page 5: Unpacking And Assembly
UNPACKING & ASSEMBLY FOR HOUSEHOLD USE ONLY MAINTENANCE Important: To prevent damage to the computer, keep liquids away and keep it out of direct sunlight. After each workout: Wipe off the plate surfaces with a clean, water dampened soft cloth to remove excess perspiration. -
Page 6: Console Operation
CONSOLE OPERATION There are three programs in the console that are pre-programmed, P1, P2, P3. Time setting range is 1-180S. Frequency setting is 35, 40, 45, and 50Hz. Put the remote control focus on the signal receiver hole, active the remote control by pushing the power switch. - Page 7 the “ ” button three times, the corresponding AUTO light will illuminate. When running P1-P3 programs, the frequency and time can not be set as it is automatically adjusted from the preset program. PROGRAM Section NO. TIME REST 30" 30" 30"...
-
Page 8: Exploded Drawing
EXPLODED DRAWING - 8 -... -
Page 9: Part List
PART LIST Item Plate Plate top mat Hand strap seat Fix seat under hand strap fixed seat Hand strap fix seat Ground board Moving seat Electronic cover Moving Decorate aluminum Artificial leather Motor Packing taping Remote control ST3.5×15 Cross recessed pan head self-taping screw M10 Nut Φ10 washer Sticker... - Page 10 M6X35 Cross recessed socket pan head bolt Φ6 washer M6 washer M5X10 Cross recessed pan head bolt M6X30 inner hexagon pan head bolt Power connection plug ST3.5X15 Cross recessed head Self-taping screw ST3.8X30 Cross recessed head Self-taping screw Motor cushion Push and Pull handle Rubber cushion Transducer and Connection plug...
-
Page 11: Circuit Diagram
CIRCUIT DIAGRAM - 11 -... -
Page 12: Manufacturer's Limited Warranty
REPAIR PARTS AND SERVICE All of the parts for the PV500 shown in figure can be ordered from Progression Fitness Head Office - 120 Robin Crescent, Saskatoon, SK S7L 6M7. When ordering parts, the parts will be sent and billed at the current prices. Prices may be subject to change without notice. - Page 13 120 Robin Crescent, Saskatoon, SK, Canada S7L 6M7 - 13 -...
