Summary of Contents for Swegon PARASOL C Series

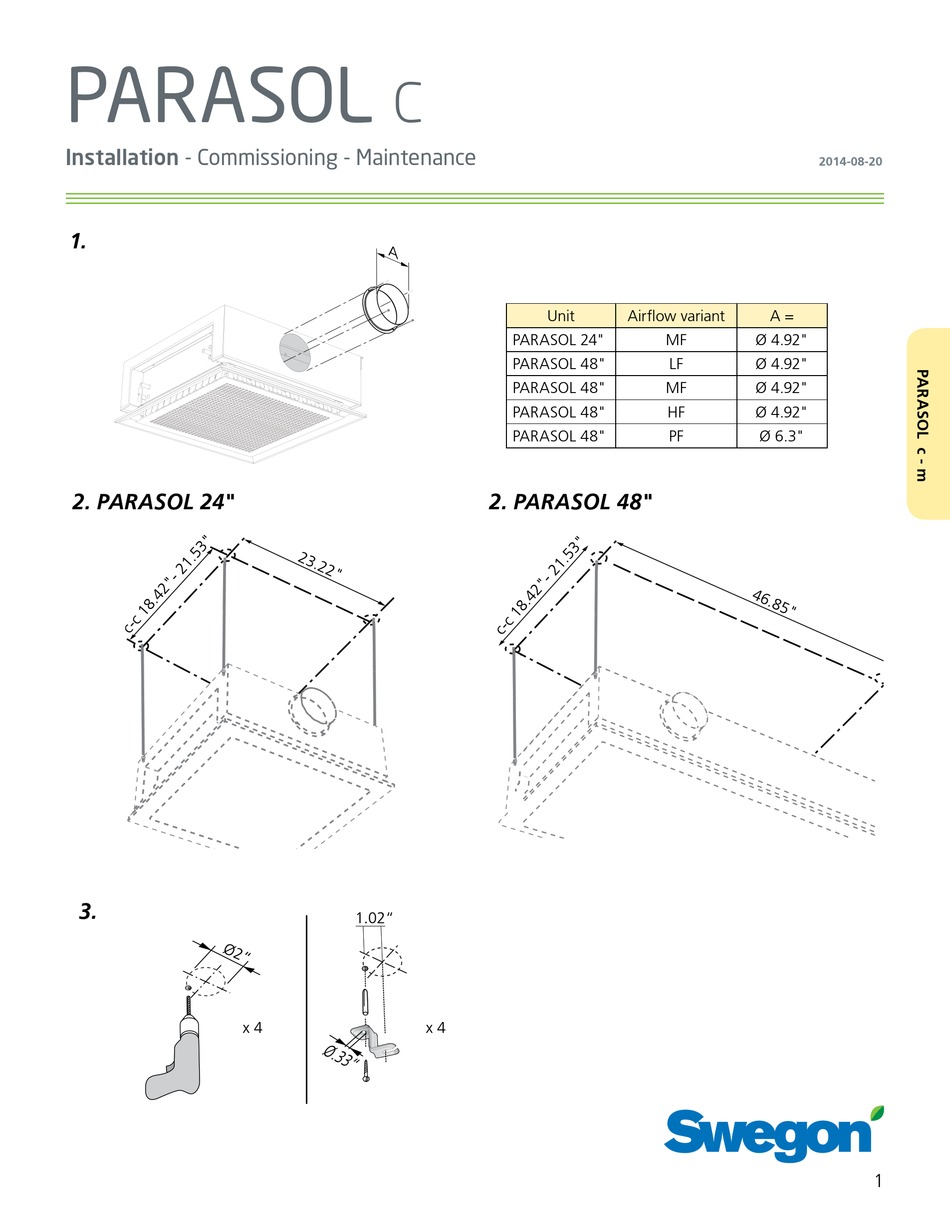

- Page 1 PARASOL c Installation - Commissioning - Maintenance 2014-08-20 Unit Airflow variant PARASOL 24" Ø 4.92" PARASOL 48" Ø 4.92" PARASOL 48" Ø 4.92" PARASOL 48" Ø 4.92" PARASOL 48" Ø 6.3" 2. PARASOL 24" 2. PARASOL 48"...
- Page 2 Max. recommended operating pressure: 230 psi Max. permissible inlet flow temperature: 140°F The optional damper must always be mounted with the knob to the left viewed in the direction of primary air flow, see figure 6. Swegon reserves the right to alter specifications 2014-08-20 www.swegon.com...
- Page 3 PARASOL c Installation - Commissioning - Maintenance 2014-08-20 Water Side 1 2 3 4 T-25 5/16 X-shape Nozzle configuration Fan-shape...
- Page 4 1&3 short 40.49 Nozzle L, M and H Nozzle C 2&4 long 106.74 1&3 short 18.59 2&4 long 49.05 * Parasol c 1200 PF with nozzle C is not completely closed Swegon reserves the right to alter specifications 2014-08-20 www.swegon.com...
- Page 5 PARASOL c Installation - Commissioning - Maintenance 2014-08-20 OPEN THIS SIDE...
