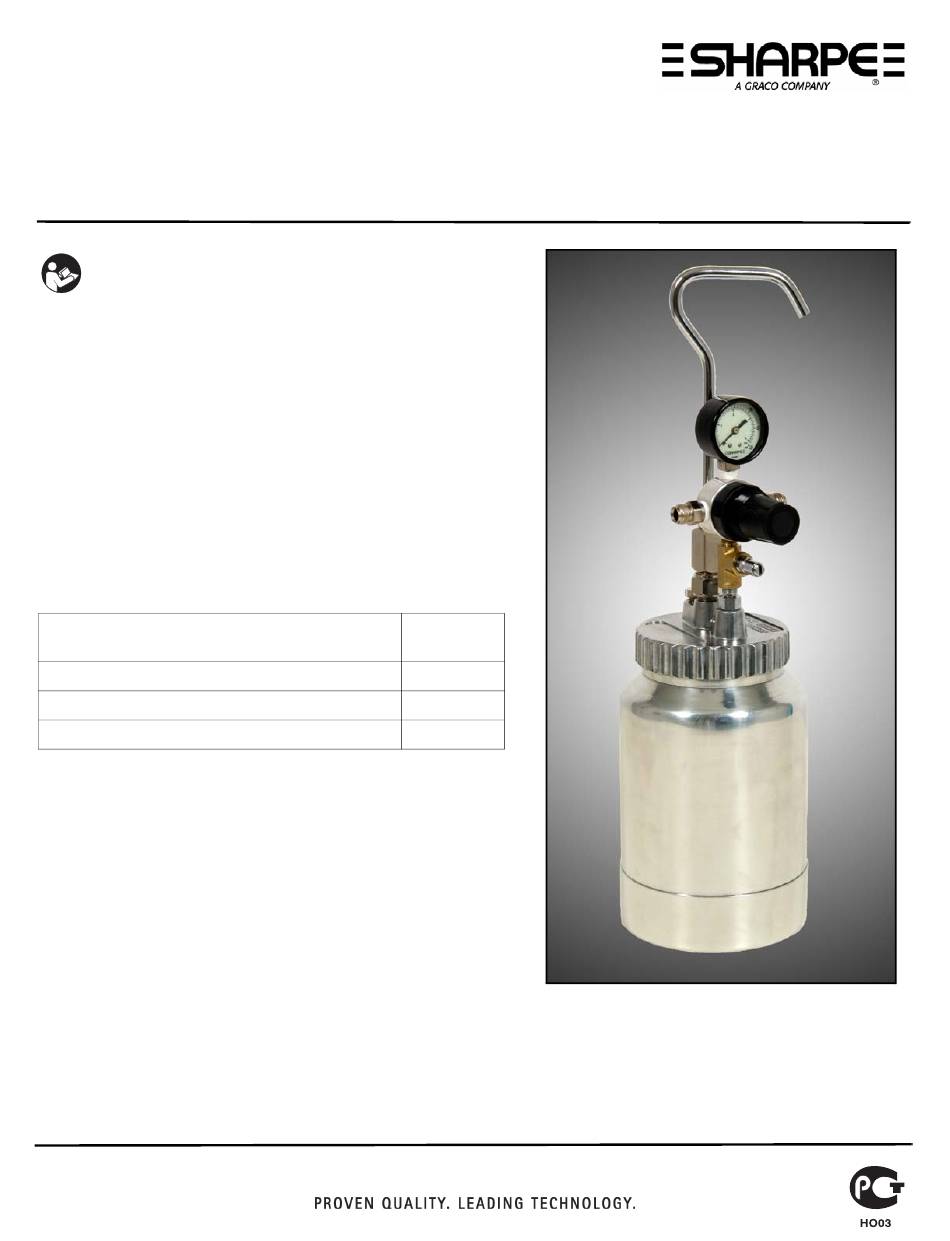

Instructions/Parts
MODEL 7004
2-QUART PRESSURE CUP
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
DESCRIPTION
The Model 7004 2-quart pressure cup is designed to be used with
any pressure feed manual spray gun where more than one quart
of material is to be used. Pressure cups will provide a better
degree of control over atomizing air and fluid pressure than
siphon feed equipment. The Model 7004 will enable you to spray
a wider range of refinish materials and has a full 2-quart capacity
when needed.
SPECIFICATIONS
Max. regulated cup pressure
(fluid pressure)
Max. air inlet pressure
Relief valve release
Weight (empty)
Hose connections:
Air 1/4 in. NPS (M)
Fluid 3/8 in. NPS (M)
Regulator Assembly: Controls pressure of material in cup 0-50
psi.
Pressure Release Valve: Manual operation, allows air pressure to
bleed from cup.
50 psi
160 psi
40 psi
3 lbs 3 oz
311417D
FOR PRODUCT INFORMATION CALL:
1 (800) SHARPE 1
MODEL 7004
2-QUART PRESSURE CUP
ENG

Advertisement

loading

Related Manuals for Graco Sharpe 7004

Summary of Contents for Graco Sharpe 7004

  • Page 1 Instructions/Parts MODEL 7004 2-QUART PRESSURE CUP 311417D FOR PRODUCT INFORMATION CALL: 1 (800) SHARPE 1 Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. DESCRIPTION The Model 7004 2-quart pressure cup is designed to be used with any pressure feed manual spray gun where more than one quart of material is to be used.
  • Page 2 2-QUART PRESSURE CUP • Air pressure in the cup never to exceed 50 PSI. • Never tamper with the relief valve. The relief valve limits the maximum air pressure entering the cup. If the relief valve does not work properly, over-pressurization may occur and cause the cup to rupture or explode. •...

  • Page 3: Operation

    2-QUART PRESSURE CUP OPERATION Cup Air Outlet Cup Pressure 1. Pull out regulator knob and turn fully counter-clockwise. Open Regulator release valve on cup lid (counter-clockwise). Knob 2. Open lid and fill cup with desired sprayable material. Pressure 3. Close lid and seal by turning clockwise hand-tight. Release Valve 4.

  • Page 4: Troubleshooting

    2-QUART PRESSURE CUP TROUBLE SHOOTING CONDITION CAUSE CORRECTION Leak at regulator valve assy. Replace. Gauge registering wrong. Replace. Excess pressure in cup. Relief valve setting too high. Replace. Valve spring broken or distorted. Replace. Diaphragm damaged. Replace. Check valve stuck shut. Clean or Replace.
  • Page 5 2-QUART PRESSURE CUP MODEL 7004 PARTS LIST REF. NO. PART NO. DESCRIPTION 8215 FLUID PRESSURE GAUGE 9985 FLUID PRESSURE REGULATOR U42000 FLUID TUBE U42001 CUP LID 120122 LID FITTING U42002 LID GASKET (pkg of 5) U42003 VALVE/FITTING KIT CHECK VALVE ASSEMBLY PRESSURE RELIEF VALVE PRESSURE RELEASE VALVE INLET FITTING...
  • Page 6 All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. Original instructions. This manual contains English. MM 311417 SHARPE MANUFACTURING •...
