H3C SecPath F5000-A5 NSQ1MPUA0 Card Manual
1 Appearance

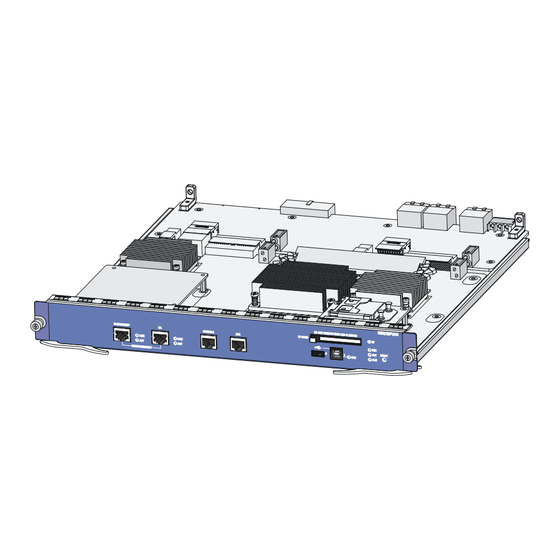

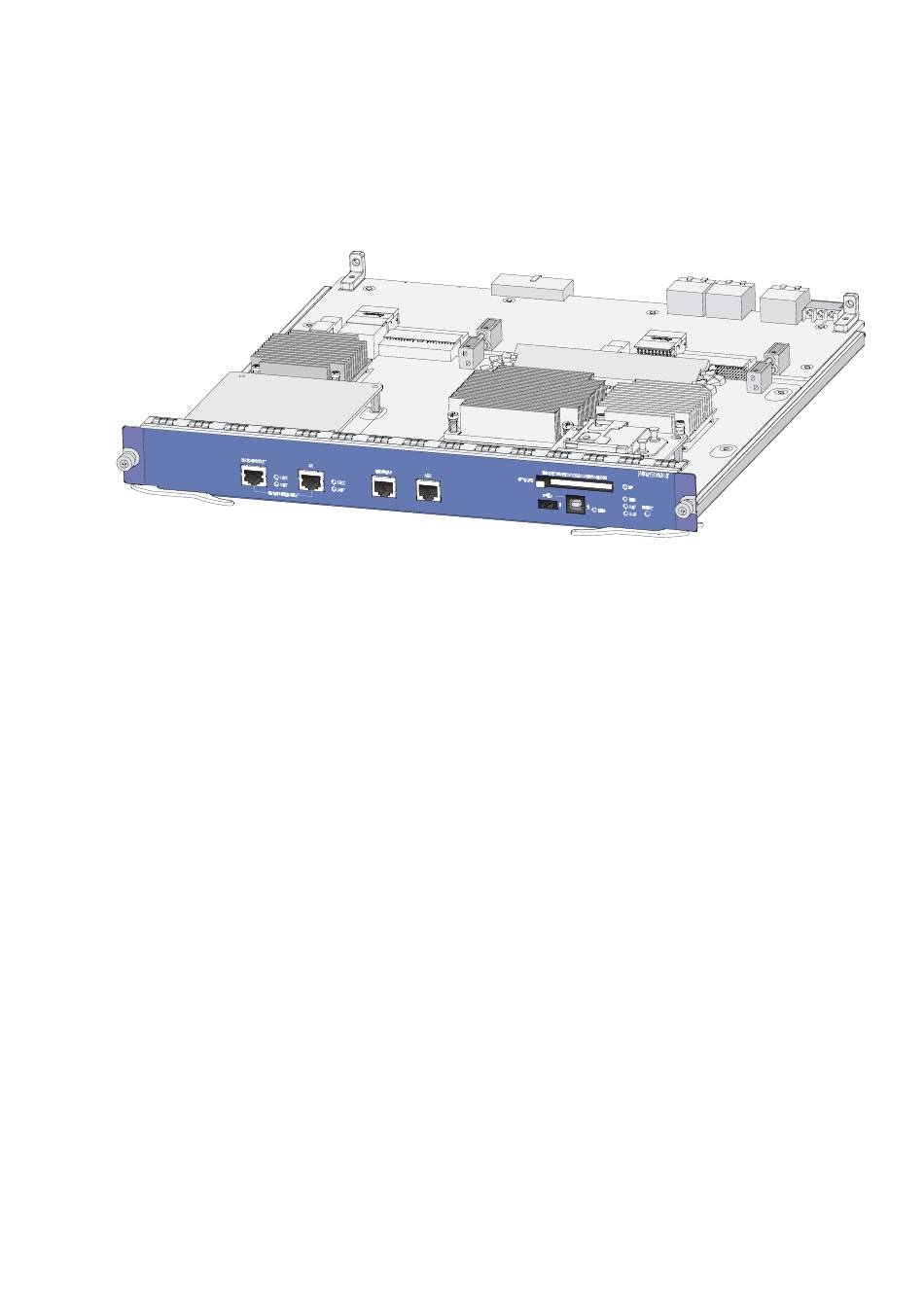

Figure 1 Appearance of the NSQ1MPUA0
2 Specifications
The NSQ1MPUA0 works with other service cards to provide the firewall feature. In addition, the
NSQ1MPUA0 is used to upgrade and maintain the firewall software.
The NSQ1MPUA0 provides, from left to right on its front panel, one management Ethernet port, one HA
port, one Console port, one AUX port, one external CF card slot, two USB interfaces, LEDs, and one
Reset button.
i
BOM:3123A13Q
