H3C LSPM6G4T6P interface card
Introduction
Overview
The LSPM6G4T6P interface card provides four 10/100/1000Base-T
autosensing Ethernet ports and six SFP ports. 10/100/1000Base-T
autosensing Ethernet ports 5T and 6T form a combo interface with SFP
ports 5S and 6S, respectively.

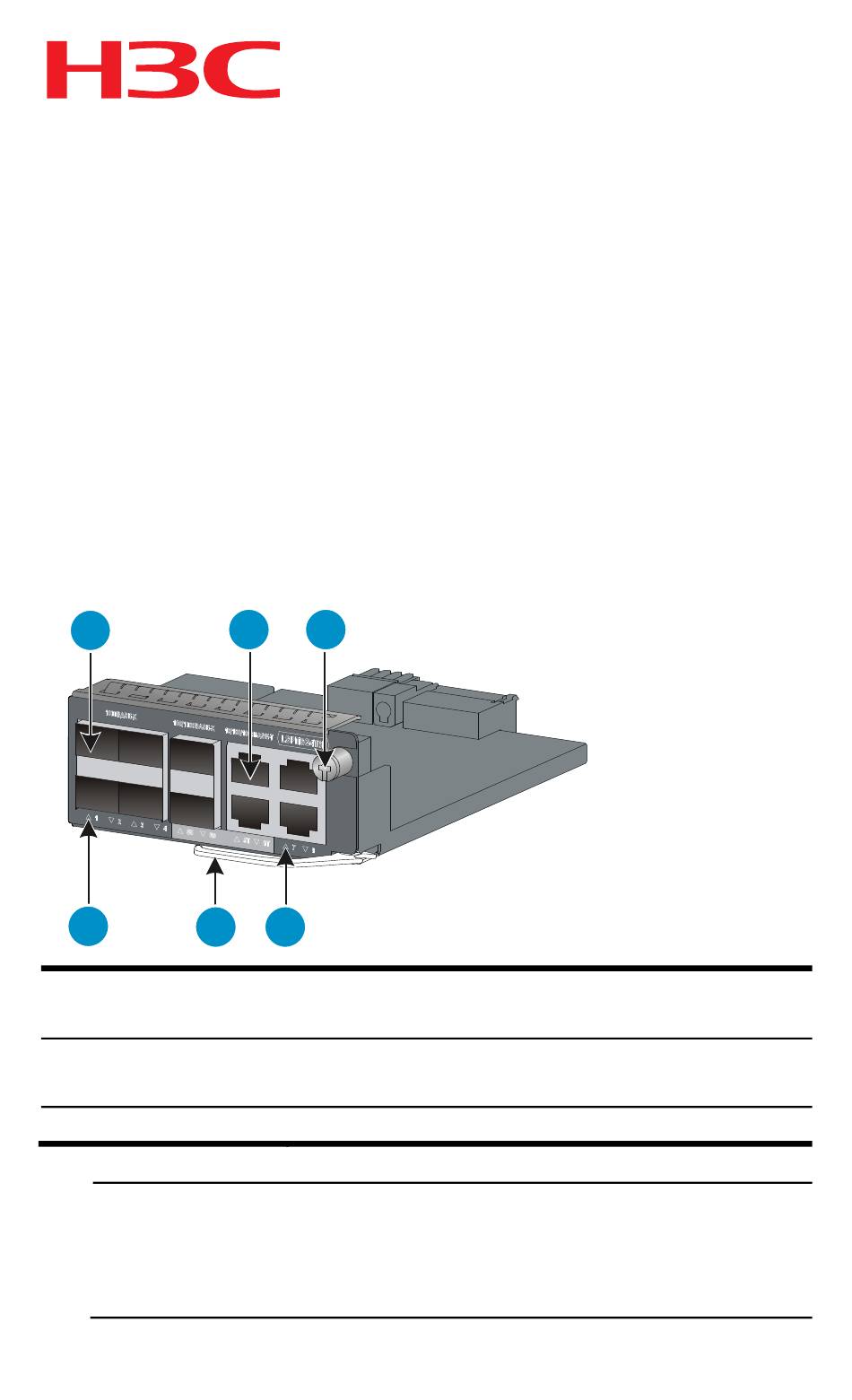

Figure 1 LSPM6G4T6P interface card
1
6
(1) SFP port
(3) Captive screw
(5) Ejector lever
NOTE:
The H3C switch models that the LSPM6G4T6P interface card is
applicable to might change over time. For the most recent list of
applicable switch models, contact H3C Support or marketing staff.
user manual-6PW103
2
3
5
4
(2) 10/100/1000Base-T autosensing
Ethernet port
(4) 10/100/1000Base-T autosensing
Ethernet port LED
(6) SFP port LED
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSPM6G4T6 and is the answer not in the manual?

Questions and answers

Related Manuals for H3C LSPM6G4T6

Summary of Contents for H3C LSPM6G4T6

  • Page 1 Ethernet port LED (5) Ejector lever (6) SFP port LED NOTE: The H3C switch models that the LSPM6G4T6P interface card is applicable to might change over time. For the most recent list of applicable switch models, contact H3C Support or marketing staff.
  • Page 2 SFP ports You can install the following transceiver modules and cables in the SFP ports on the card: GE SFP transceiver modules in Table 1 Table • FE SFP transceiver modules in Table 3 Table • SFP cables in Table •...
  • Page 3 Cable/fiber Modal Max transmission Module diameter bandwidth distance (μm) (MHz × km) SFP-GE-LH40-S Single-mode, 40 km (24.86 miles) M1310 9/125 SFP-GE-LH40-S Single-mode, 40 km (24.86 miles) M1550 9/125 SFP-GE-LH70-S Single-mode, 70 km (43.50 miles) M1550 9/125 SFP-GE-LH80-S Single-mode, 80 km (49.71 miles) M1550 9/125 SFP-GE-LH100-...
  • Page 4 NOTE: As a best practice, use H3C SFP transceiver modules and SFP cables for the SFP ports on the card. The H3C SFP transceiver modules and SFP cables available for the SFP ports are subject to change over time. For the most recent list of H3C SFP transceiver modules and SFP cables available for the SFP ports, contact H3C Support or marketing staff.
  • Page 5 For more information about H3C SFP transceiver modules and SFP cables, see H3C SFP/SFP+/XFP/SFP28 Transceiver Modules and Cables Installation Guide at www.h3c.com.hk. 10/100/1000Base-T Ethernet interfaces Table 6 10/100/1000Base-T Ethernet interface specifications Item Specification Connector RJ-45 10 Mbps, full duplex •...
  • Page 6 LED status Description No transceiver module is installed in the port, or no link is present on the port. Table 8 10/100/1000Base-T interface LED description LED status Description The port is operating at 1000 Mbps, and a link is Steady green present on the port.

  • Page 7: Installing The Card

    Flat blade screwdriver. • ESD wrist strap. • The installation tools are not provided with H3C devices. Prepare them yourself. Installing the card Use the Phillips screwdriver to remove the screw on the filler panel in the target slot, as shown by callout 1 in Figure Keep the removed screw secure for future use.

  • Page 8: Removing The Card

    Figure 3 Installing the card Removing the card CAUTION: Before you remove the card, remove the cable from it. • If you are not to install a new card after removing the original one, • install the filler panel in the slot to prevent dust and ensure good ventilation in the device.

  • Page 9: Verifying The Installation

    Co., Ltd. provides customers with comprehensive technical support and service. If you purchase the products from the sales agent of New H3C Technologies Co., Ltd., please contact our sales agent or technical personnel. Website: http:// www.h3c.com.hk E-mail: service@h3c.com BOM: 3101A0K3...
