MODELS: ZMD-M90AS , ZMD-E42AS

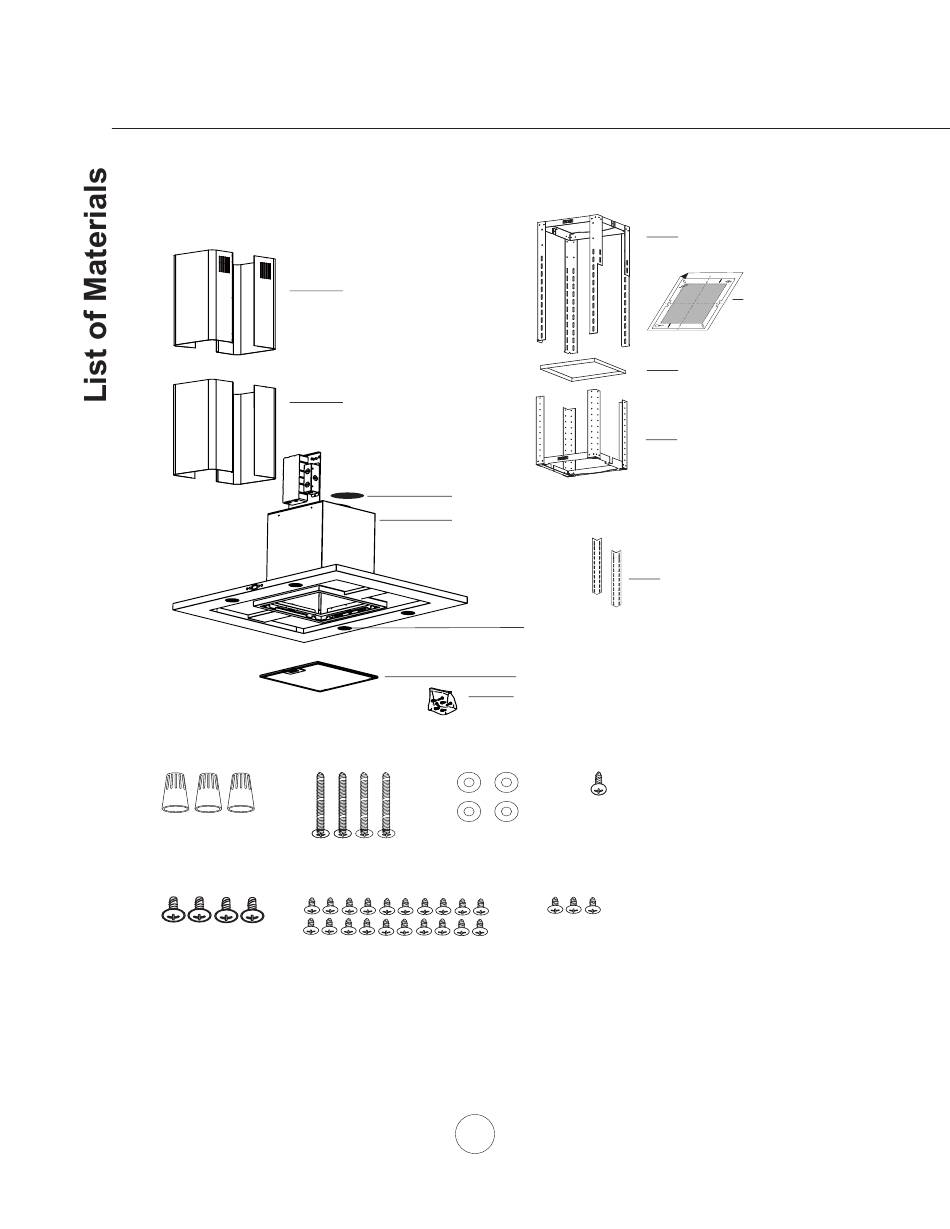

PARTS SUPPLIED

HARDWARE PACKAGE CONTENTS

(3) Wire Nuts
(4) M6 x 1-1/2"
wood screws
(4) 3/16 x 3/8 (20) M4 x 8 pan-head
machine screws
sheet metal screws

PARTS NOT SUPPLIED

- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Duct cover extension accessory
- Recirculating kit accessory
2 - Top duct covers
2 - Bottom duct covers
1 - 8" round damper (pre-installed)
1 - Hood body w/ blower (pre-installed)
4 - 3W LED lights
1 - Aluminum mesh filter
1 - Hardware package
(4) ø12 OD / ø5
ID Washers
4
www.zephyronline.com
1 - Top support frame
Front of Hood
C L
Cut-Out Shaded Area
A
1 - Support frame bracket
1 - Bottom support frame
2 - Lateral support brackets
(1) M4 x 12
safety screw
(3) M4 x 8 truss head
sheet metal screws
B
1 - Paper ceiling
template
