1

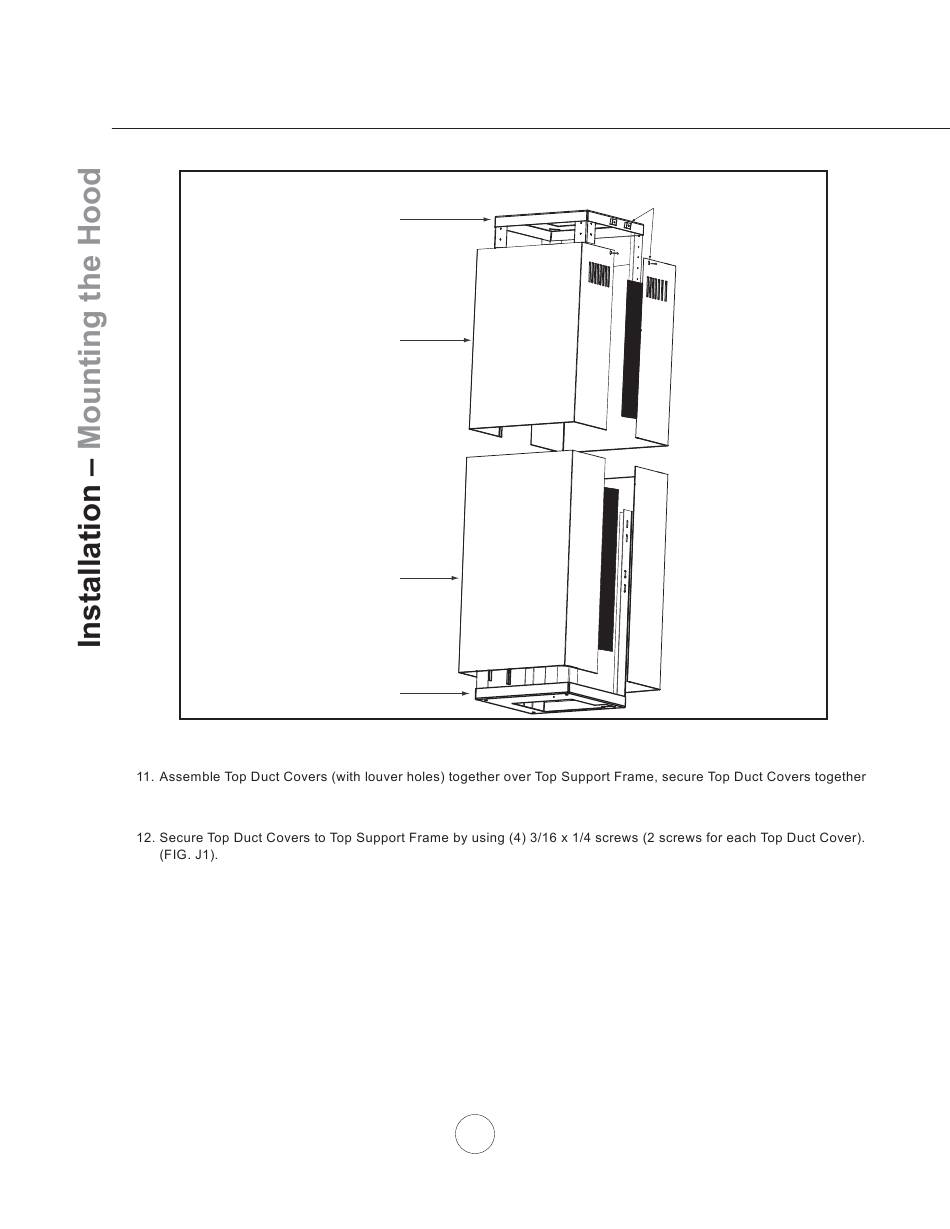

Top Support Frame
Top Duct Covers
Bottom Duct Covers
Bottom Support Frame
FIG. J
by magnetic strips. Note: If using hood in ductless recirculating mode you must install the air diverter plate to the Top
Support Frame prior to assembling the duct covers. Turn to page 13 for more details.
13. Assemble Bottom Duct Covers together over Top Duct Covers and secure together by magnetic strips. Bottom Duct
Covers should rest on top of the Hood Body.
12
