Installation

The four adjustable rubber feet steady the Truffle subwoofer
on any flat horizontal surface.
In case of installations on vertical or tilted surfaces, or to
permanently secure the loudspeaker to a surface, a pair of
dedicated brackets is provided.

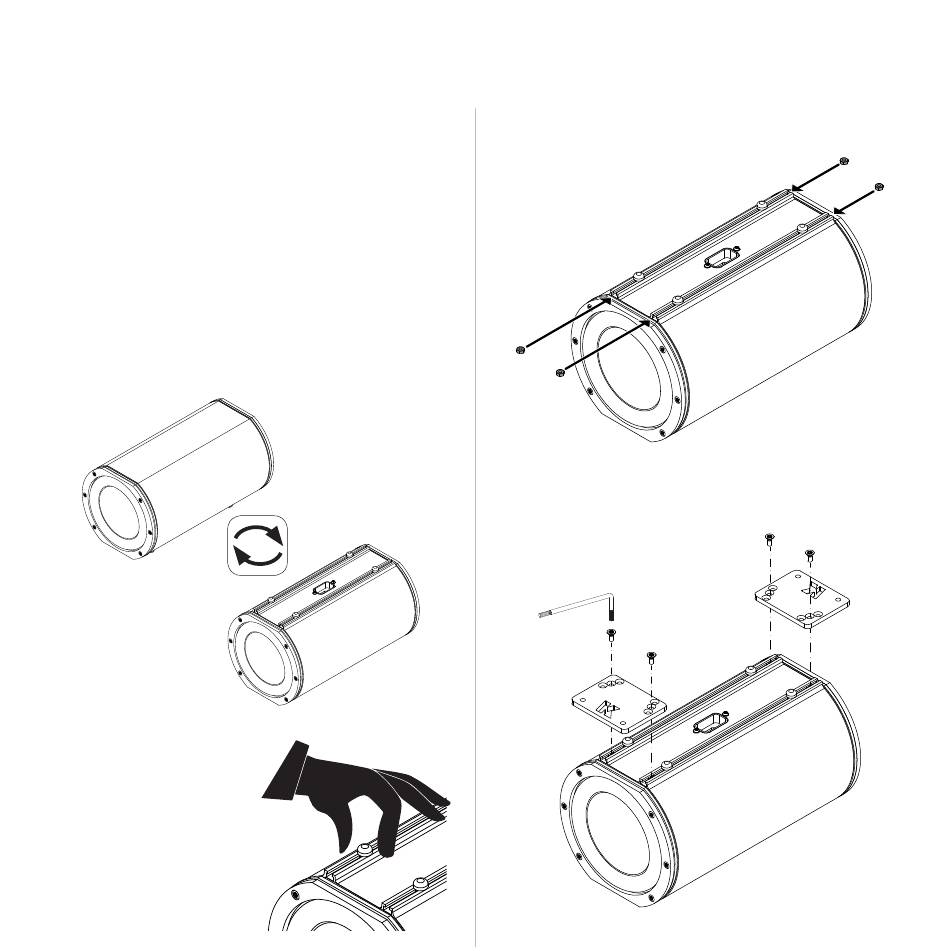

The following procedure shows how to assemble the brackets
on the Truffle-KTR25. The procedure is the same for the
KTR24 and KTR26.
1. Turn the Truffle upside-down.
2. The rubber feet may be
removed or left in place
without affecting the
assembly. In order to
remove a rubber foot,
unscrew and remove the
nut from the metal profile.
3. Slot the four M4 nuts on the metal profiles.
4. Use the M4x10 mm screws to fasten the surface mount
brackets on both sides of the subwoofer.
Torx T20
