Truffle
User Guide
6

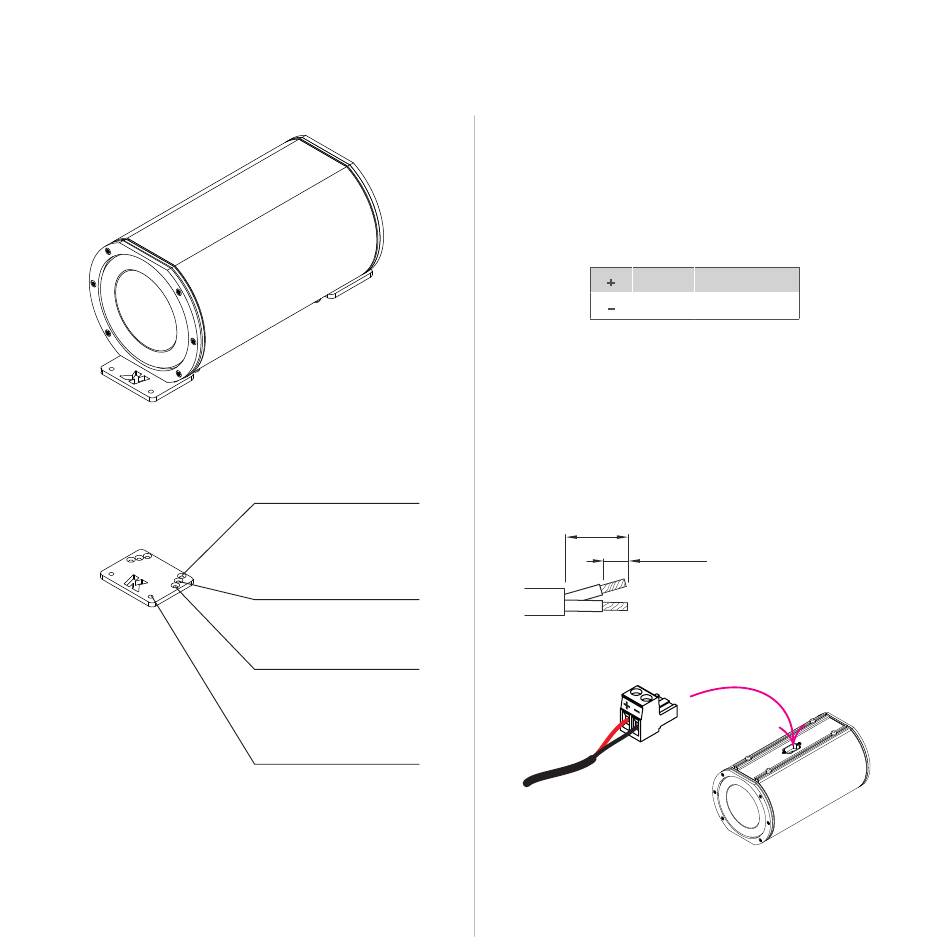

Hole for assembly on KTR24
Hole for assembly on KTR25
Hole for assembly on KTR26
Hole for surface mounting

Connecting

The Truffle subwoofer features an euroblock 2 pin Phoenix
inlet for easy connectivity and link.
Caution must be taken when connecting the loudspeaker
cable to the flying connector to match the signal polarity:
+ HOT
– COLD
If a label with signal polarity is not present on the flying
connector, please refer to the label on the loudspeaker
rear panel.
For a cable run of up to 5 m (16.4 ft) use a wire gauge of
0,75 mm (18 AWG) at least.
2
For longer cable runs a wider gauge is recommended.
12 mm (0.5 in)
6 mm (0.25 in)
red wire
black/blue wire
