ZS880
LINEAR SHOWER DRAIN INSTALLATION INSTRUCTIONS
®
Dimensional data (inches and [mm]) are subject to manufacturing tolerances and change without notice.
Introduction
The Zurn ZS880 Stainless Steel Linear Shower Drain incorporates a simple approach to bathroom shower design, when
compared to traditional point-drain applications. The linear shower drain expands the floor surface area for water collection
and eliminates the need for multiple slope construction of the floor. When handling and installing the ZS880 linear drain,
please pay close attention to the following guidelines and warnings:
• Please handle all stainless steel material with caution. The manufacturing process used in making this
product can inadvertently produce sharp edges, which may result in injury if handled or used improperly.
• Please adhere to all torque specification requirements outlined within these instructions when tightening
hardware during installation.
• Do not apply corrosive chemicals to this product which may alter the appearance and surface finish.
• All grating provided with this product is rated for light-duty applications, per ASME Standard A112.6.3
specifications.

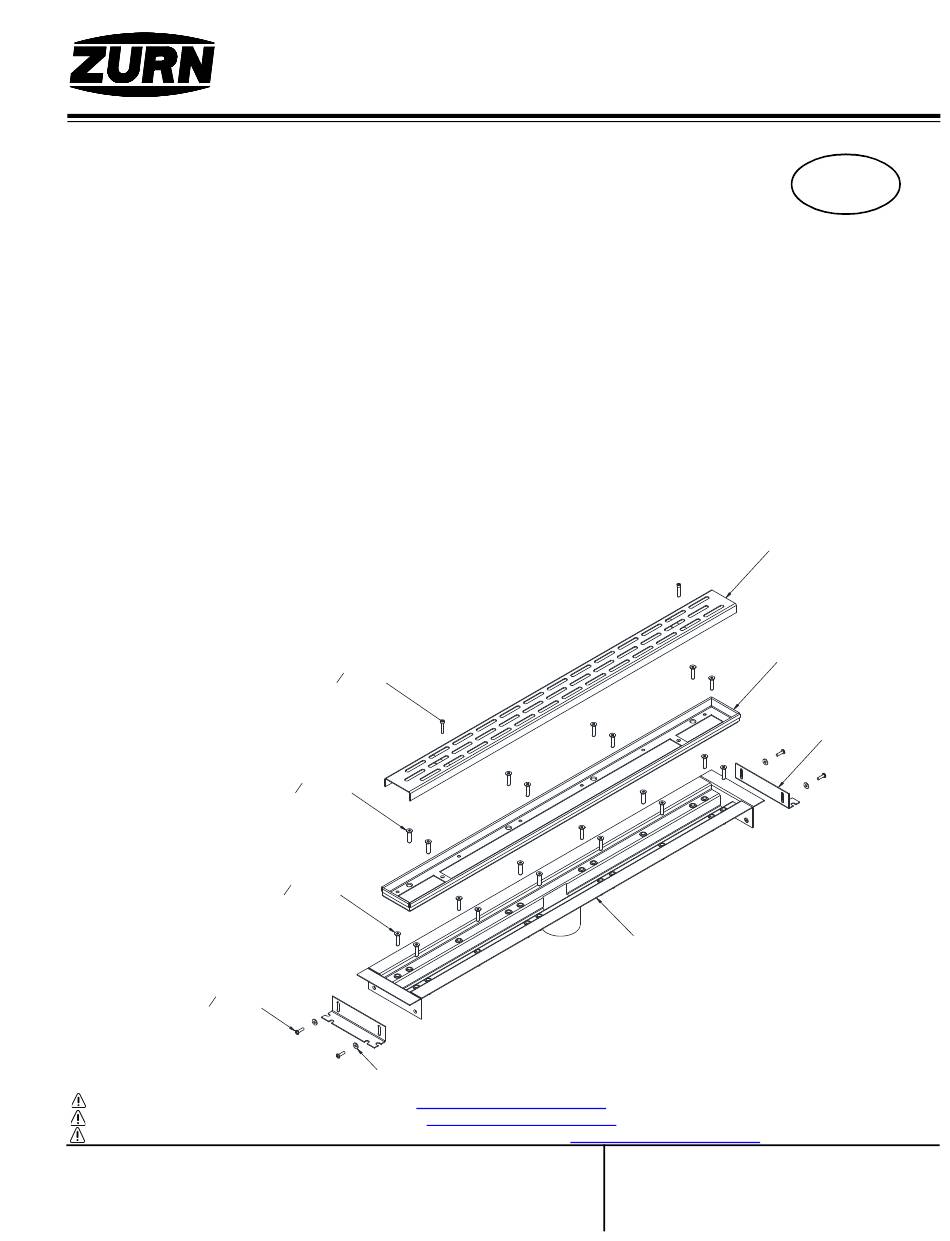

Drain Components
GRATE SECURING SCREW
FRAME SECURING SCREW
(#10-24 X
LEVELING SCREW
(#10-24 X
ADJUSTABLE LEG SCREW
1
(#6-32 X
PHMS)
2
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC
|
Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada
|
Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com
3
(#6-32 X
SHCS)
4
7
FHHSS)
8
7
FHHSS)
8
#6 SS WASHER
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
SHOWER CHANNEL ASSEMBLY
www.P65Warnings.ca.gov
Rev.
-
Date:
4/23/2018
C.N. No.
139950
Form No. FT1009
PAT. NO.
8,347,424
GRATE
TILING EDGE FRAME
ADJUSTABLE LEG
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for ZURN ZS880
Summary of Contents for ZURN ZS880
- Page 1 The linear shower drain expands the floor surface area for water collection and eliminates the need for multiple slope construction of the floor. When handling and installing the ZS880 linear drain, please pay close attention to the following guidelines and warnings: •...
- Page 2 Take caution to ensure that the membrane is adequately sealed to the sealing flange all around the drain body channel. The membrane can be glued directly to the surface of this flange. Zurn Industries, LLC Specification Drainage Operation Rev.
- Page 3 To prevent damage to the channel inserts, DO NOT over-tighten the leveling screws lower than the preset screw height furnished. Zurn Industries, LLC Specification Drainage Operation Rev.
- Page 4 Once the screw threads are fully engaged hand-tight, there is no need to apply excess torque to keep the grate secured. GRATE SECURING SCREWS TAPPED CROSSBAR IN FRAME Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date: 4/23/2018...
- Page 5 WATERPROOF MEMBRANE THINSET CONCRETE SUBFLOOR THINSET/ ADHESIVE FRAME LEVELING SCREWS DRAIN OUTLET Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date: 4/23/2018 In Canada Zurn Industries Limited C.N. No.
- Page 6 ENTRANCE ENTRANCE Back of the Shower Location Entrance Way (Curb or Curbless) ENTRANCE ENTRANCE Multi-Unit Shower Room Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date: 4/23/2018 In Canada Zurn Industries Limited C.N.
