Sensor-Operated Battery-Power or Plug-in
Lavatory Faucets
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from
the date of purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided
we are notified in writing of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been
properly maintained and used in accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or
damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replace-
ment of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his intended
use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of
merchantability is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantabi-
lity is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights stated in our
catalogs and lists are approximate and are not guaranteed.
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
NOTE: The information in this manual is subject to change at any time without notice. Installations may
be performed at different times of construction by different individuals. For this reason, these instructions
should be left on-site with the facility or maintenance manager.
Rev. E | Date: 12/16/22 | C.N. No. 144945 | Prod./Dwg. No. FV796
Patent zurn.com/patents
US 1.855.ONE.ZURN CANADA 1.877.892.5216
ZURN.COM

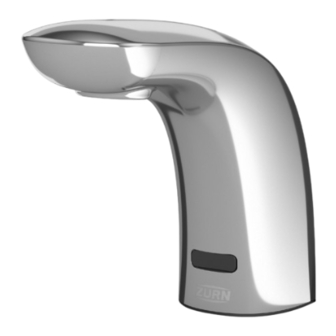

Cumberland Series™
Faucet
Sensor-Operated Lavatory Faucets for
Battery or Plug-In Installations.
Installation, Operation, Maintenance,
and Parts Manual
Z6956-XL
Cumberland Series™
LIMITED WARRANTY
Advertisement
Related Manuals for ZURN HYDRO-X POWER Cumberland Series
Summary of Contents for ZURN HYDRO-X POWER Cumberland Series
- Page 1 For this reason, these instructions should be left on-site with the facility or maintenance manager. Rev. E | Date: 12/16/22 | C.N. No. 144945 | Prod./Dwg. No. FV796 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
- Page 2 This Page Intentionally Left Blank...
-
Page 3: Specifications
P6900-AT-MAG Overview: Zurn® Cumberland Series™ Faucets features multiple spout designs in a standard polished chrome finish with one piece heavy duty cast brass spouts and advanced electronic components and feature sets. Sophisticated automatic user detection ensures the user does not need to touch the faucet and helps deliver optimum water savings. - Page 4 NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing an existing device. Clean the faucet basin and clear away debris. Flush all supply lines before connecting the faucet. Failure to do so may result in debris clogging the inlets and/or internal control and mixing valve Spout Installation - Step 1 1.2.
- Page 5 2.3. Open battery module using supplied Allen wrench and install 2.3a. Optional ACA installation: Connect Y-adaptor to ACA supplied batteries in the electronics module. adaptor as shown. 2.3b. Optional HW6 (Hardwired 6V) version: Connect supplied inline connector and hardwire adapter. When securing the CWB wires to the screw terminals on HW6 unit, the BLACK WITH DASHED MARKINGS should be connected to the Positive (+) terminal, and the SOLID BLACK wire should be connected to the...
- Page 6 2.7. Connect sensor inline connector to sensor cable from spout. Sensor Range Adjustment (All configurations when necessary) 1. Ensure that the faucet is installed and powered has been applied. 2. Place and hold the Magic Magnet (optional accessory: P6900-AT-MAG) in the right hand corner of the sensor as shown. An indicating light will activate when the magnet is correctly positioned.
- Page 7 Adjustable modes and features selection: All switches shown in default mode. To adjust features from default configuration, you must remove the battery tray. Once battery tray is removed you will see the switches. 1 2 3 4 5 6 7 8 Switch Position: Purge (Hours) Disable:...
-
Page 8: Troubleshooting Guide
If not, install assembles to the faucet shank. washer. If a washer is damaged, replace with new. For further assistance with troubleshooting visit http://www.zurn.com Care and Cleaning Instructions: • Do not use any abrasive or chemical cleaners to clean the faucets. - Page 9 Z6956-XL Parts List P6000-HW6 WIRING FRAME/SAFETY GROUND BLUE (-) GREEN/YELLOW WHITE (NEUTRAL) BLACK (LINE) RED (+) Item Description Product No. Item Description Product No. Z6956 Spout Assembly with Sensor P6956-XL-CV-1 -HW6 Power Supply P6900-HW6 Z6956 Spout Base Gasket P6956-XL-42 -CWB Pigtail P6900-CWB Mounting Kit P6900-43...
- Page 10 This Page Intentionally Left Blank...
- Page 11 This Page Intentionally Left Blank...
- Page 12 Rev. E | Date: 12/16/22 | C.N. No. 144945 | Prod./Dwg. No. FV796 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
