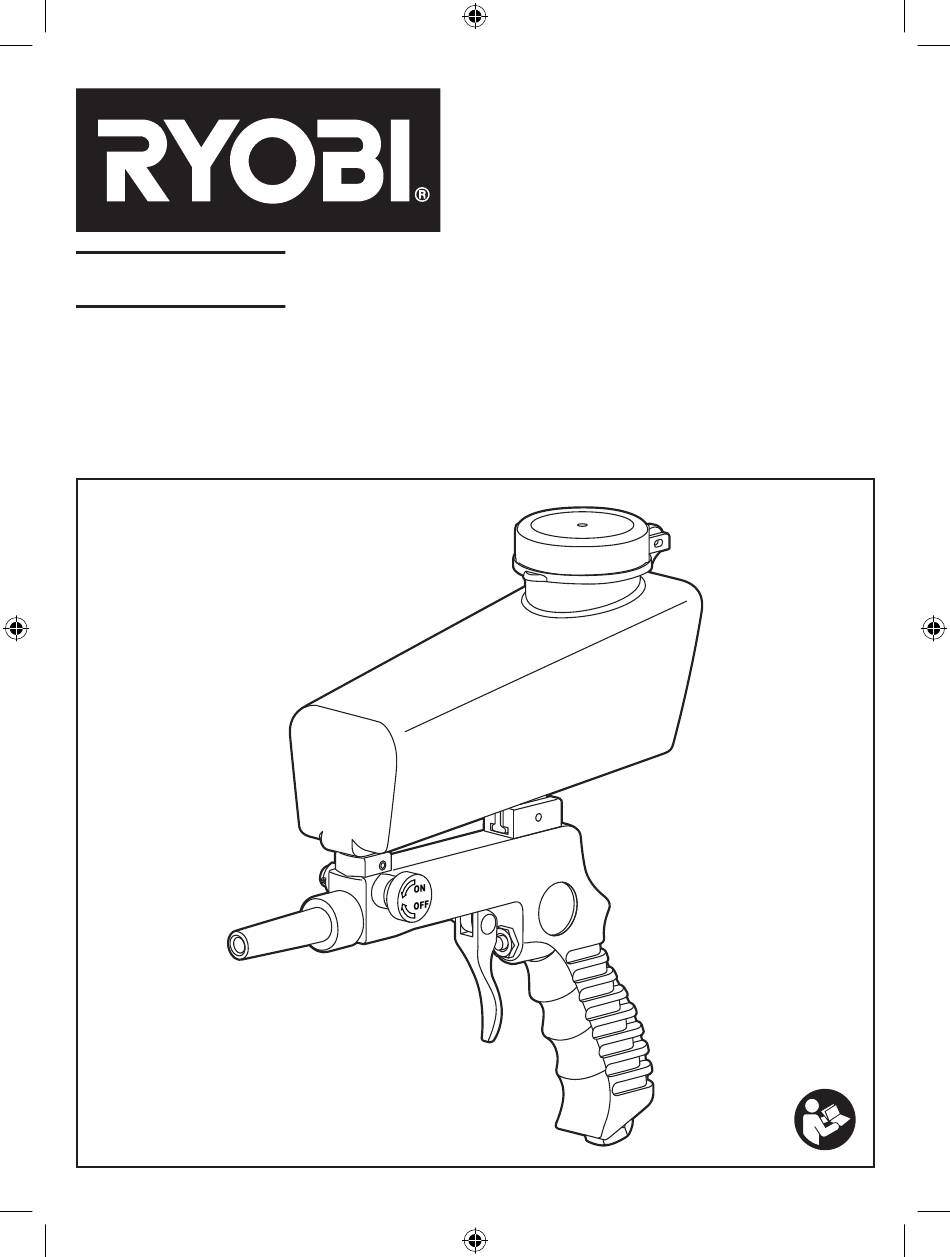

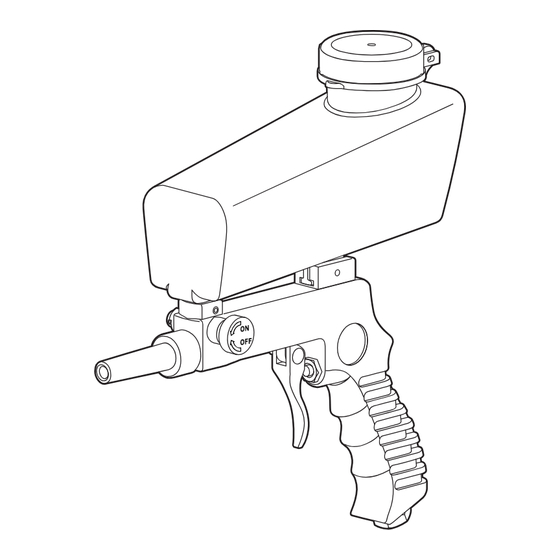

  • Page 1 RA-SBG-B AIR SAND BLASTING GUN OpeRATOR'S MANUAL ORIGINAL INSTRUcTIONS...
  • Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
  • Page 3 DeScRIpTION 1. Nozzle 5. Cap 9. Air hose (not included) 2. Regulator 6. Hopper 10. Sanding abrasive (not included) 3. Trigger 7. NITTO style coupler 4. Air inlet 8. Quick connector (not included) Fig.1 Fig.2 Fig.3 Fig.4 Quick Quick connector connector Filter Tool...
  • Page 4: General Safety Warnings

    positions not to allow counteracting of normal or GeNeRAL SAfeTy wARNINGS unexpected movement of the tool. ■ For multiple hazards, read and understand the safety ■ When using the product to perform work-related instructions before installing, operating, repairing, activities, the operator can experience discomfort in maintaining, changing accessories on, or working the hands, arms, shoulders, neck or other parts of the near the product.
  • Page 5 ■ Where dust or fumes are created, the priority shall be check for damaged or loose hoses and fittings. to control them at the point of emission. ■ Cold air shall be directed away from hands. ■ Use appropriate respiratory protection when using the ■...
  • Page 6: Specifications

    It is easy to underestimate the vibration load if Air sand blasting gun the compressed air tool is used regularly in a certain manner. Model RA-SBG-B Average air consumption 330 L/min @ 6.3 bar (90 psi) INTeNDeD USe Maximum working pressure 6.3 bar (90 psi)
  • Page 7: Operation

    NOTe: the air hose must be long enough to reach of the nozzle, do not point the nozzle downward. the work area with enough extra length to allow free ■ Connect the air hose to the quick coupler attached to movement while working.
  • Page 8 wARNING Wear ear protection. To prevent serious personal injury from product failure, Do not use damaged equipment. If abnormal noise, vibration or air leak occurs, stop using the product and have the product inspected and corrected before use. Wear safety gloves Wear EN ISO 14877 approved type 3 ■...
  • Page 9: Troubleshooting

    TROUBLeShOOTING pROBLeM cAUSe SOLUTION The product will not start. 1. Compressor is not turned on. 1. Turn compressor on. 2. Air line is not connected 2. Check that air line is connected properly. properly. Blast flow surges / Excessive 1. Air pressure is too low. 1.
  • Page 10: Parts List

    pARTS LIST Description Description Description Description Gun Body Assembly Trigger O-ring 2*6 18.1 Hopper Gun Body Spring 0.75*6*34 Nozzle 18.2 Hopper Cover Adapter O-ring 2*4 O-ring 2*13 18.3 Sponge Strainer O-ring 1.5*3 Ring Nut Screw 4*6 Air Inlet Assembly Valve Stem O-ring 2*5 Coupler NPT 1/4 Air Inlet NPT 1/4...
  • Page 11 NITTO is a registered trademark owned by Nitto Kohki Co., Ltd...
