Summary of Contents for Ryobi RAP1500G

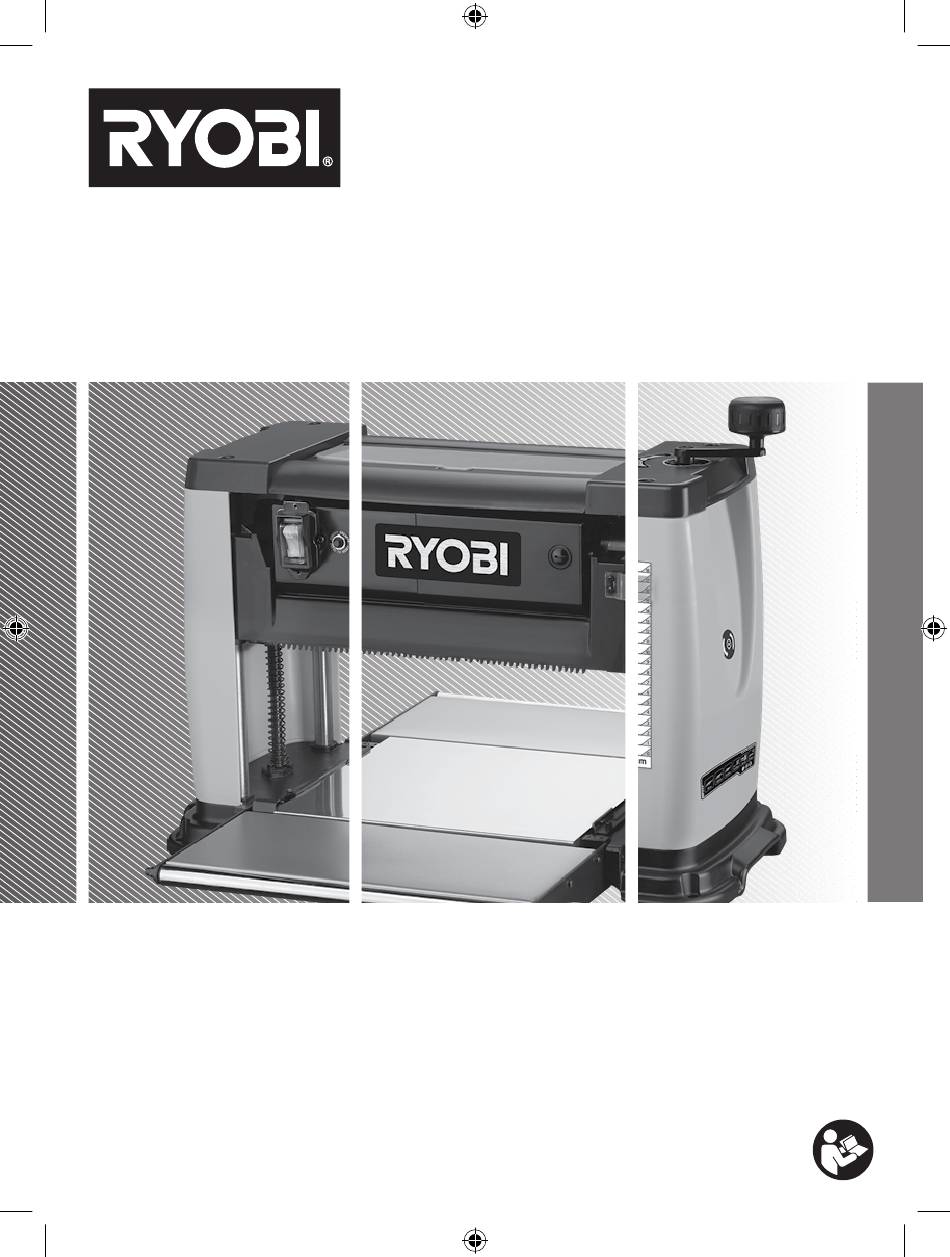

  • Page 1 FRONT PAGE RAP1500G...
  • Page 2 Fig. 1 Fig. 3 Fig. 2 4 mm 5 mm Fig. 4 Original Instructions...
  • Page 3 50.8 2-Ø9 Ø9 Ø15 Mounting Planer hole base m8 screw hole Fig. 6 Fig. 5 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Original Instructions...
  • Page 4 Fig. 14 Fig. 13 34 mm 20 mm 5 mm 33 mm 135º 33 mm 100 mm 3 mm 120º Fig. 16 15 mm 70 mm 30 mm 100 mm Fig. 15 Fig. 17 ø 50mm ø 50mm Fig. 18 Fig.

  • Page 5: Intended Use

    create sparks which may ignite the dust or fumes. IMPORTANT! ■ Keep children and bystanders away while It is essential that you read the instructions in operating a power tool. Distractions can cause you this manual before assembling, operating, and to lose control.

  • Page 6: Planer Safety Warnings

    the power tool in unexpected situations. SERVICE ■ Dress properly. Do not wear loose clothing or Have your power tool serviced by a qualified ■ jewellery. Keep your hair and clothing away from repair person using only identical replacement moving parts. Loose clothes, jewellery or long hair parts.

  • Page 7: Residual Risks

    If the power supply cord is damaged, it must Thickness planer with anti- be replaced only by the manufacturer or by an kickback authorised service centre to avoid risks. Model RAP1500G WARNING Input 220-240 V 50 Hz Never conduct the following operations: 1,500 W, 6.25...

  • Page 8: Operation

    overload protection. If an overload occurs, the switch Hex keys will pop out. If this happens, wait several minutes and press the switch to reset the machine. Open end wrench ADJUSTING DEPTH OF CUT INTENDED USE See figure 9. ■ Planing wood Do not use this product in any other way other than WARNING...
  • Page 9 ■ Remove the dust chute by removing the four ■ Unplug the tool. hexagonal socket head cap screws on it. ■ Connect the nozzle of the dust collection system to ■ Loosen the lock bar and blade by turning the forcing the dust chute.

  • Page 10: Maintenance

    WARNING Class II tool, double insulation Never plane more than 3 mm in one pass and never attempt to plane a board under 127 mm (5") in length. Always wear a protective face shield. Wear ear protection MAINTENANCE Always wear eye protection LUBRICATION ■...

  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Grain is fuzzy. 1. Planing wood with high moisture 1. Dry the wood. content. 2. Blades are dull. 2. Sharpen the blades. Grain is torn. 1. The cut is too heavy. 1. Review proper depth of cut. 2.
  • Page 12 BACK PAGE Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand 20240521v5...
