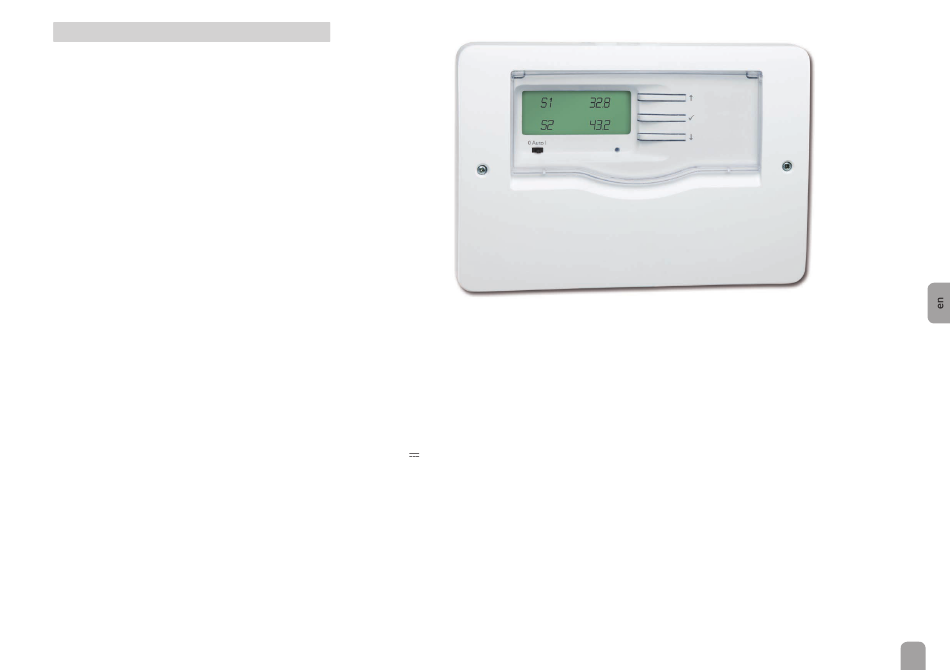

Overview - Resol EM Extension module Mounting, Connection, Operation

1

Overview

• Extension of the controller by
6 sensor inputs and 5 relay outputs
• 7-segment LC display
• Function control
• Slide switch 0 Auto I
• RESOL VBus interface
®
Technical data:
Inputs: 6 Pt1000, Pt500 or KTY temperature sensors
Outputs:
4 semiconductor realys and 1 potential-free relay
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
4 (1) A 24 V / 240 V~ (potential-free relay)
Total switching capacity: 4 A 240 V~
Power supply: 100 ... 240 V~ (50 ... 60 Hz)
Supply connection: type Y attachment
Power consumption: < 1 W (standby)
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus
®
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting
Indication / Display: LC display, 7-segment display
Operation: 3 push buttons and 1 slide switch at the
front of the housing
Ingress protection: IP 20 / EN 60529
Protection class: II
Ambient temperature: 0 ... 40 °C
Pollution degree: 2
Dimensions: 144 × 208 × 43 mm
