- Page 1 RESOL VA32 Mounting Connection Manual control Maintenance Examples Thank you for buying this RESOL product. Please read this manual carefully to get the best performance from this unit. www.resol.de...
-
Page 2: Table Of Contents
Declaration of conformity We, RESOL Elektronische Regelungen GmbH, D-45527 Hattingen, declare under our sole responsibility that our product RESOL VA32 complies with the follo- wing standards: EN 55 014-1 EN 60 730-1 According to the regulations of the above directives, the product is labelled with... -
Page 3: Technichal Data And Function Survey

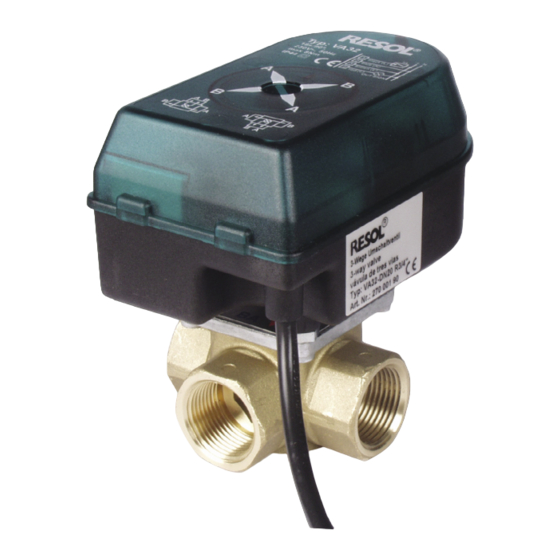

RESOL VA32 Application area: The 3-port motor-driven valve VA32 is used in solar and heating systems, in which smaller parts of the systems can be controlled separately or single equipment can be swit- ched on or off. The valve is equipped with an emergency... -
Page 4: Installation
RESOL VA32 1. Installation advice Important advice The installation of the valve must be carried out correspon- In order to attain the maximum operating safety and relia- ding to the approved technical regulations. Rests of sealing bility, it is recommended to flush the system and to insert material and rests of hemp must not get into the valve body. -
Page 5: Point Control
RESOL VA32 5. On-off control (with permanent phase L) Black: if the auxiliary phase L (240 V) is energised, the way control cont. AB<>B opens. If there is no control signal, the valve is black brought back to the initial position AB <> A... - Page 6 RESOL VA32 Notes...
- Page 7 RESOL VA32 Notes...
-
Page 8: Imprint
This especially applies for copies, translations, micro films lations and plans, under consideration of the current stan- and the storage into electronic systems. Editor: RESOL - dards and DIN-directions should only be basis for your Elektronische Regelungen GmbH projects.We don´t offer a guarantee for the completeness...
