SteelMax Rail Runner Operator's Manual

Welding carriage
Hide thumbs Also See for Rail Runner:

Advertisement

Quick Links

The tools of innovation.
OPERATOR'S MANUAL
R
a
i
l
R
u
n
n
e
r
R
a
i
l
R
u
n
n
e
r
WELDING CARRIAGE
15335 E. Fremont Drive, Centennial, CO 80112
1– 87STEELMAX, FAX 303 – 690 – 9172
www.steelmax.com sales@steelmax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rail Runner and is the answer not in the manual?

Questions and answers

Summary of Contents for SteelMax Rail Runner

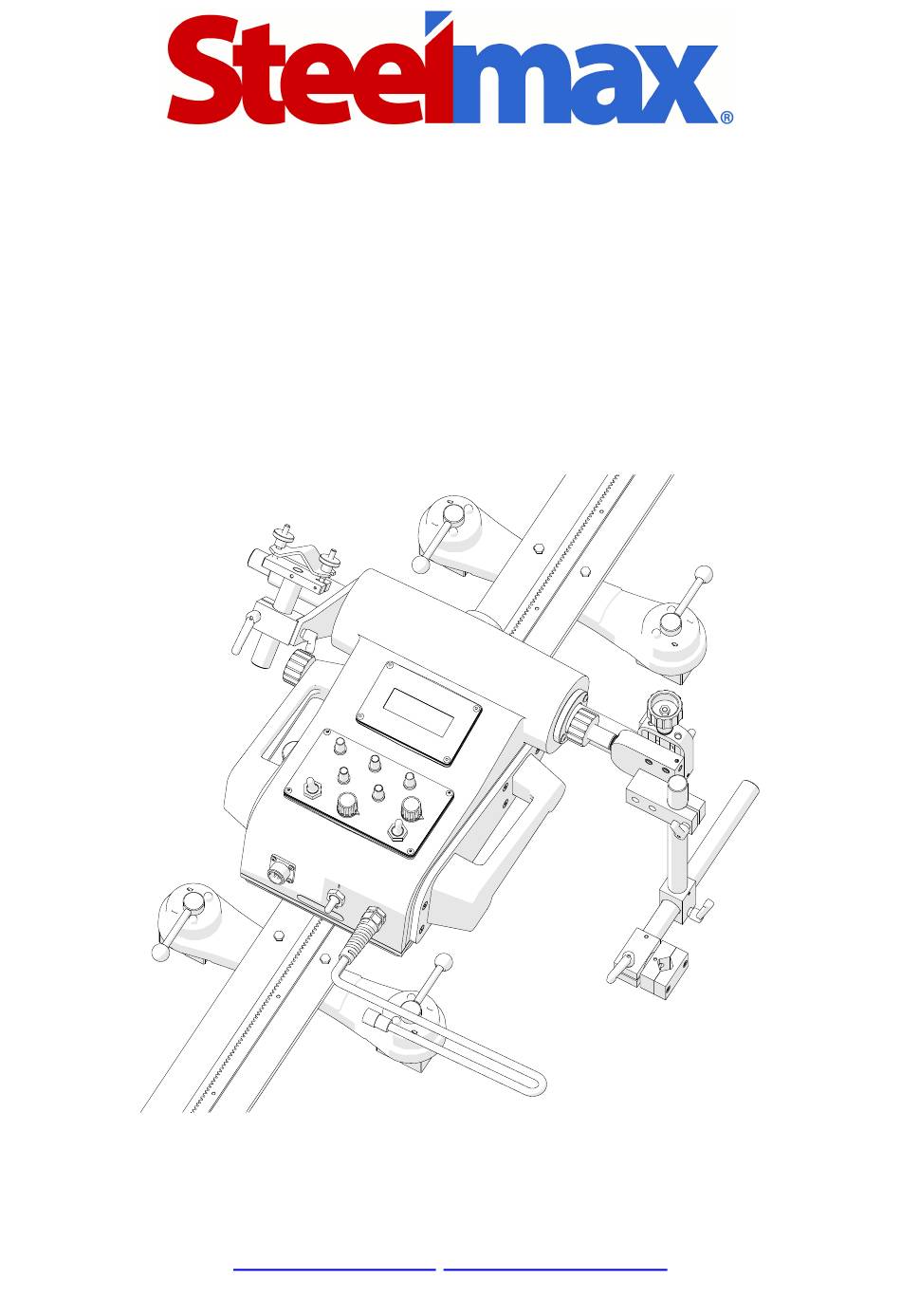

  • Page 1 The tools of innovation. OPERATOR’S MANUAL WELDING CARRIAGE 15335 E. Fremont Drive, Centennial, CO 80112 1– 87STEELMAX, FAX 303 – 690 – 9172 www.steelmax.com sales@steelmax.com...
  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3 1.1. Application ......................... 3 1.2. Technical data......................4 1.3. Equipment included ....................5 1.4. Dimensions ........................ 6 1.5. Design ........................7 2. SAFETY PRECAUTIONS ....................8 3. STARTUP AND OPERATION ..................10 3.1. Assembling the track ....................10 3.2.
  • Page 3: General Information

    1. GENERAL INFORMATION 1.1. Application The Rail Runner is a track carriage designed to make butt and fillet welds with or without oscillation. The carriage allows MIG/MAG torches with the handle diameter of 16–22 mm (0.63–0.87″). It can work in the following welding positions: PA/1F/1G, PB/2F, PC/2G, PD/4F, PE/4G, PF/3G, and PG/3F/3G.
  • Page 4: Technical Data

    0–1500 mm/min (0–59 in/min) Oscillation dwell time at center and on ends 0–5 s Maximum oscillator pulling force 100 N (22 lbs) Maximum allowed ambient temperature 50°C (122°F) Maximum allowed ambient humidity Weight 20 kg (44 lbs) Rail Runner Operator’s Manual...
  • Page 5: Equipment Included

    1 unit 3 m (10 ft) power cord 1 unit 6.5 m (21 ft) arc ignition cable 1 unit 3 mm hex wrench 1 unit 4 mm hex wrench 1 unit – Operator’s Manual 1 unit Rail Runner Operator’s Manual...
  • Page 6: Dimensions

    Rail Runner 1.4. Dimensions 441 mm (17.4’’) Rail Runner Operator’s Manual...
  • Page 7: Design

    Left oscillation position dwell knob Center oscillation position dwell knob Travel speed knob Travel direction switch Arc ignition switch Oscillation offset knob (arm stroke) (Forward / O / Backward) (TEST / O / I) Oscillation speed knob Oscillation width knob Rail Runner Operator’s Manual...
  • Page 8: Safety Precautions

    Protect the carriage by attaching a chain to a carrying handle. The chains must not be loose. 22. Do not stay below the carriage or the track placed at heights. Rail Runner Operator’s Manual...
  • Page 9 29. Never leave the carriage unattended during work. 30. Remove from the worksite and store in a secure and dry place when not in use. Rail Runner Operator’s Manual...
  • Page 10: Startup And Operation

    Place the rack adjustment tool (not included) into the hole (3), and rotate the tool to the left (4) to remove the gap (5) between the racks. Then, tighten the leftmost screw and the rightmost screw of each rack (2). Rail Runner Operator’s Manual...
  • Page 11 Rail Runner Fig. 2. Removing the gap between the racks of a semi-flexible track Rail Runner Operator’s Manual...
  • Page 12: Assembling The Holder

    Thus, to allow proper startup, install the torch holder and the cross slide so that they will not collide with the carriage side or obstacles. Fig. 3. Sample method of assembling the torch holder Rail Runner Operator’s Manual...
  • Page 13: Positioning

    OFF (1, Fig. 4) and loosen the drive clutch knob fully (2). Then, set the carriage onto the track (3) so that the back rollers are placed in the groove (4). Fig. 4. Positioning the carriage on the track Rail Runner Operator’s Manual...
  • Page 14: Connecting To The Welding Circuits

    To make sure that the arc ignition cable is connected correctly, turn on the power of the carriage, and then set the arc ignition switch to the position TEST. This should enable the arc for a while. Rail Runner Operator’s Manual...
  • Page 15: Operating

    Trapezoid is default. To weld according to the (trapezoid) triangular pattern, set all dwell times ( (straight line) to . To weld along a straight line, set to . Unit Unit set by the jumper cap (Fig. 7). Tab. 1. Configuration parameters Rail Runner Operator’s Manual...
  • Page 16 To stop the travel and save the values shown on the display, set the travel direction switch to ‘O’. After the work is finished, use the power switch to turn off the power. Then, unplug the carriage from the power source. Rail Runner Operator’s Manual...
  • Page 17: Changing The Unit Of Measure

    Fig. 7. Changing the unit of measure When the jumper cap connects the top and center pin, the measurement system will be metric after restart. When the jumper cap connects the center and bottom pin, the system will be imperial. Rail Runner Operator’s Manual...
  • Page 18: Troubleshooting

    Malfunction of the oscillator motor Contact service center for encoder or the controller. check and repair. Malfunction of the oscillator sensor. Contact service center for check and repair. Malfunction of the encoder board. Contact service center for check and repair. Rail Runner Operator’s Manual...
  • Page 19: Maintenance

    3. Clean the torch nozzle. Replace if damaged. Monthly: 1. Check whether the knobs and switches work as intended. Replace if loose or damaged. 2. Inspect cables, cords, and hoses. Replace if damaged. 3. Tighten screws if loose. Rail Runner Operator’s Manual...
  • Page 20: Accessories

    Allows guiding the carriage along a straight line. The length of a single rail is 2 m (6.5 ft). Part number: PRW-0482-47-00-00-0 5.3. Rack adjustment tool Removes the clearance between the racks of two semi-flexible rails that are put on a curve. Part number: PKT-0341-13-00-00-0 Rail Runner Operator’s Manual...
  • Page 21: Magnetic Units

    160°C (320°F) 50% (600 N, 130 lbs) 120°C (248°F) 200°C (392°F) Use the 4 mm hex wrench to attach the unit to a semi-flexible or rigid track as shown in the figures. M6x35 M6x16 M6x20 M6x16 Rail Runner Operator’s Manual...
  • Page 22 80°C (176°F) 50% (600 N, 130 lbs) 120°C (248°F) Install the unit in the same way as the magnetic unit is installed. To adjust the angle, use the 6 mm hex wrench and loosen four side screws. Rail Runner Operator’s Manual...
  • Page 23 80°C (176°F) 50% (600 N, 130 lbs) 120°C (248°F) Install the unit in the same way as the magnetic unit is installed. To adjust the spacing, use the 5 mm hex wrench and loosen four side screws. Rail Runner Operator’s Manual...
  • Page 24 Use the 4 mm hex wrench to attach the unit to a semi-flexible or rigid track as shown in the figures. M6x16 M6x35 M6x16 To clamp the unit to the surface, use the 17 mm flat wrench (not included) and set the side screw to ON. Rail Runner Operator’s Manual...
  • Page 25: Semi-Flexible Track Support

    Allows supporting a semi-flexible track by using the support instead of a magnetic unit. Use the 4 mm hex wrench to attach the support to a semi-flexible track. Part number: WSP-0523-12-01-00-1 M6x16 5.6. Transport attachment Allows transporting the wire feeder. Part number: PEP-0482-18-00-00-0 Rail Runner Operator’s Manual...
  • Page 26: Mm Cross Slide

    Extends either up-down or left-right adjustment range from 0–35 mm (0–1.38″) to 0– 76 mm (0–3″). Part number: ZSP-0466-46-00-00-1 Install in place of the standard cross slide after unscrewing four screws with the 4 mm hex wrench. Rail Runner Operator’s Manual...
  • Page 27: Vacuum Track System

    5.8. Vacuum track system Dedicated to fixing the track to non-ferromagnetic surfaces. Part number (vacuum pump with safety reservoir): AGR-0541-24-10-00-0 (115 V US) AGR-0541-24-20-00-0 (230 V CEE) Other parts of the system are described in a separate manual. Rail Runner Operator’s Manual...
  • Page 28: Torch Clamps

    Use the 4 mm hex wrench to tighten the torch in the clip. Part number: ZCS-0476-06-01-00-0 5.9.3. 22–35 mm torch clamp Allows using a torch with the handle diameter of 22–35 mm (0.87–1.38″). Part number: ZRZ-0466-19-00-00-0 Rail Runner Operator’s Manual...
  • Page 29: Rods

    Rail Runner 5.10. Rods 5.10.1. Short rod Provides a 120 mm (4.7″) reach. Part number: WLK-0476-20-01-00-0 5.10.2. Long rod Provides a 240 mm (9.4″) reach. Part number: WLK-0466-04-10-00-0 Rail Runner Operator’s Manual...
  • Page 30: Torch Holders

    5.11.3. Short rod low torch holder with clip The holder allows using a torch with the handle diameter of 16–22 mm (0.63–0.87″). Use the 4 mm hex wrench to tighten the torch in the clip. Part number: UCW-0476-06-00-00-0 Rail Runner Operator’s Manual...
  • Page 31 5.11.5. Long rod torch holder with clip The holder allows using a torch with the handle diameter of 16–22 mm (0.63–0.87″). Use the 4 mm hex wrench to tighten the torch in the clip. Part number: UCW-0466-22-00-00-0 Rail Runner Operator’s Manual...
  • Page 32: 5-230 V Wiring Diagram

    Rail Runner 6. 115–230 V WIRING DIAGRAM Rail Runner Operator’s Manual...
  • Page 33: Wiring Diagram

    Rail Runner 7. 42 V WIRING DIAGRAM Rail Runner Operator’s Manual...
  • Page 34: 5-230 V Exploded Views And Parts List

    ZCS-0476-06-01-00-0 TORCH CLIP ASSY RKJ-000036 HANDLEVER M6-32 UCW-0476-07-00-00-0 CABLE ANCHOR ASSY RAM-0482-17-01-00-0 CABLE ANCHOR ARM RKJ-000006 HANDLEVER M6-16 TRM-0219-06-16-00-0 CLAMP PLATE I NKR-000121 KNURLED NUT M6 RKJ-000036 HANDLEVER M6-32 TLJ-0419-04-02-03-0 INSULATION SLEEVE KST-0476-07-01-00-0 ANCHOR CLAMPING BLOCK Rail Runner Operator’s Manual...
  • Page 35 Rail Runner Rail Runner Operator’s Manual...
  • Page 36 PRS-000022 INTERNAL RETAINING RING 32w WKR-000012 HEX SOCKET SET SCREW WITH DOG POINT M4x6 LOZ-000062 BALL BEARING 12x32x10 LOZ-000038 BALL BEARING 12x28x8 SRB-000078 HEX SOCKET HEAD CAP SCREW M5x12 SRB-000083 HEX SOCKET HEAD CAP SCREW M5x16 Rail Runner Operator’s Manual...
  • Page 37 ZCS-0482-12-04-00-0 CAM CLAMP ASSY ZDR-0482-12-05-00-0 BUMPER PDK-000017 ROUND WASHER 5.3 WKR-000137 HEX SOCKET COUNTERSUNK HEAD SCREW M5x20 PDK-000022 ROUND WASHER 8.4 SPR-000012 DISC SPRING 8.2x16x0.6 TLJ-000048 SLIDE SLEEVE 8x10x12 SRB-000075 HEX SOCKET HEAD CAP SCREW M5x10 Rail Runner Operator’s Manual...
  • Page 38 EXTERNAL TOOTH LOCK WASHER 4.3 PNK-000026 LEVER SWITCH 641 H3 WKR-000152 CROSS RECESSED COUNTERSUNK HEAD SCREW M4x16 WKR-000385 HEX SOCKET BUTTON HEAD SCREW M3x8 WKR-000092 HEX SOCKET BUTTON HEAD SCREW M4x10 * not shown in the drawing Rail Runner Operator’s Manual...
  • Page 39: Exploded Views And Parts List

    ZCS-0476-06-01-00-0 TORCH CLIP ASSY RKJ-000036 HANDLEVER M6-32 UCW-0476-07-00-00-0 CABLE ANCHOR ASSY RAM-0482-17-01-00-0 CABLE ANCHOR ARM RKJ-000006 HANDLEVER M6-16 TRM-0219-06-16-00-0 CLAMP PLATE I NKR-000121 KNURLED NUT M6 RKJ-000036 HANDLEVER M6-32 TLJ-0419-04-02-03-0 INSULATION SLEEVE KST-0476-07-01-00-0 ANCHOR CLAMPING BLOCK Rail Runner Operator’s Manual...
  • Page 40 Rail Runner Rail Runner Operator’s Manual...
  • Page 41 HEX SOCKET BUTTON HEAD SCREW M4x6 WPS-000082 KEY 4x4x8 PRS-000022 INTERNAL RETAINING RING 32w WKR-000012 HEX SOCKET SET SCREW WITH DOG POINT M4x6 LOZ-000062 BALL BEARING 12x32x10 LOZ-000038 BALL BEARING 12x28x8 SRB-000078 HEX SOCKET HEAD CAP SCREW M5x12 Rail Runner Operator’s Manual...
  • Page 42 RESISTIVE BAR ASSY LST-0482-12-03-00-0 PRESSURE BAR ASSY ZCS-0482-12-04-00-0 CAM CLAMP ASSY ZDR-0482-12-05-00-0 BUMPER PDK-000017 ROUND WASHER 5.3 WKR-000137 HEX SOCKET COUNTERSUNK HEAD SCREW M5x20 PDK-000022 ROUND WASHER 8.4 SPR-000012 DISC SPRING 8.2x16x0.6 TLJ-000048 SLIDE SLEEVE 8x10x12 Rail Runner Operator’s Manual...
  • Page 43 EXTERNAL TOOTH LOCK WASHER 4.3 PNK-000026 LEVER SWITCH 641 H/3 WKR-000152 CROSS RECESSED COUNTERSUNK HEAD SCREW M4x16 WKR-000385 HEX SOCKET BUTTON HEAD SCREW M3x8 WKR-000092 HEX SOCKET BUTTON HEAD SCREW M4x10 * not shown in the drawing Rail Runner Operator’s Manual...
  • Page 44: Declaration Of Conformity

    EC Declaration of Conformity PROMOTECH sp. z o.o. ul. Elewatorska 23/1 15-620 Białystok Poland declare with full responsibility that: Rail Runner Welding Carriage is manufactured in accordance with the following standards: • EN 50144-1 • EN 60974-10 and satisfies safety regulations of the guidelines: 2004/108/EC, 2006/95/EC, 2006/42/EC.
  • Page 45: Quality Certificate

    Rail Runner 11. QUALITY CERTIFICATE Machine control card Rail Runner Welding Carriage □ 115–230 V □ 42 V Serial number..............Electric test Type of test Result Name of tester Insulation electrical strength test ........(1000 V, 50 Hz) Date Ω...
  • Page 46: Warranty Card

    WARRANTY CARD No..................in the name of Manufacturer warrants the Rail Runner Welding Carriage to be free of defects in material and workmanship under normal use for a period of 12 months from the date of sale. This warranty does not cover rollers as well as damage or wear that arise from misuse, accident, tempering, or any other causes not related to defects in workmanship or material.
