RPB C40 Climate Control Instruction Manual page 16

C40 CLIMATE CONTROL
SETUP AND CARE CONTINUED

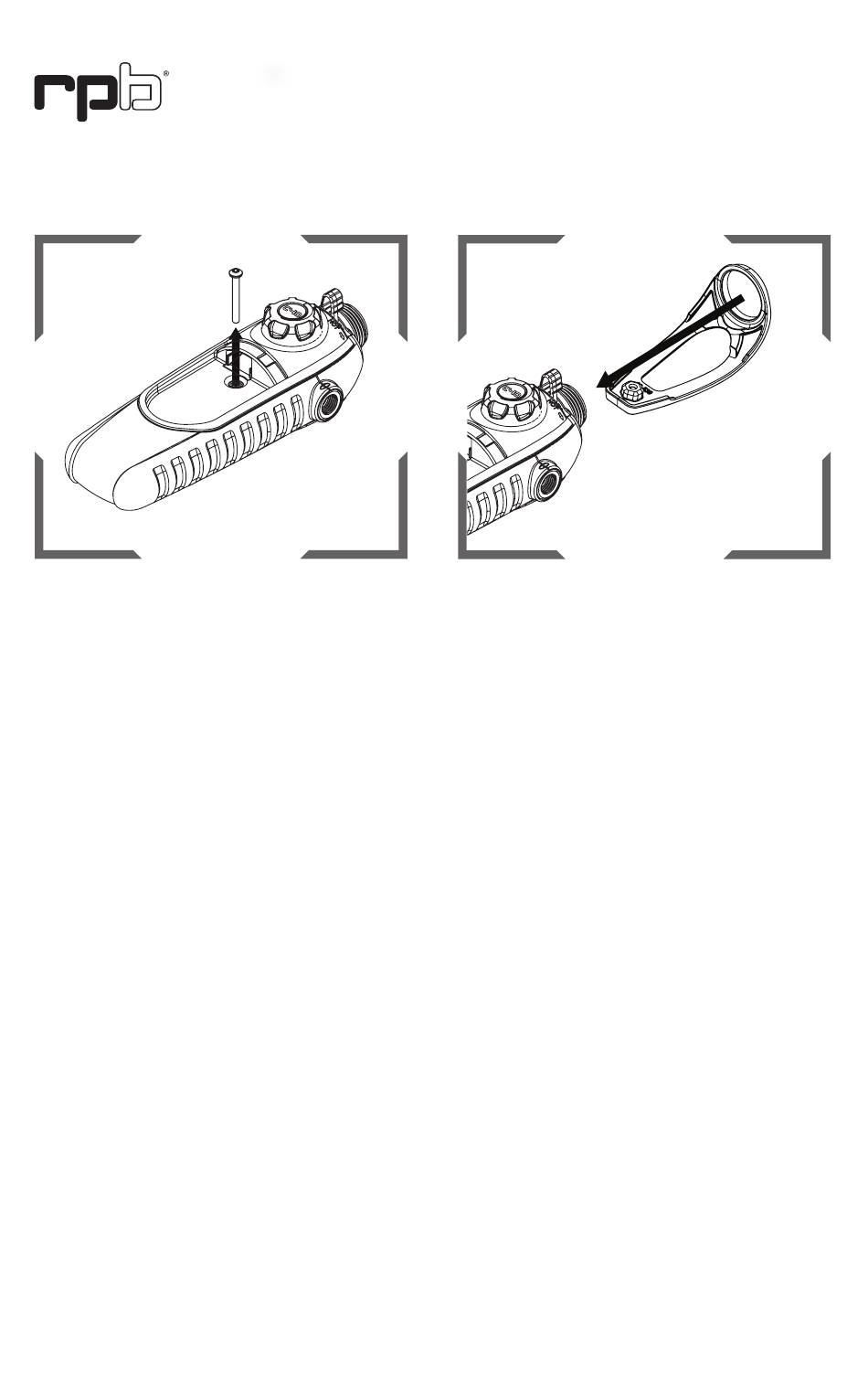

FIGURE 3.1
To change the belt loop, remove the center
screw and slide the old belt loop off, over the
threaded outlet.
16 16
™
FIGURE 3.2
To install the new belt loop, slide it on over
the threaded outlet and line up the hex nut
indentation with the hole in the back of the
housing. Reinsert the center screw and
reassemble the silencers and exhaust cover.
