RPB C40 Climate Control Instruction Manual page 14

C40 CLIMATE CONTROL
SETUP AND CARE CONTINUED

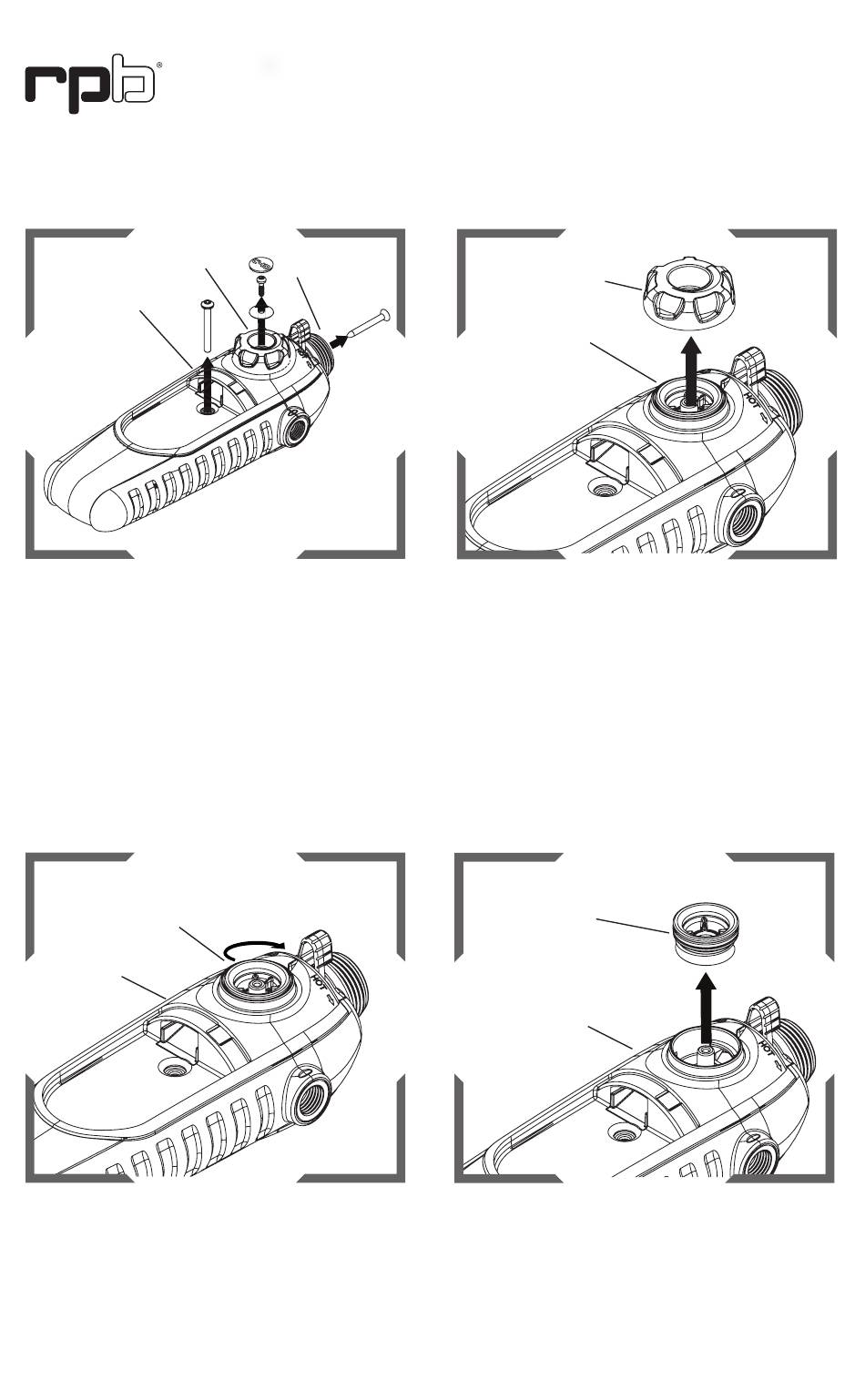

FIGURE 2.3
03-524
03-522
Remove the Cap from the Flow Knob
(03-524) and then the screw and washer
in the (03-524), as well as the screw from
the Exhaust Case (03-522) and Top Casing
(03-521) as shown in Figure 2.3.
FIGURE 2.5
03-523
03-522
While pressing down firmly on Exhaust Case
(03-522) turn the Flow Valve (03-523) 180°
clockwise.
14 14
™
03-521
FIGURE 2.4
03-524
03-522
Remove the Flow Knob (03-524) from the
Exhaust Case (03-522).
FIGURE 2.6
03-523
03-522
Remove the Flow Valve (03-523) from the
Exhaust Case (03-522), taking care that the
small center o-ring stays in place.
