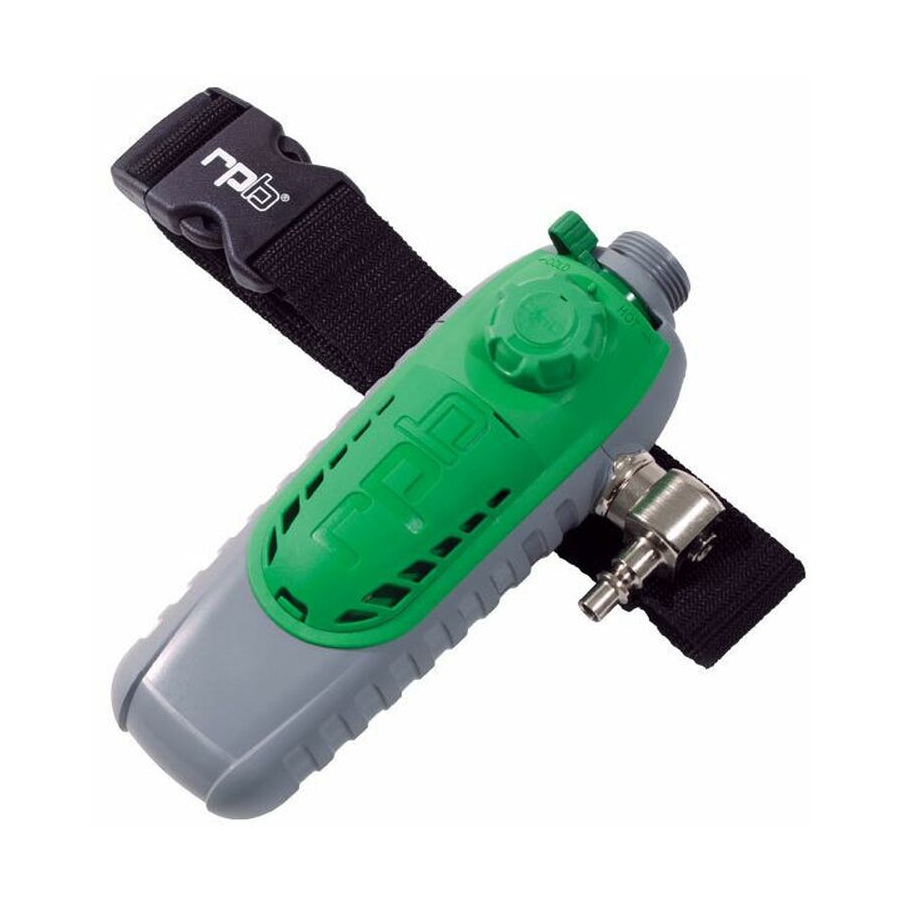

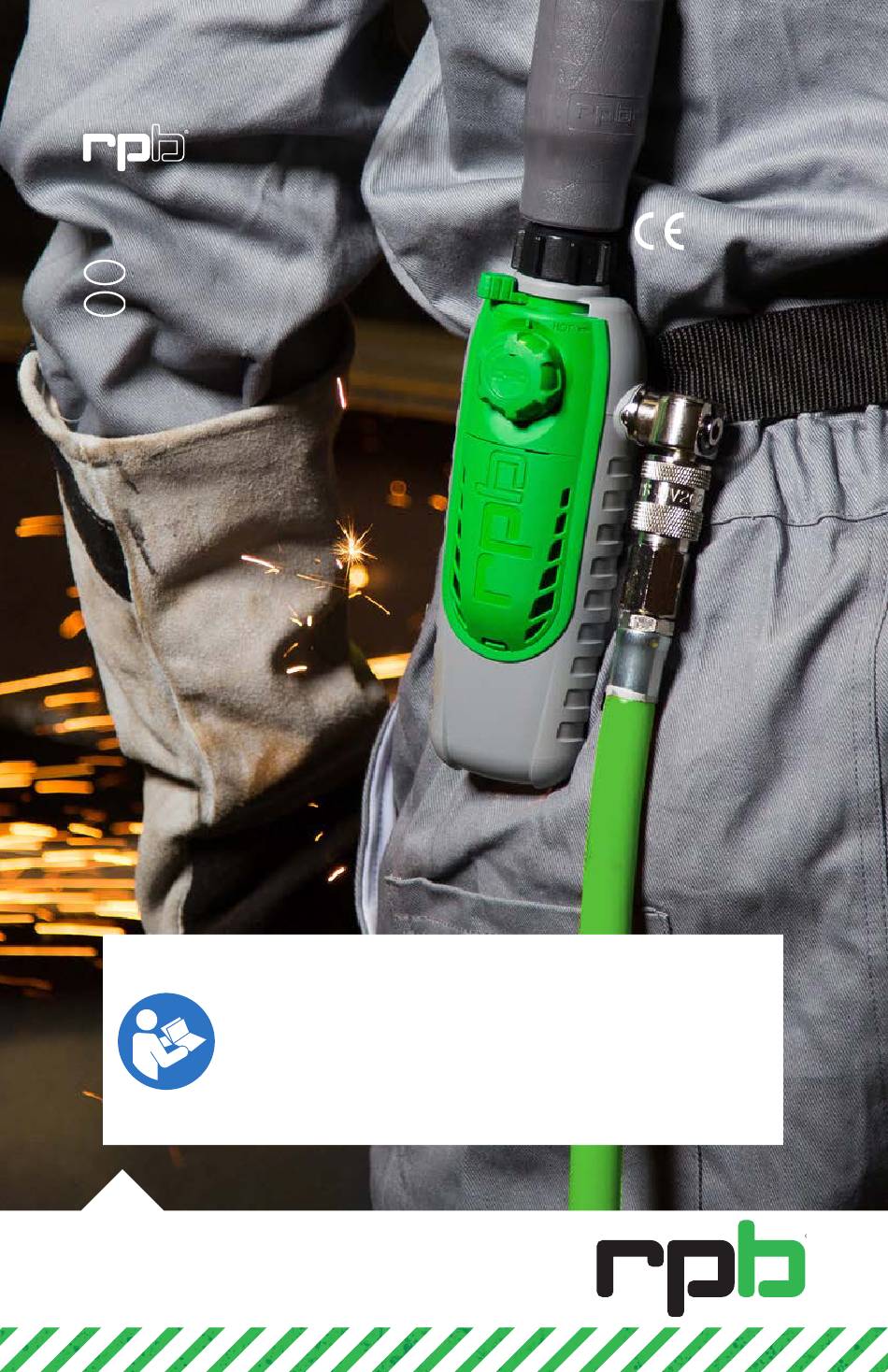

C40 CLIMATE CONTROL
INSTRUCTION MANUAL
ENGLISH
EN
NEDERLANDS
NL
Employers: Read this manual and the head-top Instruction Manual and
carry out the Employer Responsibilities (page 7).
Product users: Read this manual and the head-top Instruction Manual
and follow the Product User Safety Instructions (page 9).
Manuals are regularly updated. Make sure this manual is available to all
users for reference.
Current version of manual and other languages:
www.rpbsafety.com/product/c40-climate-control-device/
Protecting you for life's best moments
™
2
21
®
2797
EN14594: 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C40 Climate Control and is the answer not in the manual?

Questions and answers

Related Manuals for RPB C40 Climate Control

Summary of Contents for RPB C40 Climate Control

  • Page 1 C40 CLIMATE CONTROL ™ 2797 INSTRUCTION MANUAL ENGLISH EN14594: 2005 NEDERLANDS Employers: Read this manual and the head-top Instruction Manual and carry out the Employer Responsibilities (page 7). Product users: Read this manual and the head-top Instruction Manual and follow the Product User Safety Instructions (page 9).

  • Page 2: Table Of Contents

    C40 CLIMATE CONTROL C40 CLIMATE CONTROL ™ ™ CONTENTS  EXPLANATION OF SIGNAL WORDS AND SYMBOLS  INTRODUCTION  IMPORTANT SAFETY INFORMATION  PROTECTION PROVIDED AND LIMITATIONS  RESPIRATORY COMPONENT DIAGRAM - CAUTIONS & LIMITATIONS  AIR SOURCE, FITTINGS, AND PRESSURE ...

  • Page 3: Introduction

    The green and gray color combination is a registered trademark of RPB Safety, LLC. All rights in the RPB Intellectual Property contained in this publication, including copyright, trademarks, service marks, trade secret, and patent rights are reserved.

  • Page 4: Important Safety Information

    Use with an airline filter, such as the 04- 900 RPB RADEX Airline Filter. Specific protection depends on the setup of the airline filter ® ® (see the Instruction Manual for RPB RADEX or for which ever airline filter is used). ® ® HAZARD LIMITATIONS...

  • Page 5: Respiratory Component Diagram - Cautions & Limitations

    The Declaration of Conformity can be found at rpbsafety.com/resources/  See the “Inspection, Cleaning and Storage” section for information on packaging and protection required for transportation. RESPIRATOR COMPONENT DIAGRAM An RPB Respirator consists of 3 main components: ® CAUTIONS AND LIMITATIONS 1. RESPIRATOR...

  • Page 6: Air Source, Fittings, And Pressure

    EN 12021 and AS/NZS 1715 requirements. AIR QUALITY This respirator must be supplied with clean breathable air at all times. Breathable air must at least meet the requirements for EN 12021 and AS/NZS 1715. The RPB does not purify air or filter ®...

  • Page 7: Employer Responsibilities

    EMPLOYER RESPONSIBILITIES Your specific responsibilities may vary by location and industry, but in general RPB expects that ® employers will:  Follow all applicable standards and regulations for your location, industry, and activity. Depending on your location and industry, a number of standards and regulations may apply to your selection and use of respirators and other personal protective equipment.
  • Page 8  Measure and monitor airborne contaminant levels in the work area in accordance with applicable requirements. Make sure work area is well ventilated.  If you have any questions, contact RPB ®  Call Customer Service Department at: Tel: 1-866-494-4599 E-mail: customerservice@rpbsafety.com...

  • Page 9: Product User Safety Instructions

    Climate Control Device ™  Breathing Air Line See Respirator Component Diagram (page 5). Use only authentic RPB brand parts and ® components that are part of the respirator assembly. Using incomplete or inappropriate equipment, including the use of counterfeit or non-RPB parts, can result in inadequate protection.
  • Page 10 Never place the C40 on hot surfaces. Do not apply paints, solvents, adhesives or self-adhesive ™ labels except as instructed by RPB . This product may be adversely affected by certain chemicals. ® See the “Inspection, Cleaning and Storage” section (p. 13) for cleaning instructions.

  • Page 11: Setup And Care

    FIGURE 1.3 03-502 ATTACH THE BREATHING TUBE CONNECT AIR SUPPLY HOSE Thread on the loose running nut of the Connect a RPB Breathing Air Line insuring ® Breathing Tube on to the C40 Climate the maximum sections and lengths are ™...
  • Page 12 BREATHING AIR PRESSURE TABLE S - Special or Critical Users Instructions Refer to the head-top instruction manual for Breathing Air Pressure Table. This table lists air pressure ranges needed to provide the RPB Supplied Air Respirators when using the C40 ®...
  • Page 13 INSPECTION, CLEANING AND STORAGE Climate Control Device ™ The RPB Climate Control Device has a limited service life, and therefore a regular ® ™ inspection and replacement program must be conducted. All components of a Respirator Assembly including the Breathing Air Line, Head-top and Flow Control Devices should be inspected for damage and wear and tear, before use.
  • Page 14 C40 CLIMATE CONTROL ™ SETUP AND CARE CONTINUED FIGURE 2.3 FIGURE 2.4 03-524 03-521 03-524 03-522 03-522 Remove the Cap from the Flow Knob Remove the Flow Knob (03-524) from the (03-524) and then the screw and washer Exhaust Case (03-522).
  • Page 15 FIGURE 2.7 FIGURE 2.8 03-522 03-514 03-510 03-510 1. Lift the Exhaust Case (03-522) up from Lift the Belt Loop over the Bottom Case the U-Tube (03-510) 2. Slide the 03-522 out (03-514) to allow it to slide down off of the U from the 03-510.
  • Page 16 C40 CLIMATE CONTROL ™ SETUP AND CARE CONTINUED FIGURE 3.1 FIGURE 3.2 To change the belt loop, remove the center To install the new belt loop, slide it on over screw and slide the old belt loop off, over the the threaded outlet and line up the hex nut threaded outlet.

  • Page 17: Flow And Temperature Chart

    FLOW AND TEMPERATURE CHART +60°F +30°C +40°F +20°C +20°F +10°C Heating Cooling -10°C -20°F -20°C Flow Rate slpm -40°F -30°C FIGURE 4.1 -60°F This chart shows the relationship between the flow rate and it’s effect on the heating and cooling of the air. The lower the flow rate, the more heating and cooling is achieved. The flow rate must stay above 170 slpm at all times.

  • Page 18: Parts And Accessories

    Use only exact, authentic RPB replacement parts (marked with the ® logo and part number), and only in the specified configuration. Using incomplete or ® inappropriate equipment, including the use of counterfeit or non-RPB parts, can result ® in inadequate protection. 18 18...
  • Page 19 PARTS LIST Item No. Description Part Number U-Tube Assembly 03-510 Bottom Case 03-514 Top Case Assembly 03-521 Exhaust Assembly 03-522 Silencer Assembly 03-526 Silencers 03-537 Safety Quick Disconnect Swivel Plug 03-022-PMS ® Inlet Collar 03-536 Belt Loop and Nut 03-539 Replacement 2”...

  • Page 20: Warranty And Liability Statement

    ® Safety is not liable for damage, loss or expense resulting from the failure to give advice or ® information or the giving of incorrect advice or information, whether or not due to RPB Safety’s ® negligence or that of its employees, agents or subcontractors.

  • Page 21: Nederlands

    Unit 2, Teardrop Industrial Park, London Road, Swanley, BR8 8TS, United Kingdom T: +44-800-689-5031 E: sales@rpbsafety.co.uk rpbsafety.com Copyright © 2019 RPB Safety, LLC. Alle rechten voorbehouden. Alle materialen op deze website zijn beschermd door de Amerikaanse auteursrechtwetgeving en mogen niet worden gereproduceerd, gedistribueerd, overgedragen, weergegeven, gepubliceerd of uitgezonden zonder de voorafgaande schriftelijke toestemming van RPB Safety, LLC.
  • Page 22 RPB Safety, LLC. Neem voor technische ondersteuning contact op met onze klantenservice: 1-866-494-4599 of e-mail: customerservice@rpbsafety.com...
  • Page 23 Gebruik met een Ademlucht filter, zoals de 04-900 RPB RADEX Ademlucht Filter. Specifieke bescherming ® ® hangt af van de instelling van de Ademlucht filter (zie de Gebruiksaanwijzing voor RPB ® RADEX of voor de ademlucht filter die gebruikt wordt). ® WAARSCHUWING...
  • Page 24 EN 12021 en AS/NZS 1715 normen. LUCHTKWALITEIT Dit ademhalingstoestel moet te allen tijde worden voorzien van schone ademlucht. Ademlucht moet minimaal voldoen aan de normen EN 12021 en AS/NZS 1715. De RPB zuivert geen lucht en ® ™...
  • Page 25  Train medewerkers in het gebruik, onderhoud en de beperkingen van de C40 ™ Benoem een gekwalificeerd persoon met voldoende kennis over de RPB ® ™ nationale en lokale normen om training te geven: Kwalificaties van de Ademhalingstoestel-Trainer.
  • Page 26  Ademluchtslang Zie het Diagram; Componenten van het Ademhalingstoestel (pagina 23). Controleer het keuringsetiket van de luchtkap om te controleren of deze is goedgekeurd voor gebruik met de RPB ® . Gebruik alleen authentieke RPB -merkonderdelen en -componenten die deel uitmaken ™...
  • Page 27 U een andere reden heeft om te vermoeden dat het ademhalingtoestel niet voldoende bescherming biedt. ONDERHOUD Plaats de C40 nooit op hete oppervlakken. Breng geen verf, oplosmiddelen, kleefstoffen of ™ zelfklevende etiketten aan, tenzij aan de hand van instructies van RPB . Bepaalde chemicaliën ® 27 27...
  • Page 28 Zorg ervoor dat er een voor de Ademluchtdruktabel. In deze tabel comfortablele mate van luchttoevoer naar het worden de luchtdrukbereiken vermeld die ademhalingstoestel is. nodig zijn om de RPB Ademhalingstoestellen ® met Ademlucht te voorzien bij gebruik van de AFBEELDING 1.6 OP PAGINA 12...
  • Page 29 INSPECTIE, REINIGING EN OPSLAG Thermoregelaar ™ De RPB Thermoregelaar heeft een beperkte levensduur en daarom moet er regelmatig ® ™ een inspectie- en vervangingsroutine worden uitgevoerd. Alle componenten van een Ademhalingstoestel, inclusief de Ademluchtslang, Luchtkap en Regelaars, moeten vóór gebruik worden gecontroleerd op beschadiging en slijtage.
  • Page 30 C40 CLIMATE CONTROL ™ AFBEELDING 2.6 OP PAGINA 14 Let op: Verwijder het Toevoer-Ventiel (03-523) van Om het opnieuw in elkaar zetten te de Behuizing van de Uitlaat (03-522) en zorg vergemakkelijken, zet de riem vast voordat u ervoor dat de kleine o-ring in het midden op de schroeven plaats volgens Afbeelding 2.3.
  • Page 31 Gebruik alleen exacte, authentieke RPB ® vervangingsonderdelen (gemarkeerd met het RPB -logo en onderdeelnummer) en alleen ® in de aangegeven opstelling. Gebruik van onvolledige of ongeschikte uitrusting, waaronder het gebruik van nagemaakte of niet-RPB -onderdelen, kan resulteren in onvoldoende ® bescherming. 31 31...
  • Page 32 ® ® tevredenheid te bepalen of een geclaimd defect onder deze beperkte garantie valt. Als er defect optreedt dat onder de garantie valt, zal RPB naar eigen goeddunken het defecte ® Product (of een onderdeel van het product) repareren of vervangen. Deze ‘reparatie of vervanging’...
  • Page 33 NOTES ............................
  • Page 34 C40 CLIMATE CONTROL ™ NOTES ........................... . .
  • Page 35 NOTES ............................
  • Page 36 OTHER PRODUCTS NOVA 3 RESPIRATOR ® ® The RPB NOVA 3 combines breakthrough ® ® protection technology with advanced comfort and functionality, surpassing even the most rigorous industry standards and the demands of the most quality-conscious companies. Designed to optimize safety...
