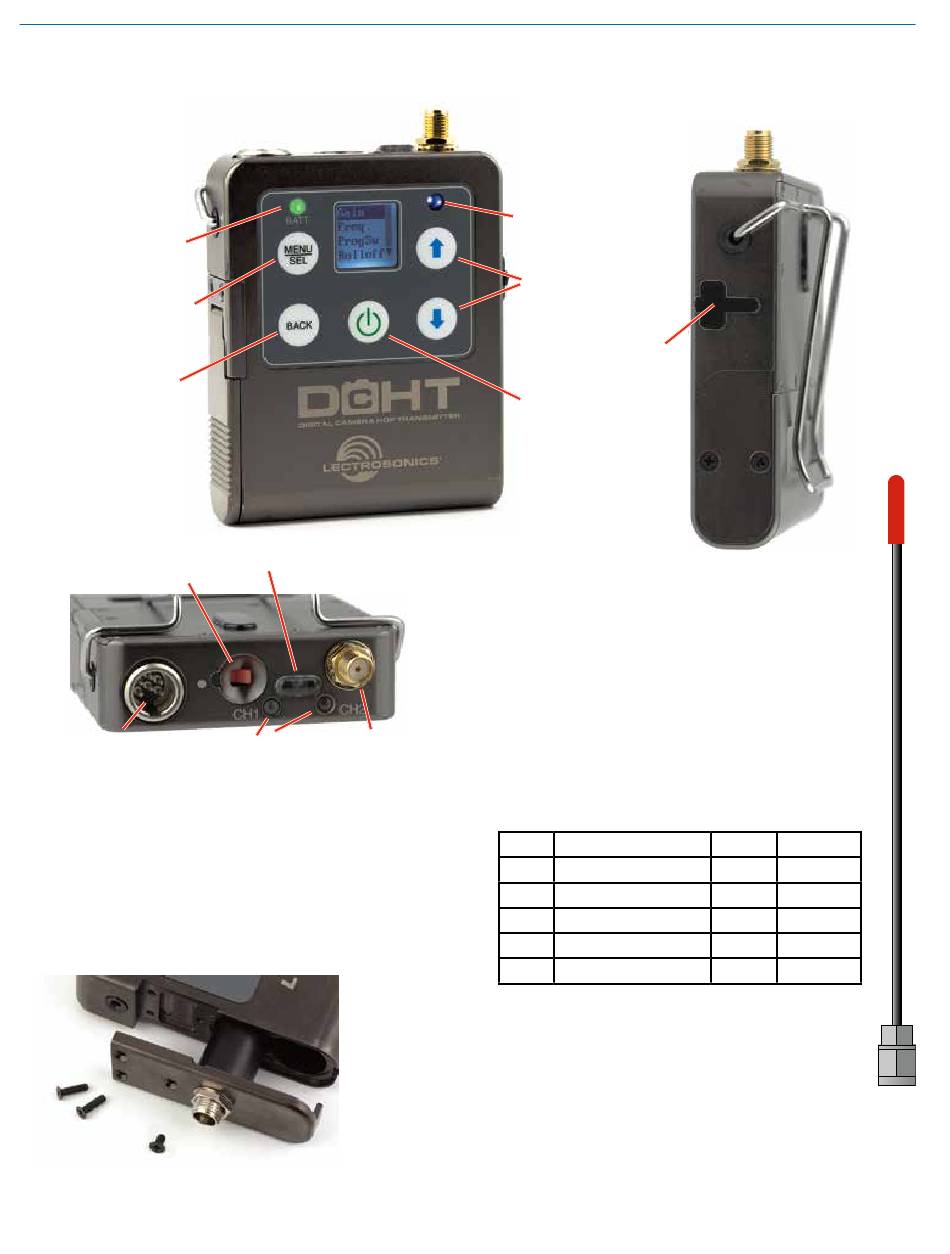

Features and Functions

Battery
status LED
Enter menu/Select item
Return to
previous screen
Programmable
function switch
Audio
input
jack

Optional Battery Eliminator

The transmitter can be powered by external DC using
the optional LTBATELIM power supply adapter. The
battery door is replaced by the adapter with a simple
procedure. The adapter provides a locking coaxial con-
nector and a variety of power cords and connectors are
available.
4
Bi-directional IR port
Antenna
Modulation
port
indicators*
Status Ready LED
Menu navigation
USB Port
Power

Whip Antennas

Because the transmitter tunes across such a
broad frequency range, it is best to use the ap-
propriate antenna for maximum operation. Two
antennas are included with the transmitter, and
are shipped from the factory pre-cut and fully
assembled. Each antenna covers three blocks.
Refer to the chart below to determine which an-
tenna matches the operating frequency you will
be using.
Frequency
Block Range MHz
470 470.100 - 495.600
19 486.400 - 511.900
20 512.000 - 537.500
21 537.600 - 563.100
22 563.200 - 588.700
23 588.800 - 607.950
Cap
Color Antenna
Black AMM19
Black AMM19
Black AMM19
Red AMM22
Red AMM22
Red AMM22
