Xmit Menu; Selecting Frequency; Selecting Transmitter Output Power; Selecting Receiver Compatibility Mode - Lectronics DCHT Instruction Manual

TYPE DESC, BIAS, IMPEDANCE, POLARITY
Line In Line level signals up to +24 dBu
Dynamic
Low-Z dynamic microphones
PSA Point Source Audio lav microphones
DPA
DPA lavaliere; 4V, Mid-Z, (+)
B6 Countryman B6; 2V, Low-Z, (+)
COS-11
Sanken COS-11; 4V, Low-Z, (–)
MKE 2*
Sennheiser MKE 2; 4V, Low-Z, (+)
M152* Lectrosonics M152; 4V, Low-Z, (+)
Oth Lav*
Other lavaliere; 4V, Low-Z, (+)
Custom Manually configurable microphone level
* Separate listings for these microphones are included
for convenience, however, they are all the same con-
figuration.
The Custom option opens a setup screen that provides
a variety of settings. Press SEL to select the custom
setup item, then press the
adjust the setting.
Channel select
InpCfg2
Input impedance
Custom
MicLoZ
Bias voltage
0V Neg
Audio polarity
Available settings:
• Input impedance (Z): LOW, MID, HIGH
• Bias voltage: 0V, 2V, 4V
• Audio polarity: + (pos.), – (neg.)

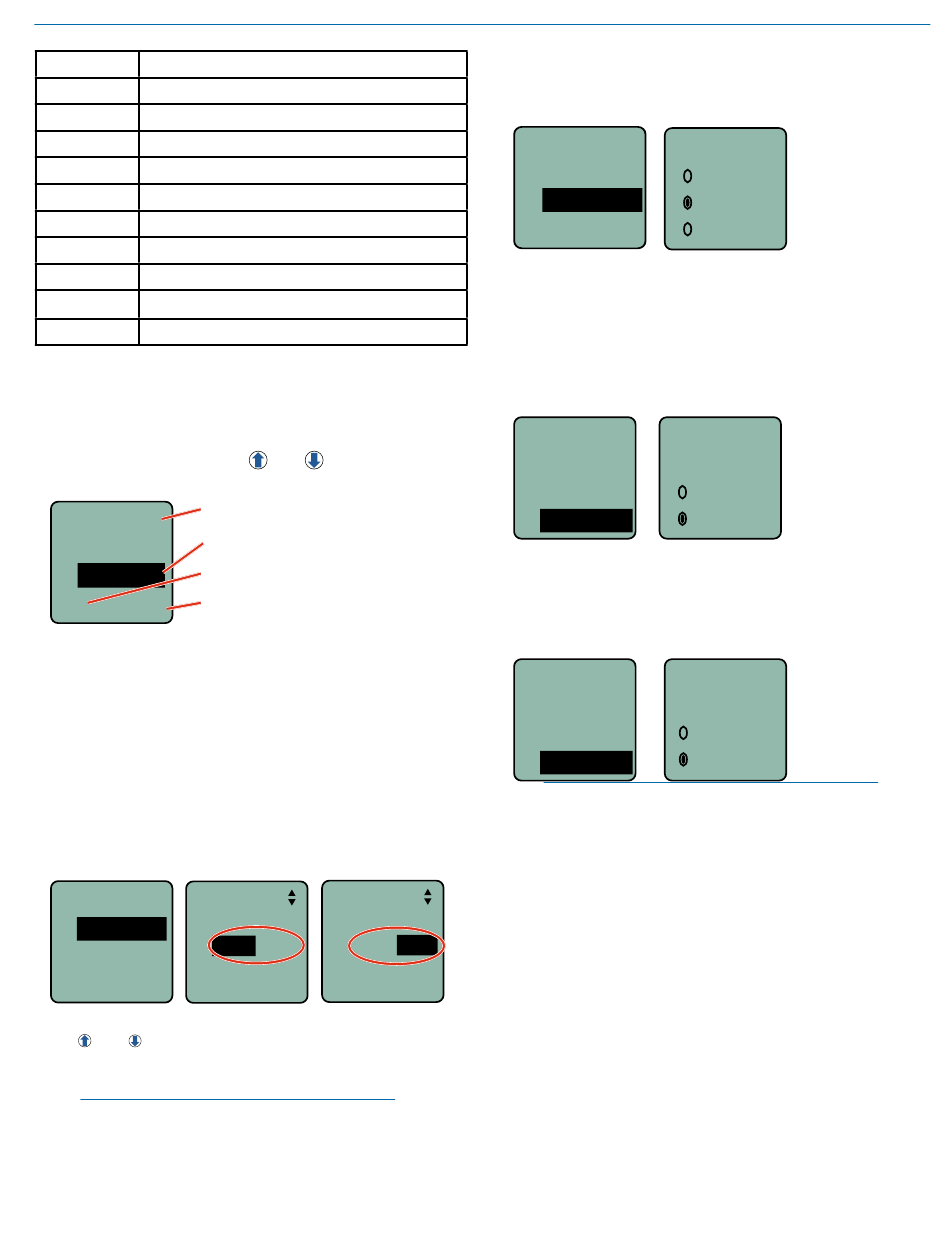

Xmit Menu

Selecting Frequency

The setup screen for frequency selection offers multiple
ways to browse the available frequencies.
Freq.
Xmit...
Freq
TxPower
Compat
Press the MENU/SEL button to select each field. Use
the and arrow buttons to adjust the frequency.
Each field will step through the available frequencies in
a different increment.
NOTE: When the frequency is highlighted, hold
down the MENU/SEL button to increase or
decrease frequency in higher increments.
Rio Rancho, NM
and arrow buttons to
Freq.
494.500
494.500

Selecting Transmitter Output Power

The output power can be set to 10 mW, 25 mW
or 50 mW.
Xmit...
TxPower
Freq
TxPower
Compat

Selecting Receiver Compatibility Mode

The transmitter can be set to operate with different
receivers:
Duet: M2R digital IEM/IFB receiver
DCH(X): M2R-X encrypted (FW v3.x)
Xmit... Compat
Freq
TxPower
Compat

Turning Rf On/Off

Turn Rf off to preserve battery power while setting other
transmitter functions. Turn it back on to begin transmit-
ting.
Xmit... Rf On?
TxPower
Compat
Rf On?
NOTE: When transmitter is off, a brief press of the
Power Button will turn the transmitter on with Rf
off. Use this function to turn Rf on when ready to
transmit.
Digital Transmitter
10 mW
25 mW
50 mW
Duet
DCH(X)
Yes
No
