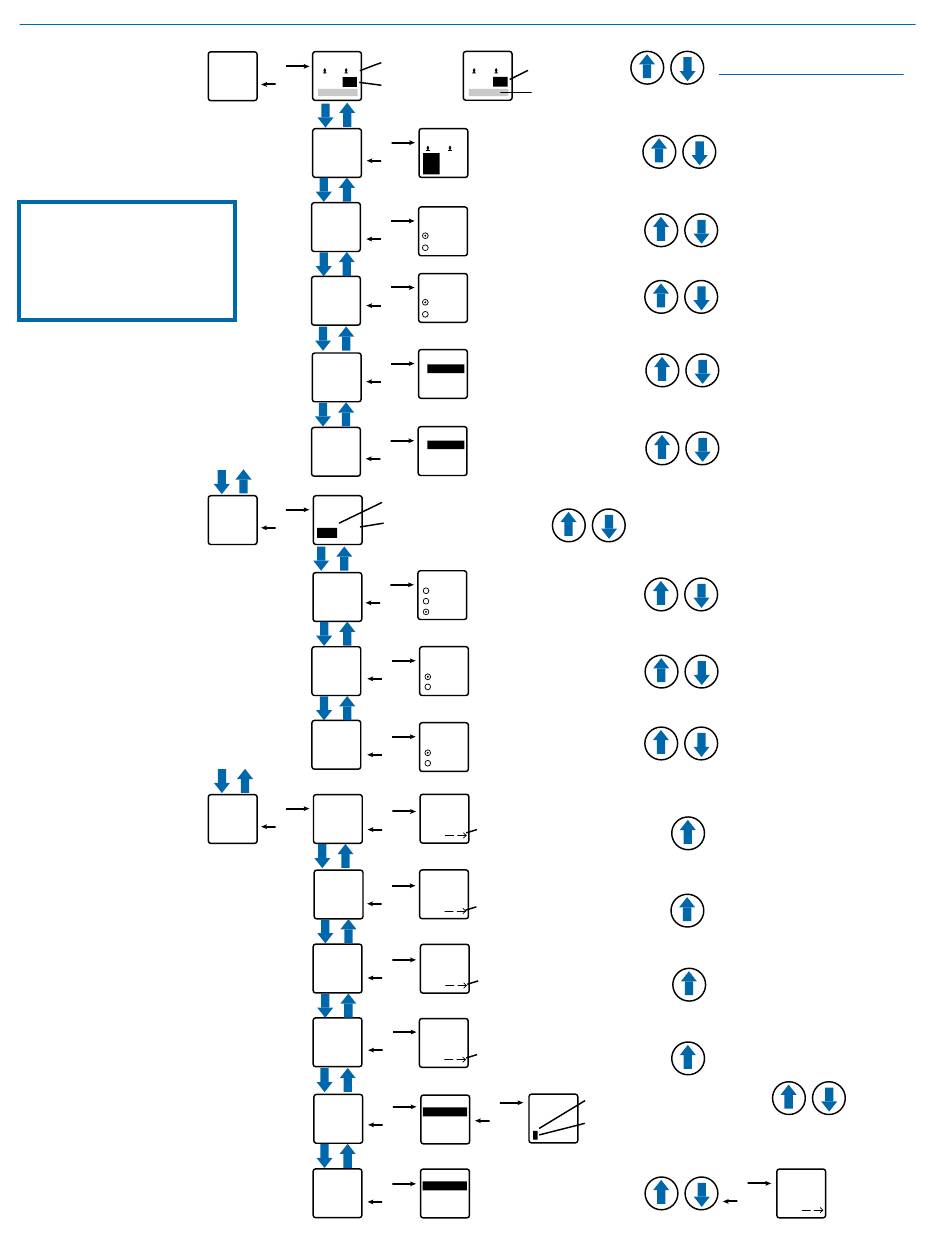

Lcdmenu Map - Lectronics DCHT Instruction Manual

DCHT, DCHT/E01
LCD
Menu Map
Settings will be stored
when the BACK button
is pressed.
8
SEL button to
Gain
SEL
1 2 select channel
Input...
20 22
BACK (gain value
highlighted)
Rolloff
SEL
BACK
SEL
StMode
BACK
SEL
InType
BACK
SEL
InpCfg1
BACK
SEL
InpCfg2
BACK
Press MENU/SEL to highlight MHz or kHz
Freq.
SEL
Xmit...
Select value with arrow buttons
BACK
470.675
Txpower SEL
BACK
SEL
Compat
BACK
Rf On? SEL
BACK
SEL
SEL
M2R...
GetFrq
BACK
BACK
SendFrq
SEL
BACK
SEL
GetAll
BACK
SEL
SendAll
BACK
SEL
Name...
BACK
Flex... SEL
BACK
Use arrow buttons
Gain
1 2
to select value
20 22
Level meter at bottom of screen
Rolloff
1 2
Select value with arrow buttons
70 70
Hz Hz
StMode
Select option with arrow buttons
Indep.
Linked
InType
Select option with arrow buttons
Analog
AES
Select setting with arrow
InpCfg1
buttons: PSA, DPA, B6,
Line In
COS-11, MKE 2, M152, Oth
Lav, Custom, Line In, Dynamic
Select setting with arrow
InpCfg2
buttons: PSA, DPA, B6,
Oth Lav
COS-11, MKE 2, M152, Oth
Lav, Custom, Line In, Dynamic
TxPower
10 mW
Select option with arrow buttons
25 mW
50 mW
Compat
Select option with arrow buttons
Duet
DCH(X)
Rf On?
Select option with arrow buttons
Yes
No
GetFreq.
Press UP arrow button to begin sync
Sync
SendFreq
Press UP arrow button to begin sync
Sync
GetAll
Press UP arrow button to begin sync
Sync
SendAll
Press UP arrow button to begin sync
Sync
Select character with arrow buttons
Name... SEL NameTx
NameTx
BACK
NameCh1
Press MENU/SEL to confirm and move cursor to next
NameCh2
position; 8 characters available
Flex...
Select option with arrow buttons:
SendTx
SendTx, SendCh1, SendCh2,
SendCh1
SendCh2 SendM12
NOTE: When StMode is set
to Linked, a single gain value
field will be shown
SendTx
SEL
BACK
Sync
