Accessories - Lectronics DCHT Instruction Manual

DCHT, DCHT/E01

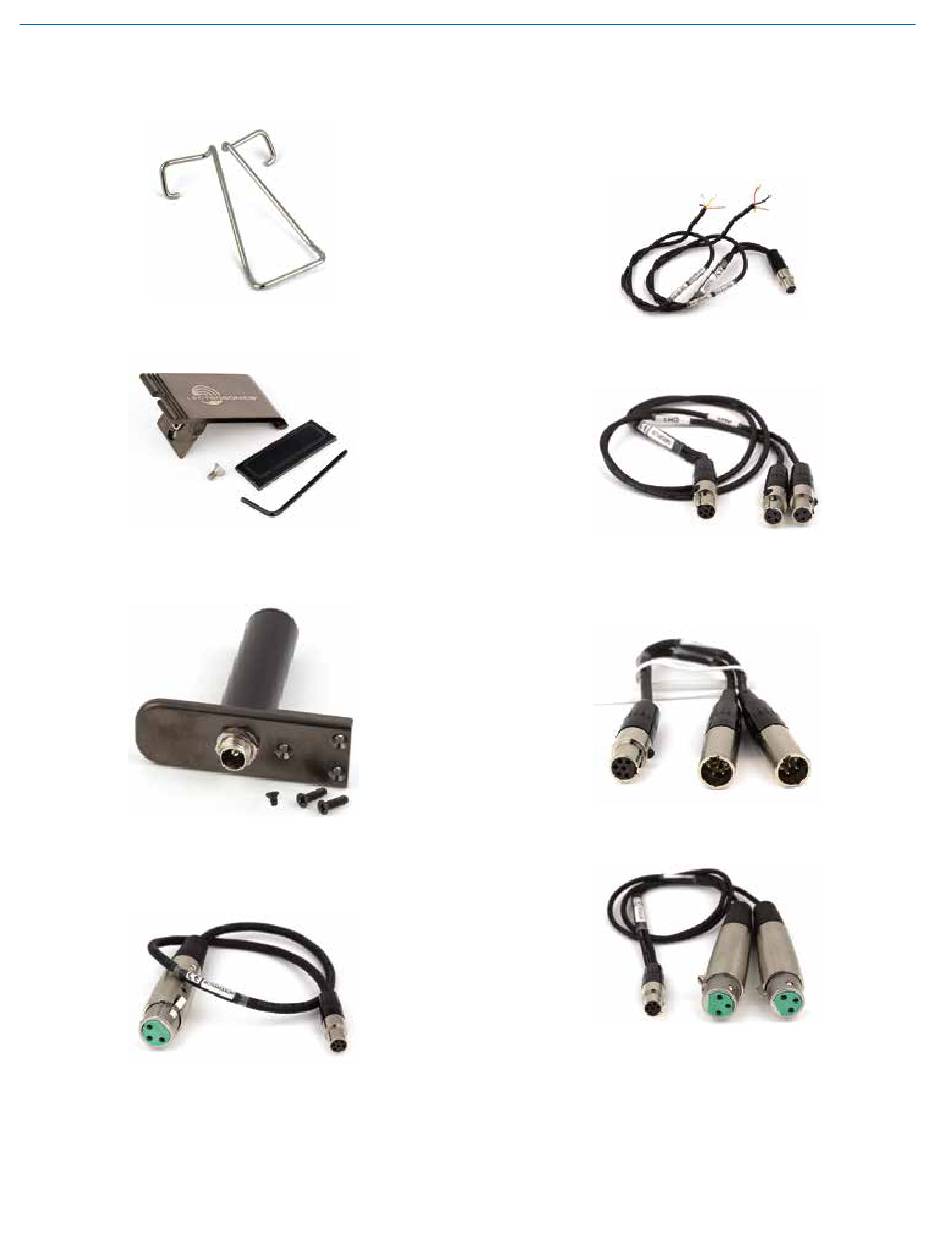

Accessories

26895: Wire belt clip
BCSLEBN: Spring-loaded belt clip
LTBATELIM: Replaces the batteries for powering the
DCHT, DCHT/E01 from external DC, 5 to 25 volts.
MCTA6AESXLRF: AES3 digital signal from XLR-F
output. 18 inch length.
20
MCTA6PT: General purpose cable with TA6FLX 6-pin
female on one end and stripped and tinned wires on the
other end with two separate cables. Wired for connec-
tion to microphone level signals. 18 inch length.
MCTA6TA3F2: Line level signals from two TA3-M out-
puts. 18 inch length.
MCTA6TA5M2: Microphone and line level signals from
microphones and other devices configured with TA5F
connectors for Lectrosonics wireless transmitters.
6 inch length.
MCTA6XLRF2: Line level signals from two XLR-M
outputs. 18 inch length.
LECTROSONICS, INC.
