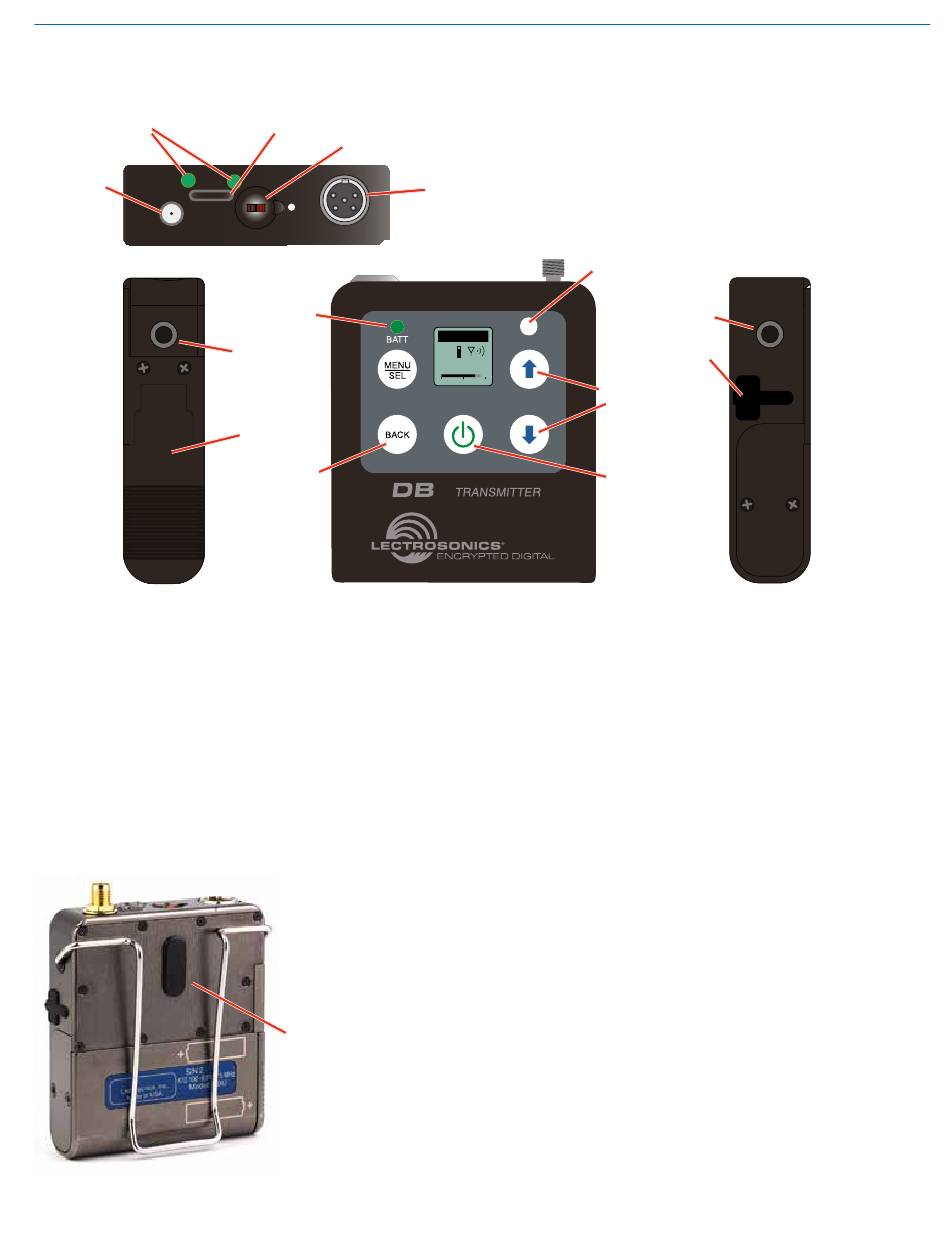

Features and Functions

Modulation
Indicators*
Antenna
-20
AUDIO
Port
IR PORT
When the transmitter is set to MUTE, the -10 Modu-
*
lation Indicators LED will glow solid red. Otherwise,
the -10 and -20 Modulation Indicators LED will glow
light green or red depending on modulation levels.
The Key verification LED will glow solid blue if the
**
key is set to Universal or if an encryption key is
stored in the unit when set to Standard, Shared or
Volatile key policies. The blue LED will blink when in
these key modes and no key is stored.
Rio Rancho, NM
Programmable
IR Port
Function Switch
-10
PWR/FUNC
Battery
status LED
Belt clip
mounting hole
Battery
compartment
door
Return to
previous screen
Remove hole cap to
attach spring loaded
belt clip
Full access to all settings is provided through the keypad
and LCD. The transmitter can also be configured as a
"one button" device by locking the ability to make chang-
es with the keypad, and configuring the top panel switch
Audio
Input
as power on/off.
Jack
Key verification
DBu
470.100
-40 -20 +0 Menu navigation
u

Belt Clips

The wire belt clip may be removed by pulling the ends
out of the holes in the sides of the case. Be sure to have
a firm grip to avoid scratching the surface of the housing.
An optional spring-loaded, hinged belt clip (model num-
ber BCSLEBN) is also available. This clip is attached by
removing the plastic hole cap on the back of the housing
and mounting the clip with the supplied screw.

IR (infrared) Port

The IR port is available on the top of the transmitter for
quick setup using a receiver with this function available.
IR Sync will transfer the settings for frequency from the
receiver to the transmitter.
Digital Belt-Pack Transmitter
LED
Belt clip
mounting hole
USB Port
buttons
Power button
