Accessories - Lectronics IFBT4/E01-VHF Instruction Manual

IFBT4-VHF, IFBT4/E01-VHF, IFBT4-VHF/X

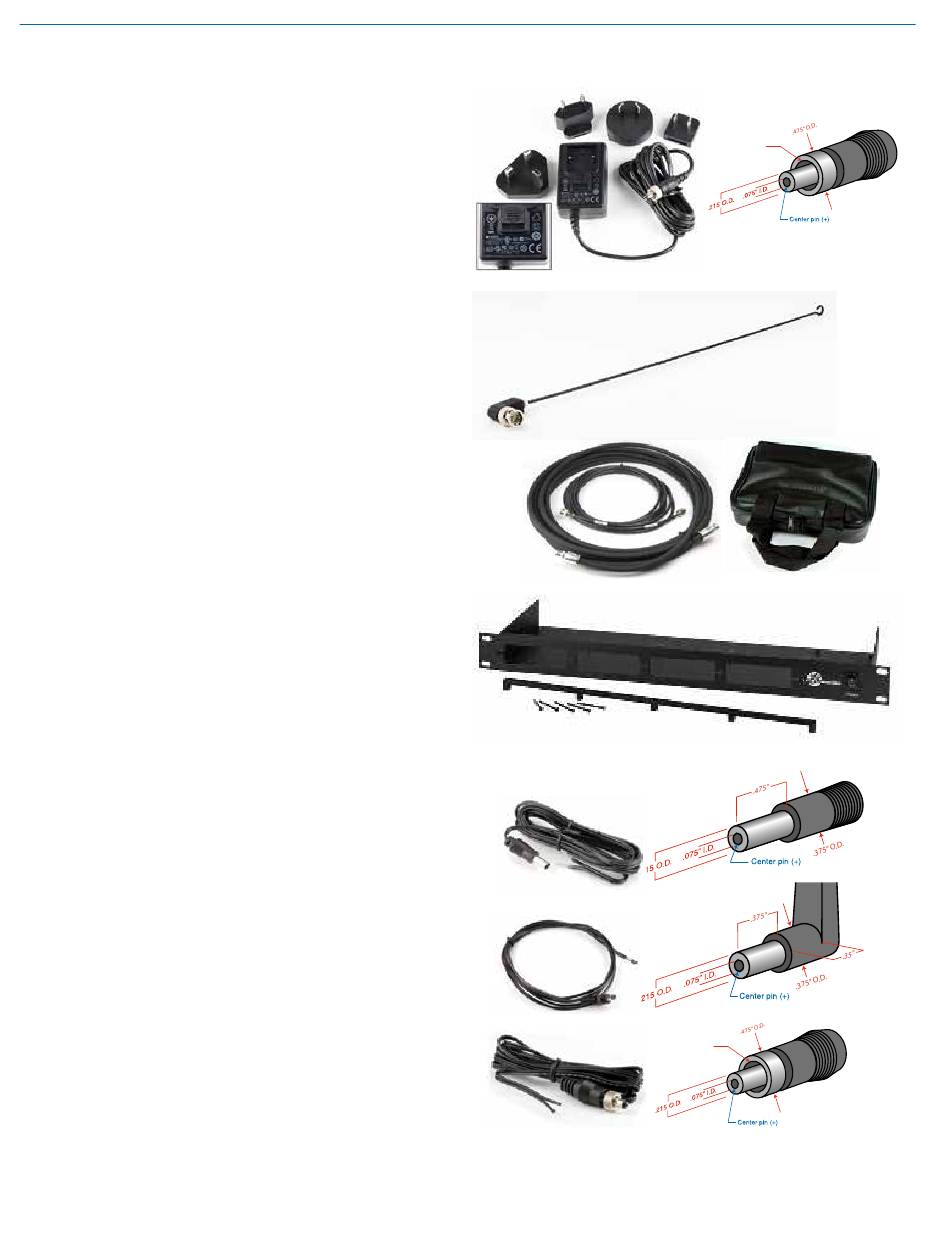

Accessories

DCR12/A5U
AC power supply for IFBT4 transmitters; 100-240
V, 50/60 Hz, 0.3 A input, 12 VDC regulated output;
7-foot cord with LZR threaded locking plug and
interchangeable blades/posts for use in Europe,
UK, Australia and USA.
A170AC
VHF straight whip antenna; right angle BNC con-
nector
ARG15
A 15 foot antenna cable of standard RG-58 coax
cable with BNC connectors at each end. Loss of 1
to 2 dB with 0.25" diameter.
ARG25/ARG50/ARG100
An antenna cable of Belden 9913F low-loss coax
cable with BNC connectors at each end. Double
shielded, flexible, 50 Ohms, with a foamed poly-
ethylene dielectric. Lower loss (1.6 to 2.3 dB) with
somewhat less weight than standard RG-8 with
the same 0.400" diameter. Available in 25, 50 and
100 foot lengths.
CCMINI
A soft sided, padded and zippered carrying case
for compact wireless systems.
RMP195
4 channel rack mount for up to four IFBT4
transmitters. Rocker switch included to work as a
master power switch if desired.
21425
6 ft. long power cord; coaxial to stripped & tinned
leads. Coaxial plug: ID-.080"; OD-.218"; Depth- .5".
Fits all compact receiver models that use CH12
power supply.
21472
6 ft. long power cord; coaxial to stripped & tinned
leads. Right angle coaxial plug: ID-.075"; OD-.218";
Depth- .375". Fits all compact receiver models that
use CH12 power supply.
21586
DC16A Pigtail power cable, LZR stripped & tinned.
10
DCR12/A5U
A170AC
ARG15
ARG25
ARG50
ARG100
21425
21472
21586
Locking collar with
5/16"-32 thread
RMP195
Locking collar with
5/16"-32 thread
LECTROSONICS, INC.
CCMINI
