HIKVISION DS-K1200 Series Connection Manual

DS-K1200 Series Card Readers Connect
Title:
to DS-K2600 Series Access Controllers
Product: Access Control Device
DS-K1200 Series Card Readers Connect to DS-K2600

Preparation

Connecting card reader to access controll is mainly applied to swiping card or fingerprints to open the
door for entering and exiting. The models of card reader and access controller in this guide are as below:

Notice

1. Please cut off power supply before wiring;

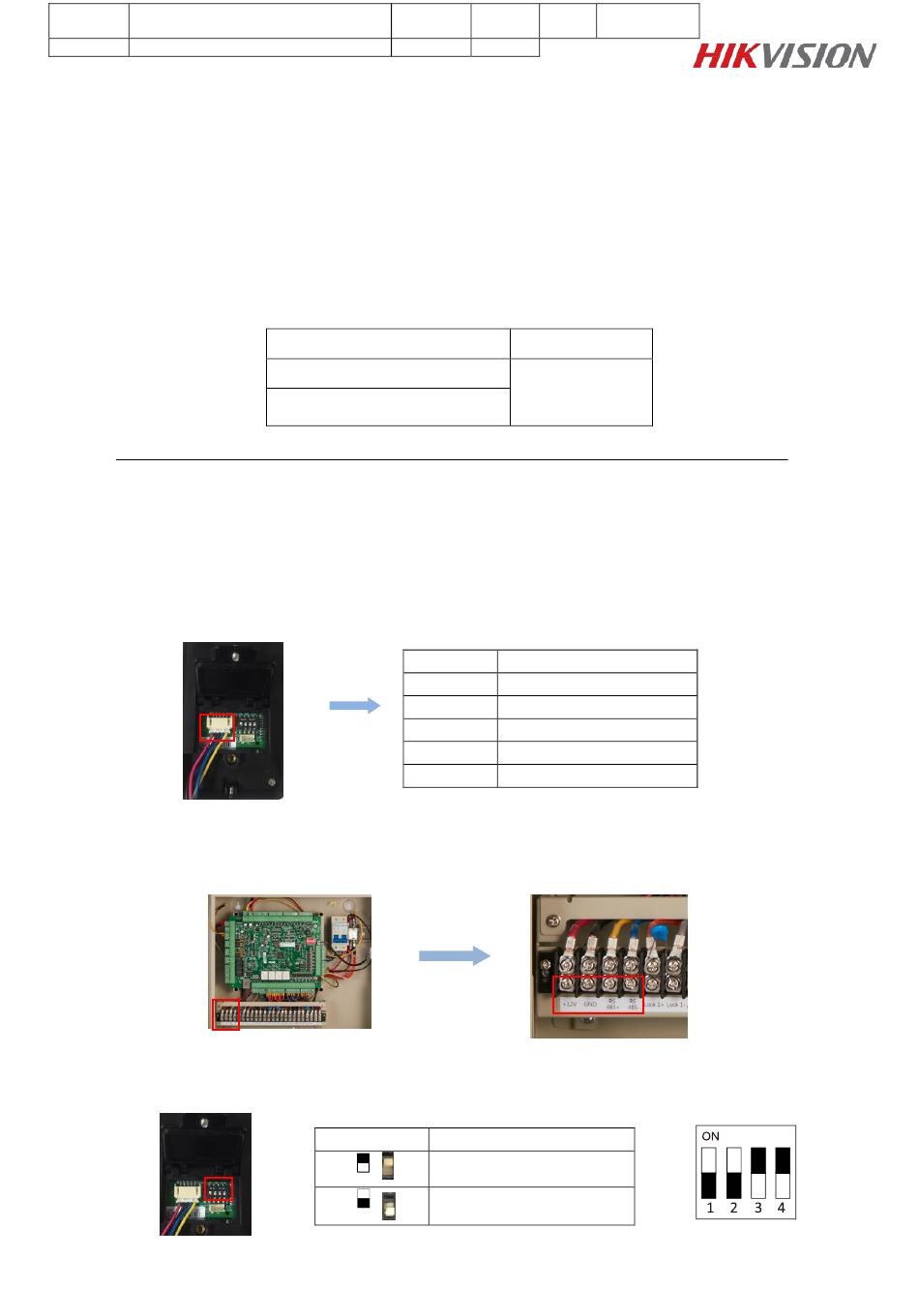

2. DS-K1200 Series Fingerprint Card Readers support private RS485 protocol; the details about RS-485
interface of fingerprint card reader are as below:
3. Correspondingly, there are RS485 interfaces in DS-K2600 series access controllers; you can find RS-
485 interface at the same position in DS-K2601/02/04 access controllers, as pictures show:
4. Please check the rear panel of card reader and unscrew it, you could find DIP switch module;
The No. of DIP switch from left to right is 1~4:
Version:
Page:
Series Access Controllers

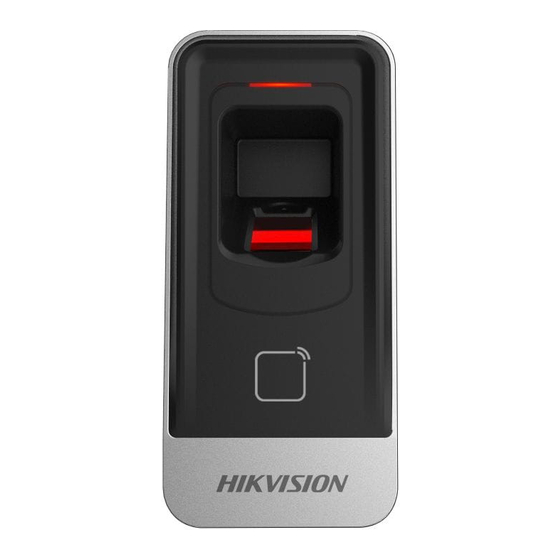

Card Reader
DS-K1200MF
DS-K1200EF
Color
Blue
Yellow
Red
Black
Black
Icon
Represent 1 in binary mode
Represent 0 in binary mode
v1.0 Date: 6/21/2017
1 of 3
Access Controller
DS-K2601,
DS-K2602,
DS-K2604
Description
RS-485 -
RS-485 +
PWR (DC +12V)
GND (Power Grounding)
GND (RS-485 Grounding)
Description
