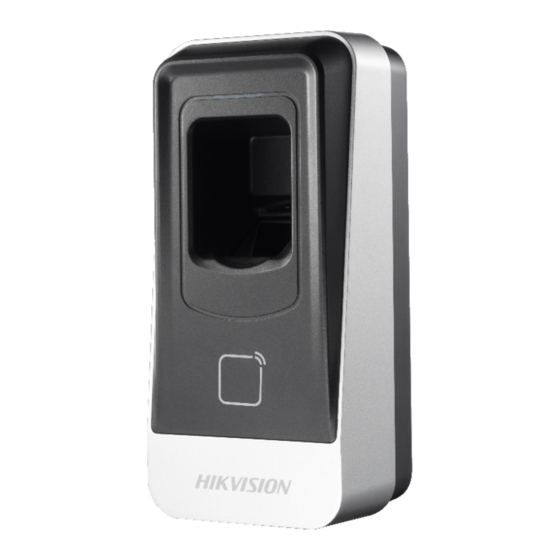

- Page 1 DS-K1201A Series Fingerprint Card Reader User Manual...
- Page 2 AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 3 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
- Page 4 DS-K1201 Fingerprint Card Reader Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 DS-K1201 Fingerprint Card Reader documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point.
- Page 6 DS-K1201 Fingerprint Card Reader If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center. If the product does not work properly, please contact your dealer or the nearest service center.
-
Page 7: Table Of Contents
DS-K1201 Fingerprint Card Reader Content Chapter 1 Introduction ..................1 1.1 Product Overview ................... 1 1.2 Product Appearance ..................1 Chapter 2 Installation..................2 2.1 Introduction for DIP Switch ................2 2.2 Definition of Cable ..................2 2.3 Wiring Cables ....................3 2.4 Installing Card Reader .................. -
Page 8: Chapter 1 Introduction
DS-K1201 Fingerprint Card Reader Chapter 1 Introduction 1.1 Product Overview Fingerprint and card reader is a kind of high-performance product, with a 32 bit high-speed processor. It communicates with access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect card reader from malicious damage. -
Page 9: Chapter 2 Installation
DS-K1201 Fingerprint Card Reader Chapter 2 Installation 2.1 Introduction for DIP Switch The DIP switch module is shown below. The No. of DIP switch from left to right is 1 to 4, representing the RS-485 address. Figure 2-1 DIP Switch Module Table 1-2 Description of DIP Switch Icon Description... -
Page 10: Wiring Cables
DS-K1201 Fingerprint Card Reader 2.3 Wiring Cables Purpose: Wire the cables between the controller and the card reader, thus to establish the communication between them. Steps for RS-485 communication mode: 1. Set the DIP switch for RS-485 address. For Details, refer to 2.1 Introduction for DIP Switch. - Page 11 DS-K1201 Fingerprint Card Reader 2. Connect the cables between the controller and the card reader. For details, refer to 2.3 Wiring Cables. 3. Unscrew the screw at the bottom of the card reader. 4. Buckle the card reader up to the plate. 5.
-
Page 12: Chapter 3 Sound Prompt And Indicator
DS-K1201 Fingerprint Card Reader Chapter 3 Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn green and blink for 1 time. Then it will turn red and blink for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed. - Page 13 DS-K1201 Fingerprint Card Reader Table 1-5 Description of LED Indicator LED Indicator Status Description Green (blink for 1 time), and red (blink The card reader is power on. for 3 times) For Card + Fingerprint authentication: prompt for pressing the fingerprint after Green and blinking swiping the card.
-
Page 14: Appendix Tips For Scanning Fingerprint
DS-K1201 Fingerprint Card Reader Appendix Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center. - Page 15 UD22704B...
