DS-K1100 Series Card Readers Connect
Title:
to DS-K2600 Series Access Controllers
by RS-485
Product:
Access Control Device

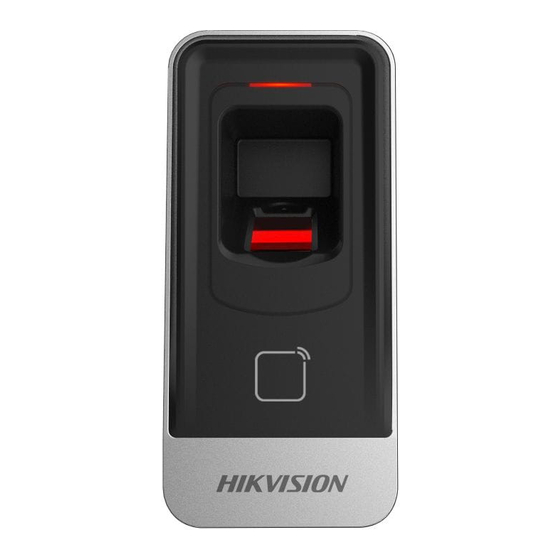

DS-K1200 Series Fingerprint Card Readers Connect to DS-
K1T200 Series Access Controll Terminal

Preparation

Connecting fingerprint card reader to access controll is mainly applied to swiping card or fingerprints to
open the door for entering and exiting. The models of card reader and access controller in this guide are
as below:

Note

If the model of access control terminal is DS-K1T105E/E-C or DS-K1T200EF/EF-C, we suggest
customers should match the following several card readers, such as DS-K1102E/EK, DS-K1107E/EK and
DS-K1108E/EK; you can find the same symbol 'E' in the access control terminal and card reader model
name, that means both devices can recognize the EM Card.
The 'M' access control terminal should be matched the 'M' card reader either, and they can recognize the
Mifare1 Card.

Notice

1.
Please cut off power supply before wiring;
2.

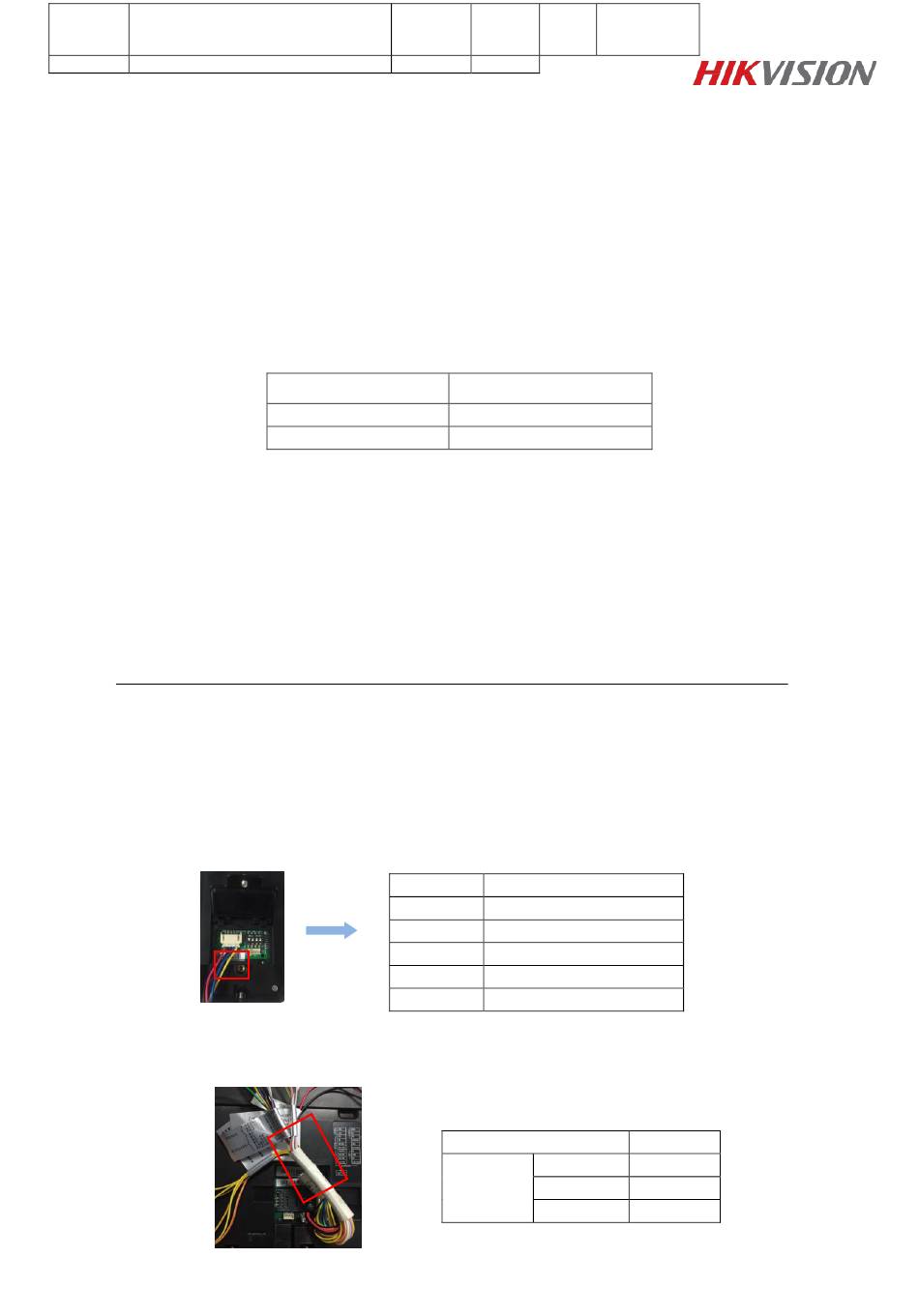

DS-K1200 Series Fingerprint Card Readers support private RS485 protocol; the details about RS-485
interface of fingerprint card reader are as below:
3.
Correspondingly, there are RS485 interfaces in DS-K1T200 series access control terminal; the details
about RS-485 interface of DS-K1T200 series access control terminal are as below:
Version:
Page:
1 of 5
Card Reader
Access Control Terminal
DS-K1200MF
DS-K1T200MF/MF-C
DS-K1200EF
Color
Blue
Yellow
Red
Black
Black
RS485
v1.0
Date:
6/21/2017
DS-K1T200EF/EF-C
Description
RS-485 -
RS-485 +
PWR (DC +12V)
GND (Power Grounding)
GND (RS-485 Grounding)
Interface
Color
RS485+
Yellow
RS485-
Blue
GND
Black
