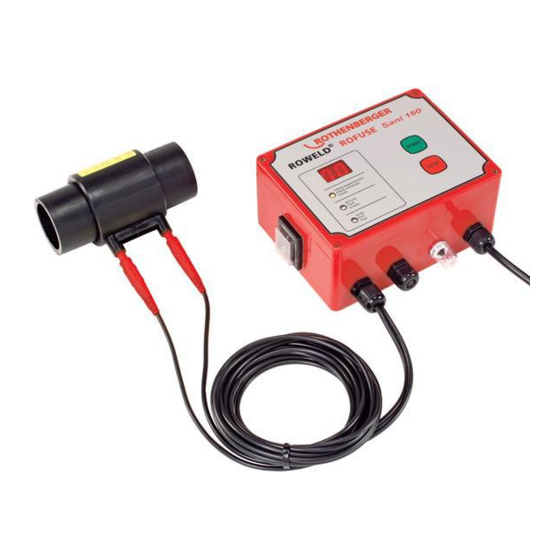

ROWELD ROFUSE Sani 160
www.rothenberger.com/manuals
5.4230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROWELD ROFUSE Sani 160 and is the answer not in the manual?

Questions and answers

Related Manuals for Rothenberger ROWELD ROFUSE Sani 160

Summary of Contents for Rothenberger ROWELD ROFUSE Sani 160

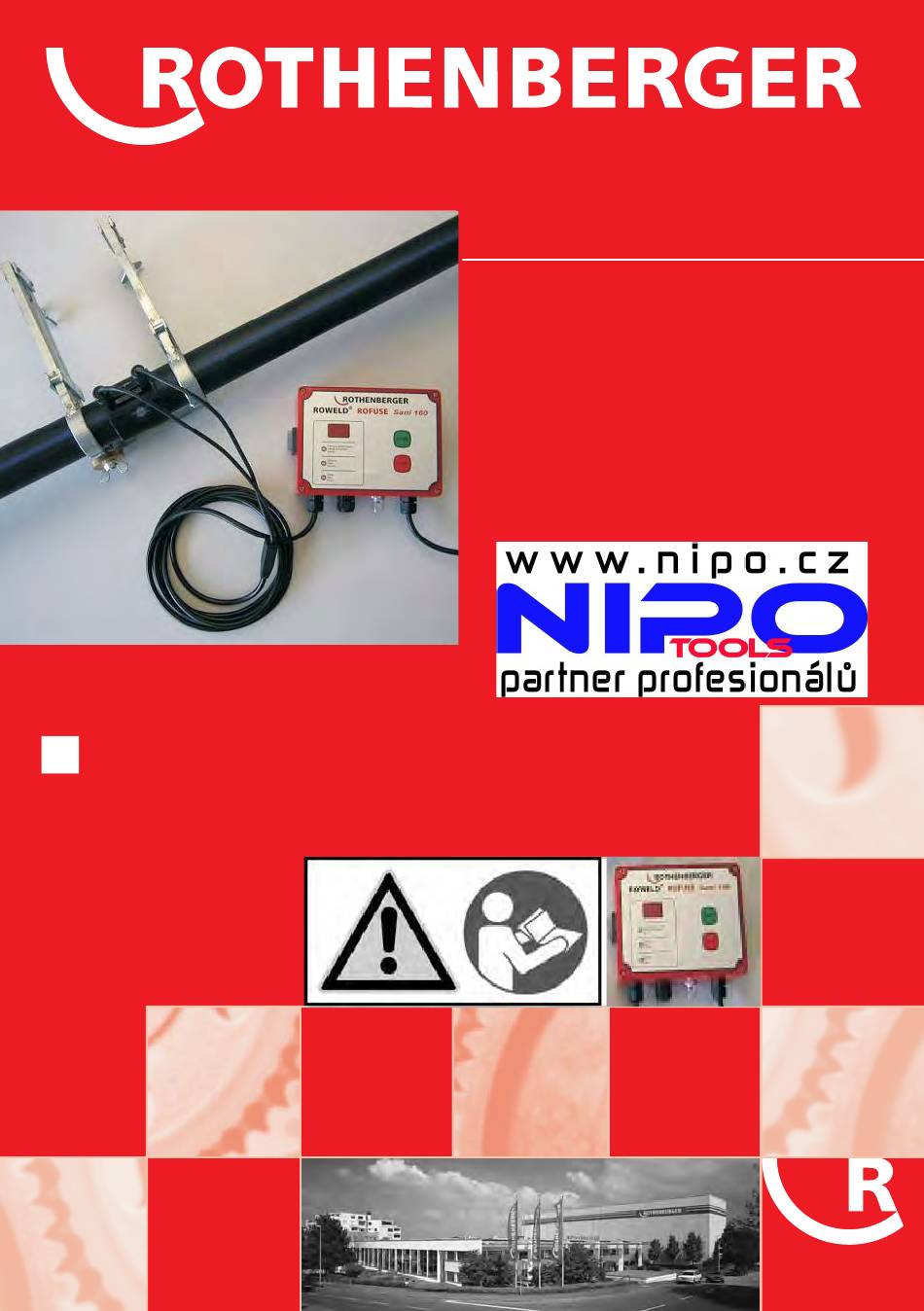

  • Page 1 ® ROWELD ROFUSE Sani 160 www.rothenberger.com/manuals 5.4230...
  • Page 2 DEUTSCH Seite 3 Bedienungsanleitung bitte lesen und aufbewahren! Nicht wegwerfen! Bei Schäden durch Bedienungsfehler erlischt die Garantie! Technische Änderungen vorbehalten! ENGLISH page 16 Please read and retain these directions for use! Do not throw them away! The warranty does not cover damage caused by incorrect use of the equipment! Subject to technical modifications! FRANÇAIS page 29...
  • Page 3 Introduction Dear Customer: Thank you very much for purchasing our product. We are confident that it will meet your expectations.  The ROWELD ROFUSE Sani 160 welding unit for electrofusion fittings is designed exclusively for joining PE discharge lines equipped with electro- fusion fittings.

  • Page 4: Safety Instructions

    Safety Instructions  When using the ROWELD ROFUSE Sani 160 welding unit, comply with the following safety instruction to protect yourself from electrocution, injuries, and fire. Read and respect these instructions entirely before using the unit and keep the safety instructions in good order. Keeping Your Work Area Orderly Keep the area you work in orderly and tidy.
  • Page 5 Opening the Unit Do not remove the cover from the welding unit. It may be opened only by specialized staff of Rothenberger or another, properly authorized partner company. Using Suitable Accessories Use only approved and properly labelled accessories (e.g., extension ca- bles).
  • Page 6 1.17 Improper Use of the Welding and Power Supply Cables  Do not carry the ROWELD ROFUSE Sani 160 by its cord and do not pull the cord to unplug the unit from the socket. Protect cord and cables from heat, oil, and cutting edges.

  • Page 7: Service And Repair

    Service and Repair As the unit is used in applications that are sensitive to safety considera- tions, it may be serviced and repaired only on our premises or by partners who were specifically trained and authorized by us. Thus, constantly high standards of operation quality and safety are maintained.

  • Page 8: Operation

    Operation General Information on the Applied Procedure Electrofusion welding is characterized by thermal fusion of the outer surface of the pipe and the inner surface of the weld fitting by heating the heater coil incorporated into the fitting. In this process, the weld fitting shrinks and thereby creates the contact pressure needed to carry out the fusion of pipe and fitting surfaces.
  • Page 9 Welding Process The welding process is monitored for its entire duration applying the welding parameters computed for the fitting. End of Welding The welding process was completed successfully if the actual welding time shown on the screen is 0, the green LED (End) is on, and at the same time the audible signal can be heard twice.

  • Page 10: Self-Monitoring Functions Overview

    Self-Monitoring Functions Overview System Error CAUTION! The welding unit has to be disconnected immediately from the power supply and the fitting. The auto-test has found an error in the system. The unit must no longer be operated and has to be turned in for check and repair.
  • Page 11 5.10 Fitting Already Welded After welding was finished, the fitting was not disconnected from the welding unit, and the user attempted to weld the same fitting a second time. ENGLISH...

  • Page 12: Troubleshooting

    Troubleshooting Nothing happens after unit was turned on, it does not execute the auto-test Possible causes: · The unit is not connected to a mains power outlet. · The switch is defective. · The power supply line is faulty. · The unit is defective.
  • Page 13 ROWELD® ROFUSE Sani 160 Technical Speci- fications Nominal Voltage 230 V Frequency 40 Hz - 70 Hz Power 1200 VA, 80 % ED Protection Index IP 44 Primary Current max. 10 A Ambient Temperature – 5 °C to + 40 °C Max.

  • Page 14: Service And Repair Contact

    Service and Repair Contact ROTHENBERGER Werkzeuge Productions GmbH Lilienthalstrasse 71 - 87 Phone: +49 (0)5602 9394 0 D 37235 Hess. Lichtenau Fax: +49 (0)5602 9394 36 Germany Web: www.rothenberger.com Accessories and Spares for ROWELD® RO- FUSE Sani 160 Aluminium Carrying Case ®...
