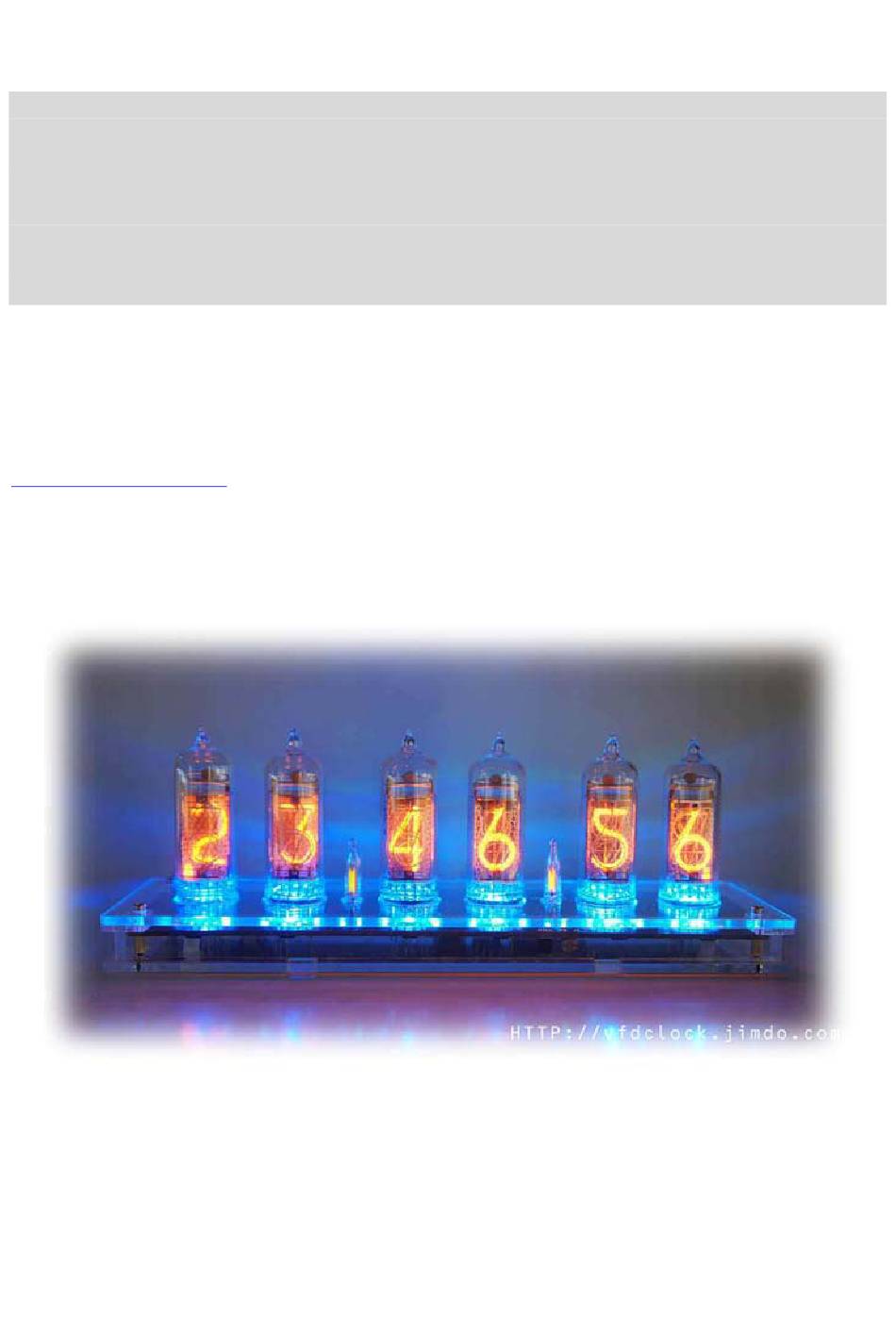

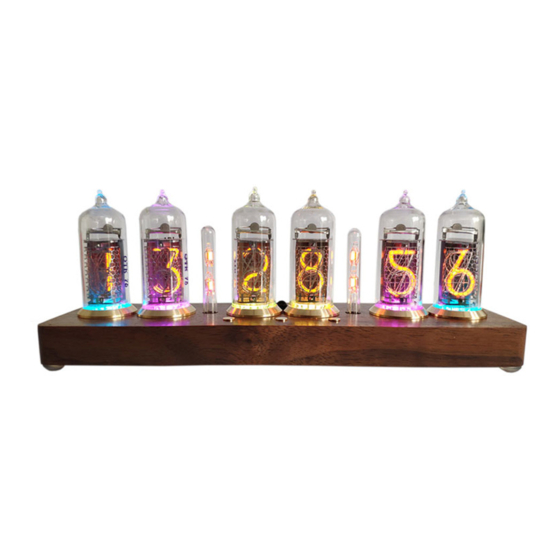

IN-14 6-Tube Digit NIXIE Clock
Quick Setup Manual
V1.2
Version: 1.2. (03-21-2015).
Download product documentation and the related software at:
http://vfdclock.jimdo.com
You can contact me via email:
zjjszhangf@gmail.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN-14 and is the answer not in the manual?

Questions and answers

Related Manuals for Nixie Clock IN-14

Summary of Contents for Nixie Clock IN-14

  • Page 1 IN-14 6-Tube Digit NIXIE Clock Quick Setup Manual V1.2 Version: 1.2. (03-21-2015). Download product documentation and the related software at: http://vfdclock.jimdo.com You can contact me via email: zjjszhangf@gmail.com...

  • Page 2: Table Of Contents

    5. Auto Power ON/OFF Display Mode....................5 6. Timing related Setting Mode (Optional)................5 7. Misc Mode..............................6 7. Version Display Mode........................6 About the noise............................6 Infra Red (IR) Remote Controller functions:................7 6-Tube Digit Nixie Clock Operations Cheat Sheet ..............8 Install the new tube.............................11...

  • Page 3: Notice

    Can display week info too. 6).Support 7 different Effects: Normal/ Fading/ Cross Fading/Slow Fading /Flash /Loop /Random Loop for displaying time. All the segments in the IN-14 tube can be lighted up, include the Left & right dots; Support 5 different dot effects.

  • Page 4: Turn Power On/Off

    11).8-level adjustable NIXIE tube bright with Auto-brightness feature (it is able to adjust the tube brightness depending on the current environment). 12).Rechargeable Backup Battery or Farad capacitor keeps RTC running during power outages. 13).Tri-colored RGB LED mounted under the each NIXIE tube. These LEDs can display different colors at the same time, with a lot of pre-defined auto color change effects.

  • Page 5: Quick Start Guide For Setting Up The Current Time

    Quick Start Guide for setting up the current time When the power on, the clock displays the current time. If the time it displays is not correct, you need to set it by yourself. Here is the quick guide for you to set the current time.

  • Page 6: Date Display Mode

    [Dots Effect: ..xx..]: 00: No dots effect/ 01: Ping-Pong A / 02: Ping-Pong B /03: LEFT-RIGHT /04: Flash /05: All dots Fading/06: Left and Right dots Fading; [Time Format]:24(24H without 0-leading)/024(24H with 0-leading)/12(12H)/012(12H with 0-leading)/ [.012] (12H with dot as PM); [Set Hour]: set time hour in [0~23];...

  • Page 7: Alarm Display Mode

    Note: This Mode may not exist or will display 0.00 with no temperature sensor installed! 4. Alarm Display Mode Same, click the [+] button, switch to the [ALERT DISPLAY Mode 1/2/3]; The clock supports 3 individually alarms with weekends ON/OFF; .00.]: displays the first alarm information.

  • Page 8: Misc Mode

    [Time Zone Minute:.3.2.]: Set the time zone minute , selectable 00/30/50 ; 7. Misc Mode For masc. mode, it displays the [.4.] as index. Long click the [SET] button you can enter the miscellanies setting mode. [Set NIXIE Brightness:.4.1.]: 0(Auto-Brightness)/[1~8] for brightness(8 is the brightest);...

  • Page 9: Infra Red (Ir) Remote Controller Functions

    [0~9] : Press the buttons to change the values directly. Tips: Any IR keys can turn on the nixie clock for about 3 seconds when the clock is on the soft power off mode; If you are trying to use the remote control for the first time, unplug the plastic film in the battery case.

  • Page 10: 6-Tube Digit Nixie Clock Operations Cheat Sheet

    6-Tube Digit Nixie Clock Operations Cheat Sheet Level Operation set with [+] Level Level Long Enter Time Display Mode [.0.x] [SET] [Display Effect 0:x]: 00:Normal/01:Fading/02:Cross Fading/03:Slow Fading /04:Flash /05:Loop/06:Random Loop; [SET] [Dots Effect: ..xx..]: 00: No dots effect/ 01: Ping-Pong A / 02: Ping-Pong B /03: LEFT-RIGHT /04: Flash /05: All dots Fading/06: Left and Right dots Fading;...
  • Page 11 [SET] [Set Turn On Hour]: set auto turn on hour in [00~23]; [SET] [Set Turn On Minute]: set auto turn on minute in [00~59]; [SET] [Set Turn Off Hour]: set auto turn off hour in [00~23]; [SET] [Set Turn Off Minute]: set auto turn off minute in [00~59];...
  • Page 12 default, and the clock will auto reboot itself when finished. [SET]=Left Button; [+]= Middle Button; [-]= Right Button;...

  • Page 13: Install The New Tube

    Install the new tube If you want to change the tube or install the new tube by yourself. here is the step: Cut the IN-14 NIXIE tube's legs into right length, usually 10mm length recommended. Then "needle-nose pliers" or other tools...
  • Page 14 The State Machine of 6-Tube IN-14 NIXIE Clock V1.2...
