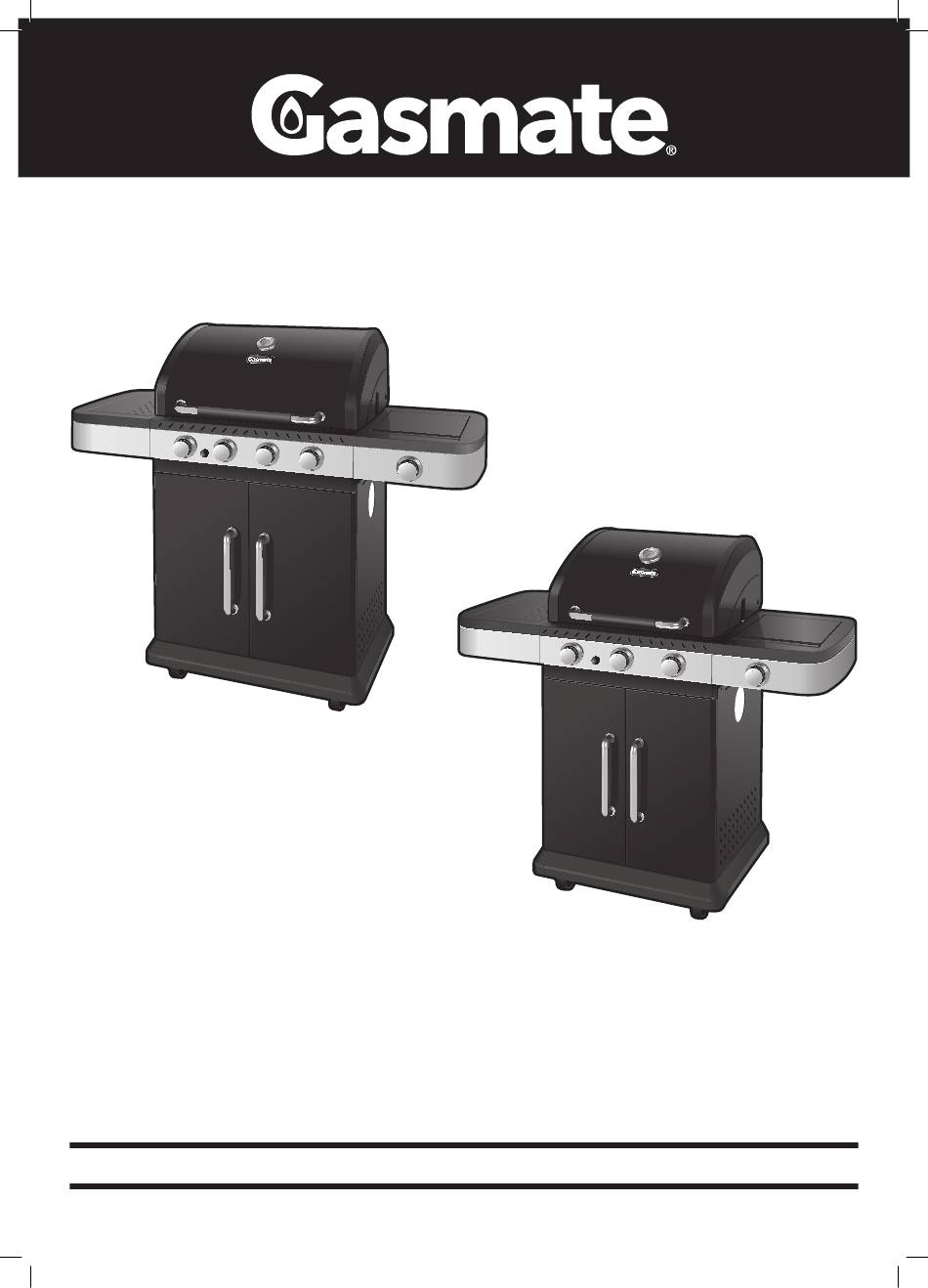

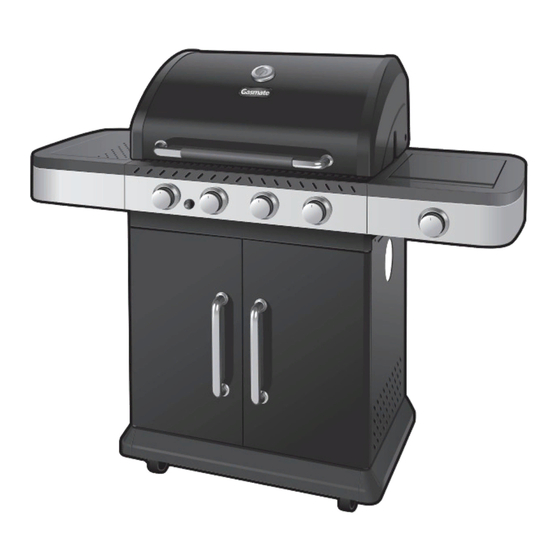

- Page 1 Callisto Gas BBQ Model No. GM172-138 Model No. GM172-137 FOR OUTDOOR USE ONLY - OPERATES ON LPG Retain these instructions for future use. Important: The installer or seller must leave these instructions with the consumer. 4979-06/18...
-
Page 2: General Information
GENERAL INFORMATION Gas Cylinder Use & Safety IMPORTANT This is a low pressure barbecue and must only be used Read these instruction carefully prior to use. with the hose and regulator supplied. Your barbecue is Familiarise yourself with the appliance before designed for use with 9Kg LPG cylinders. - Page 3 GENERAL INFORMATION FOR YOUR SAFETY • Never alter or modify the regulator or gas supply Failure to comply with these instructions could result assembly. in a fire or explosion which could cause serious bodily injury, death or property damage. • This barbecue must not be used indoors. CAUTION: Accessible parts may be •...
-
Page 4: Protect Children
GENERAL INFORMATION Location of your Barbecue Tools You Will Need Standard Phillips-head screw driver (or cordless drill and DO NOT use your barbecue in garages, porches, bits) and Adjustable spanner (open ended shifter) or breezeways, sheds or other enclosed areas. Your barbecue spanners. - Page 5 EXPLODED DIAGRAM - 3 BURNER Model No. GM172-137 1. x4 2. x1 3. x2 4. x1 5. x2 6. x2 7. x1 8. x1 9. x2 10. x2 11. x2 12. x1 13. x1 14. x1 15. x1 16. x1 17.
- Page 6 EXPLODED DIAGRAM - 4 BURNER Model No. GM172-138 1. x4 2. x1 3. x2 4. x1 5. x2 6. x2 7. x1 8. x1 9. x2 10. x2 11. x2 12. x1 13. x1 14. x1 15. x1 16. x1 17.
- Page 7 ASSEMBLY INSTRUCTIONS Step 1 Step 2 Fix castor wheels (1) to the base panel (2) using Attach left and right cabinet side panels (11) to the base 4 x M5x10 screws (B) per castor. using 6 x M5x10 screws (B). Ensure the panels are flush with the back of the base panel.
- Page 8 ASSEMBLY INSTRUCTIONS Step 5 Step 6 Secure the cabinet side top panels (5) to the inside of the With the help of a friend place the body assembly (20) cabinet side panels using 2 x M5x10 screws (B) each side. onto the top of the cabinet assembly.
- Page 9 ASSEMBLY INSTRUCTIONS Step 9 Step 10 Attach the cabinet door handles (10) to each door (11) Secure the cabinet door rod (9) through the holes at the using 2 x M6x12 screws and 2 x washers (A) for each door. top and bottom of the door frame on each side as shown.
- Page 10 ASSEMBLY INSTRUCTIONS Step 13 Step 14 Secure the bottom of the side shelf assemblies fully by Secure the fire box to the side shelves using 3 x M5x10 tightening the screws from Step 11, and in addition add screws (B) each side. 8 x M5x10 screws (B) into the holes provided and tighten.
- Page 11 ASSEMBLY INSTRUCTIONS Step 17 Step 18 Attach ignition lead to the bottom of the side burner igniter Insert flame tamers (22) into the body assembly over the point (18). Ensure the ignition lead is secure. burners. Step 19 Step 20 Insert warming rack (24) into the holes by hooking tabs at Then add cast iron grill (23) and cast iron hot plate (25).
- Page 12 ASSEMBLY INSTRUCTIONS Step 21 Step 22 Locate the fat cup (14) from the rear of the barbecue, Attach the hood handle (12) to the hood using 2 x washers secure in the slot as shown. (I) and 2 x M6x12 screws. Step 23 Step 24 Attach the thermometer (13) to the hood as shown.
- Page 13 ASSEMBLY INSTRUCTIONS Step 25 Step 26 Step 25 Step 25 Step 26 Step 26 Step 25 Step 25 Step 26 Step 26 Attach the regulator to your gas cylinder. Attach the regulator to your gas cylinder. Turn on the gas cylinder ensuring that all of the Turn on the gas cylinder ensuring that all of the Attach the regulator to your gas cylinder.
- Page 14 GENERAL INFORMATION Regulator Safety Feature Connecting & Disconnecting to Gas Source All QCC regulators (the part that attaches to the gas IMPORTANT: cylinder to regulate the flow of gas) have a safety feature included that restricts gas flow in the event of a gas leak. •...
-
Page 15: Lighting Procedure
LIGHTING PROCEDURE Before lighting your barbecue for the first time, read the IMPORTANT: instructions fully to ensure the barbecue is assembled correctly and is ready for use. • Note: If for some reason, ignitor fails to produce a spark at the electrode, barbecue can be lit by Burner Operation &... -
Page 16: Operating Procedure
Burner Operation & Ignition System Check Problem Possible Reason Solution Valve on cylinder is closed Open valve on cylinder Burner will not ignite Control knob is closed Turn knob to high when lighting Piezo igniter is faulty Use a long barbecue match Burner has gone out Check that the gas bottle is not empty and re-ignite the burner... -
Page 17: Care And Maintenance
CARE & MAINTENANCE As with all appliances, proper care and maintenance will IMPORTANT: keep them in top operating condition and prolong their life. Your new gas barbecue is no exception. By following these • Beware of spiders and wasps. Burner tube cleaning procedures on a timely basis, your barbecue will should be inspected and cleaned periodically. - Page 18 figures - the same principles apply to any other shaped area. the same principles apply to any other shaped area. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Gasmate is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au...
- Page 19 This page has been left intentionaly blank...
