GRUNDFOS INSTRUCTIONS

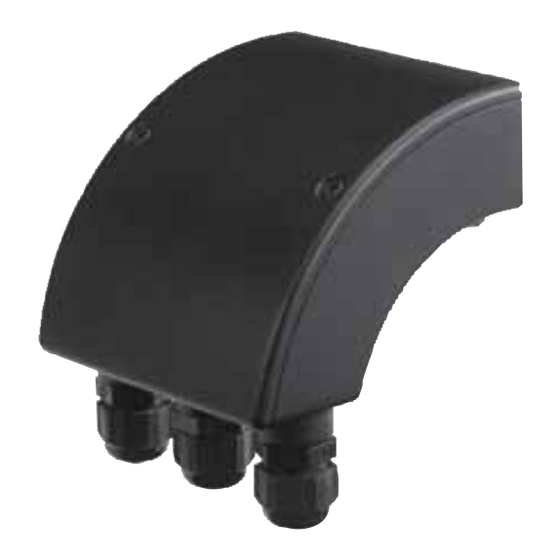

Grundfos MAGNA, Relay Module
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGNA and is the answer not in the manual?

Questions and answers

Related Manuals for Grundfos MAGNA

Summary of Contents for Grundfos MAGNA

  • Page 1 GRUNDFOS INSTRUCTIONS Grundfos MAGNA, Relay Module Installation and operating instructions...
  • Page 3 Grundfos MAGNA, Relay Module Installation and operating instructions...
  • Page 4 LIMITED WARRANTY Products manufactured by GRUNDFOS PUMPS CORPORATION (Grundfos) are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of manufacture. Grundfos' liability under this warranty shall be limited to repairing or replacing at Grundfos' option, without charge, F.O.B.

  • Page 5: Table Of Contents

    Original installation and operating instructions. CONTENTS Page Symbols used in this document Connection Mounting 4.1 Connecting the cables 4.2 Mounting the module External start/stop Signal relay 6.1 Fault indication 6.2 Ready indication 6.3 Operating indication 6.4 Functional diagram Priority of settings Fault finding chart 8.1 Checking the module Technical data...

  • Page 6: Symbols Used In This Document

    2. General description The relay module is an expansion module for circulator pumps GRUNDFOS MAGNA 32-100. The relay module is used for the control and monitoring of the pump. The pump can be started/stopped via an external relay and give fault, ready or operating indication.

  • Page 7: Connection

    3. Connection The electrical connection and protection must be carried out in accordance with local regulations. The relay module is powered wirelessly from the pump. To ensure correct function, follow the instructions in section 4.2 Mounting the module. Connect the module as shown in fig. 1. •...

  • Page 8: Mounting

    4. Mounting 4.1 Connecting the cables Fig. 2 Cable connection...

  • Page 9: Mounting The Module

    4.2 Mounting the module 1. Align the two hooks on the module. 2. Gently push the module into place so that the hooks engage with the control box. 3. Check that the module and the control box touch each other. 4.

  • Page 10: External Start/Stop

    6. Correctly mounted module. 5. External start/stop The relay module incorporates a digital input for an external contact. The pump can be started and stopped via this input. When started, the pump will operate with the setpoint set on the control panel or with the R100.

  • Page 11: Signal Relay

    The last five faults can be called up with the R100. In case of a fault, the red indicator light on the control panel is on. Note See installation and operating instructions for GRUNDFOS MAGNA 32-100.

  • Page 12: Ready Indication

    6.2 Ready indication The signal relay is active when the pump is in operation or ready for operation. See section 6.4 Functional diagram. 6.3 Operating indication The signal relay is active as long as the pump is operating. If the pump is stopped on the control panel, with the R100 or because of a fault, the signal relay is deactivated and consequently gives a signal to an external control system, e.g.

  • Page 13: Priority Of Settings

    7. Priority of settings The external forced-control signals will influence the settings available on the pump control panel and with the R100. However, the pump can always be set to max. curve duty or to stop on the control panel or with the R100.

  • Page 14: Fault Finding Chart

    8. Fault finding chart Before starting any work on the module, make sure that the electricity supply to the pump and the module has been switched off and that it cannot be accidentally switched on. Fault Cause Remedy The pump does The wires are not Connect the wires not react to...

  • Page 15: Checking The Module

    8.1 Checking the module Illustration Action 1. Remove the module cover. 2. Check the LEDs. When the pump is switched on and the module is correctly mounted, the left LED must be Flashing flashing and the Permanently on right LED must be permanently on.
  • Page 17 U.S.A. Canada México GRUNDFOS Pumps GRUNDFOS Canada Inc. Bombas GRUNDFOS de 17100 West 118th Terrace 2941 Brighton Road México S.A. de C.V. Olathe, Kansas 66061 Oakville, Ontario Boulevard TLC No. 15 Phone: +1-913-227-3400 L6H 6C9 Parque Industrial Stiva Fax: +1-913-227-3500...
  • Page 21 Innovation is the essence L-MAG-TL-05 0910 97758319 0910 © 2009-2010 Grundfos Pumps Corp. The name Grundfos, the Grundfos logo, and the payoff Be–Think–Innovate are registrated trademarks owned by Grundfos Management A/S or Grundfos A/S, Denmark. All rights reserved worldwide. www.grundfos.com...
