DENTAL CHAIR
This manual provides operating instructions for the BEL-50N Chair.
The instructions contained in this booklet should be thoroughly read and
understood before operating the chair.
After the installation has been completed, keep this manual in a safe place and
refer to it for future maintenance.
OPERATING
INSTRUCTIONS
IMPORTANT
BEL-50N
R
AEFS98D0

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-Calibur V BEL-50N and is the answer not in the manual?

Questions and answers

Related Manuals for Belmont X-Calibur V BEL-50N

Summary of Contents for Belmont X-Calibur V BEL-50N

  • Page 1 BEL-50N DENTAL CHAIR OPERATING INSTRUCTIONS IMPORTANT This manual provides operating instructions for the BEL-50N Chair. The instructions contained in this booklet should be thoroughly read and understood before operating the chair. After the installation has been completed, keep this manual in a safe place and refer to it for future maintenance.
  • Page 2 Table of Contents 1. Overview and major components ----------------------------------------------- 1 2. Dimensions and Specifications -------------------------------------------------- 2A 3. Operations ------------------------------------------------------------------------- 3 4. Care and Maintenance ----------------------------------------------------------- 6 Intended Use of the Product This product is intended for the exclusive use for diagnoses, treatments and relative procedures of dentistry, and must be operated or handled by the qualified dentists or by dental staffs under the supervision of the dentist.Such dentists or dental staffs should instruct and/or assist the patients to approach to and leave from the product.
  • Page 3 CAUTION • This chair is intended to be used for dental examination and treatment. Do not use this for any other pur- pose than examination or treatment. • Only a trained and qualifi ed personnel should operate this chair. • Follow all the safety precautions and instruction to protect patients and operators.

  • Page 4: Overview And Major Components

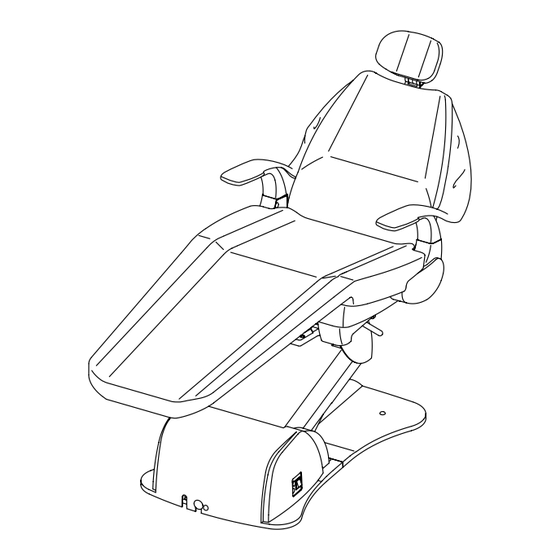

    1. OVERVIEW AND MAJOR COMPONENTS Figure 1 1. Headrest Assembly 9. Seat Cushion 17. Sub Link Cover(Lower) 2. Backrest Cushion 10.Backrest Cover 18. Main Power Switch 3. Armrest 11.Seat Back Support 19. Fuse Holder 4. Main Link Cover 12.Dome Casting Cover 20.

  • Page 5: Dimensions And Specifications

    2. DIMENSION AND SPECIFICATIONS 2-1. Dimensions (Inches) 74-1/4 23-5/8 18-1/2 5-1/4 17-9/16 34-3/4 74-1/4 15-7/8 34-3/4 22-1/4 23-1/4 23-7/8 24-1/2 34-3/4 70˚ 20˚ 6˚ 20˚ 6˚ 10˚ 34-3/4 22-1/4 2-2. Specifications * Power sealed hydraulic system powered by 3.5 A motor pump * Base plate: 1/2"...

  • Page 6: Operations

    3. OPERATIONS CAUTION Before use • Check connection of swtiches and make sure that the device functions properly. • Make sure that grounding wire is connected. • Make sure that cables are properly and perfectly connected. • Be careful when you use the equipment combined with another, as it may lead to inadequate decision or danger.
  • Page 7 Backrest Foot Control Control 3-2. Controls 1) Seat Height Adjustments a. Raise the seat by pressing foot, backrest or touchpad control labeled with a chair symbol identified by an arrow pointing in the UP direction. b. Lower the seat by pressing foot, backrest or touchpad control labeled with a chair symbol identified by an arrow pointing in the DOWN direction.
  • Page 8 3) Cancellation a. Safety plate is provided below base link cover to stop motion of chair when object is accidentally caught underneath. b. Automatic motion activated either by automatic return switch or preset switch, can be cancelled at any time by depressing any control switches. 4) Headrest Adjustment a.

  • Page 9: Care And Maintenance

    4. CARE AND MAINTENANCE 4. CARE AND MAINTENANCE 4-1. Cleaning and disinfection 4-1 Cleaning and disinfection CAUTION Do not spray liquids directly onto chair surfaces. In order to prevent damage to electrical components and systems, do not apply excess cleaning solution onto chair surfaces.
  • Page 10 4-3. Daily Check-up of functions by the end user 4-3 Daily Check-up of functions by the end user The end-user is responsible for daily check-up of the equipment. In the case end user does not do this, it is allowed that you outsource it to a technician authorized by us. In order to assure safety use of this equipment, please carry out the following check-up in a frequency as indicated below.
  • Page 11 4-4 Guideline for Periodical Check-up 4-4. Guideline for Periodical Check-up • Some parts and components of the products are degraded or deteriorated depending on the frequency of use, so yearly check-up and maintenance, as well as replacement of comsumable parts, are required. •...
  • Page 12 Follow the installation manual enclosed with this manual for details of installation. Company or person authorized to install this equipment Name : Address : BELMONT EQUIPMENT, Division of Takara Belmont, USA, Inc. 101 Belmont Drive Somerset, New Jersey 08873 U.S.A. TEL.:(732)469-5000 / (800)223-1192 Fax.:(732)356-1035 www.belmontequip.com...
