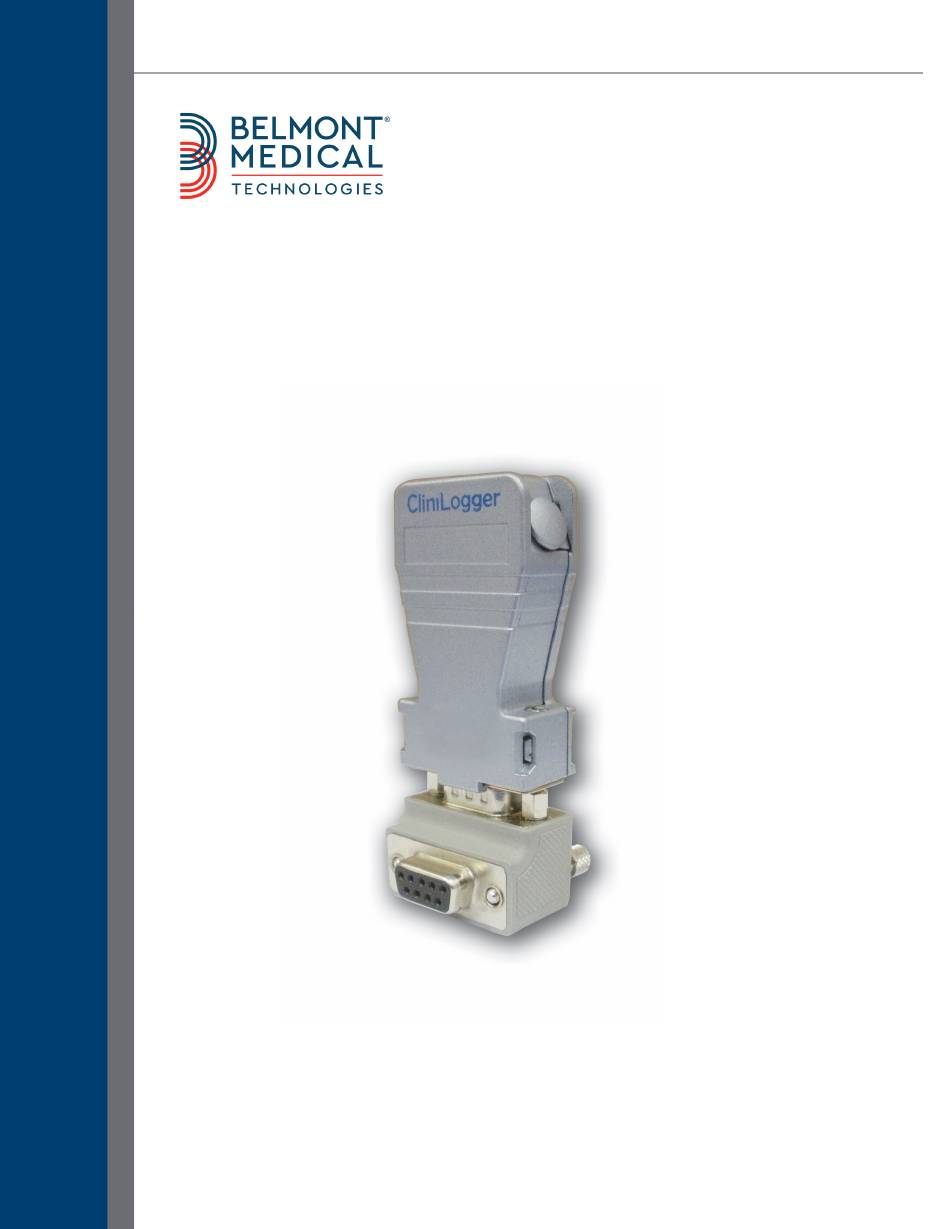

- Page 1 ™ CliniLogger Installation and Operating Instructions ™ ™ ™ ™ CliniLogger CliniLogger CliniLogger CliniLogger User Manual User Manual User Manual User Manual DDA-241-000 Rev F...
- Page 2 ™ CliniLogger Installation and Operating Instructions Belmont Medical Technologies 780 Boston Road Billerica, MA 01821 USA Technical Service 855.397.4547 (USA) +1.978.663.0212 (Worldwide) www.BelmontMedTech.com Emergo Europe BV Prinsessegracht 20 2514 AP The Hague The Netherlands +31 (0) 70 345 8570...
-
Page 3: Overview And Installation
The purpose of the CliniLogger device is to save the CritiCool / Allon ™ systems' vital data for further reference. By means of the CliniLogger Viewer software, the user can use an external PC to review this saved data. ™... - Page 4 ™ CliniLogger Installation and Operating Instructions ™ CliniLogger Initialization When initialization finishes the following screen appears: ™ CliniLogger Installation ©2020 Belmont Medical Technologies CliniLogger...
- Page 5 6. Select I accept the above License Agreement(s) to accept the license agreements and click Next. The Start Installation window appears. Start Installation. 7. Click Next; you can follow the installation progress in the progress bars until it finishes. ©2020 Belmont Medical Technologies CliniLogger...
- Page 6 ™ CliniLogger Installation and Operating Instructions Installation in Progress When the installation is finished, the Installation Complete window appears: Installation Complete. ©2020 Belmont Medical Technologies CliniLogger...
- Page 7 9. Click Finish to complete and exit the software installation. 10. Copy "User Ver XX" folder from CD to your desktop. 11. You can now open "User Ver XX." folder and click the CliniLogger.exe file to start the application. ©2020 Belmont Medical Technologies CliniLogger...
-
Page 8: Downloading Data
You can download data from the CliniLogger Device to the CliniLogger Viewer Application on the PC. ™ To start the CliniLogger application: 1. From the Windows Start menu, click Programs > CliniLogger. ™ ™ 2. Click on the CliniLogger icon; the CliniLogger window appears. - Page 9 8. You can also click Convert to Excel to present the data in Excel format. 9. Click Clear logger after saving the data to prepare the device for the next use. ™ IMPORTANT! You should erase the data on the CliniLogger manually ™...
- Page 10 ™ CliniLogger Installation and Operating Instructions 2. Click Load stored data and choose the file you would like to view. ©2020 Belmont Medical Technologies CliniLogger...
- Page 11 When the data has been loaded, the “Complete” message appears Complete Message. 3. Click View data - the graph opens. 4. To convert to Excel, click Convert to Excel – the data is presented in Excel format. ©2020 Belmont Medical Technologies CliniLogger...
- Page 12 ® ® (CritiCool / Allon Software version of the thermoregulation device • Close Window button • Function Selection area: control keys • Graphic Display area with a graphic presentation of the • Thermoregulation system variables. ©2020 Belmont Medical Technologies CliniLogger...
-
Page 13: Graphic Display Area
Temperature graphs: Set-point, Core and Surface as a function of time • Modes and Error area: Thermoregulation modes, rewarming step and • errors as a function of time Device Functional Status area: Heat/Cool and Pump On/Off • ©2020 Belmont Medical Technologies CliniLogger... - Page 14 Temperature Settings Wrap Settings Errors/TempStep Settings Example: Modes and Errors Area. Temperature graph control buttons enable modifying the display of each of the temperature graphs. ©2020 Belmont Medical Technologies CliniLogger...
- Page 15 X and move the cursor to the Temperature graph; Y directions the cursor image changes to the button icon. Click the mouse to zoom out. You can click again to zoom out again. ©2020 Belmont Medical Technologies CliniLogger...
- Page 16 Temperature scale. NOTE: To return to the original display, click the unzoom button Cursor Line The values of the temperatures at the cursor line location appear in the window adjacent to the curve color window ©2020 Belmont Medical Technologies CliniLogger...
- Page 17 Error: Period with no control, in the example due to system pause (yellow markings). Example of Modes and Error Area. Mode Codes Code Indicates PowerUp Cooling Adult PowerUp Cooling Neonate PowerUp Warming Adult PowerUp Warming Neonate ©2020 Belmont Medical Technologies CliniLogger...
- Page 18 When the device is warming the water in the tank- the line is red. Pump On/Off- When the pump is pumping water into the Wrap, the line is ® green. When CritiCool is circulating the water internally (i.e. in "Standby mode"), the line is white. ©2020 Belmont Medical Technologies CliniLogger...
- Page 19 CliniLogger Installation and Operating Instructions Converting to Excel To convert to Excel: ™ 1. On the CliniLogger menu panel select Convert to Excel; an Excel file opens with two options: Measurement Table (Sheet 1) Section of Excel Table Graphic Chart...
- Page 20 Note: The Technician Software can only be run after performing a full installation of the User Software. See ‘Installing the Software’ section for more information on this process. Installation Procedure: Copy the folder “900-00350 CliniLogger Viewer Software_Tech v1.6.3” from the • CD to a location on the desired PC Run the CliniLogger tech.exe application...
