Premier Mounts Low-Profile Dedicated Projector Mount PDS-022 Installation Instructions

PDS-022 Projector Bracket Installation Instructions
PDS-022 Bracket
(Qty 1)
Premier Mounts
3130 E. Miraloma Ave.
Anaheim, CA 92806
Phone: (800) 368-9700 Fax: (800) 832-4888
techsupport@mounts.com www.mounts.com

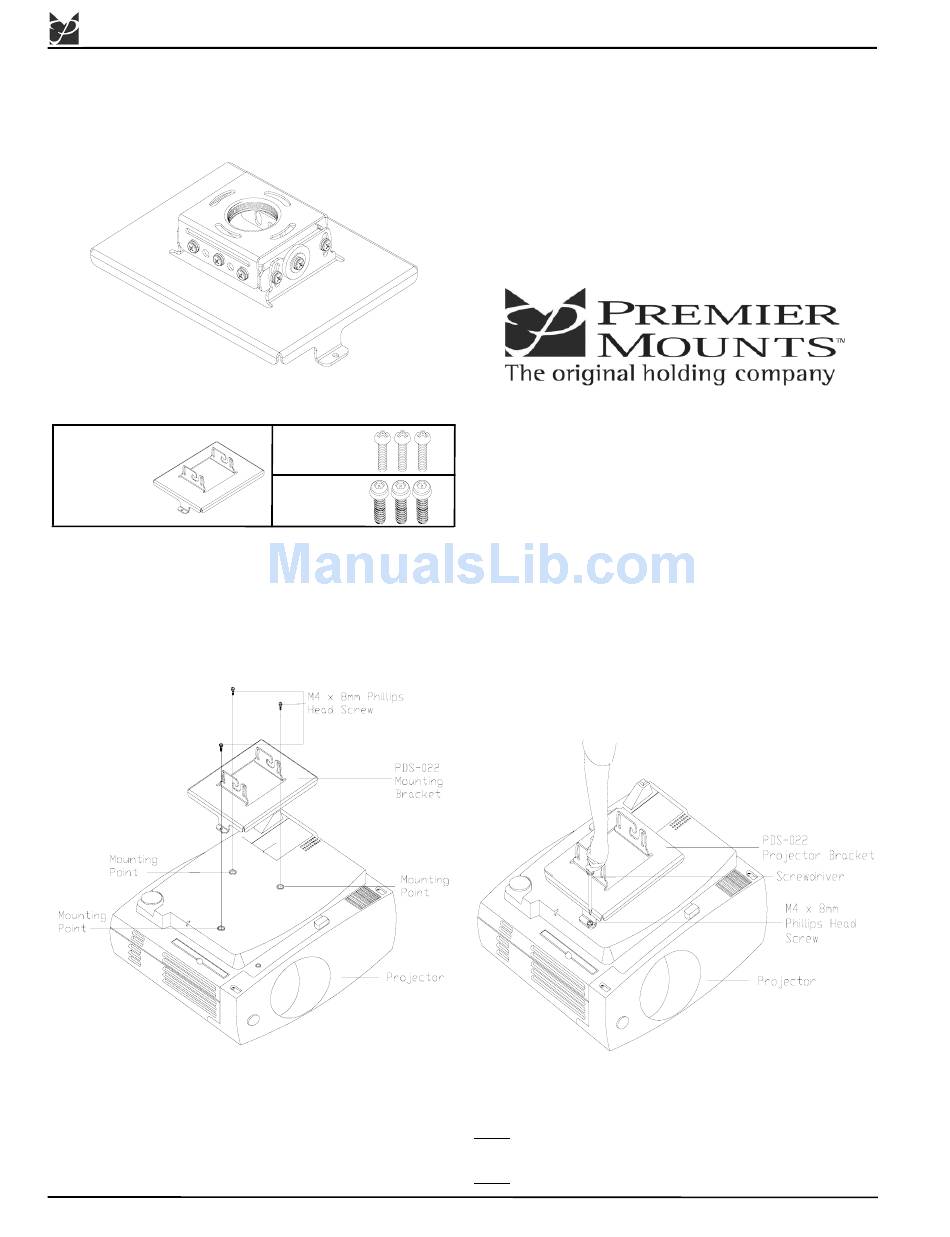

1. Invert the projector and place it on a soft and flat surface. Remove any foot
levelers that might possibly prevent the correct installation of the bracket.
2. Locate the three mounting points located on the bottom of the projector.
3. Line up the mounting points on the projector with the mounting holes on
the PDS-022 mounting bracket.

Installation Instructions

IN-PDS022.R0
M4 x 8mm Phillips
Head Screws
(Qty 3)
M4 x 8mm Security
Head Screws
(Qty 3)
1. Using a screwdriver, secure the PDS-022 mounting bracket using three (3)
M4 x 8mm Phillips Head screws. Do not over tighten these screws.
Overtightening the screws may result in damaging the threaded inserts on
the projector.
NOTE: Please refer to the PDS Base Box Installation Instructions to attach
the PDS Base Box to the PDS-022 mounting bracket.
NOTE: The projector (shown above) is for illustration purposes only.
PDS-022 Projector Bracket
Page 1
