PDS-009 Projector Bracket Installation Instructions
PDS-009 Bracket
(Qty 1)
Premier Mounts
3130 E. Miraloma Ave.
Anaheim, CA 92806
Phone: (800) 368-9700 Fax: (800) 832-4888
techsupport@mounts.com www.mounts.com

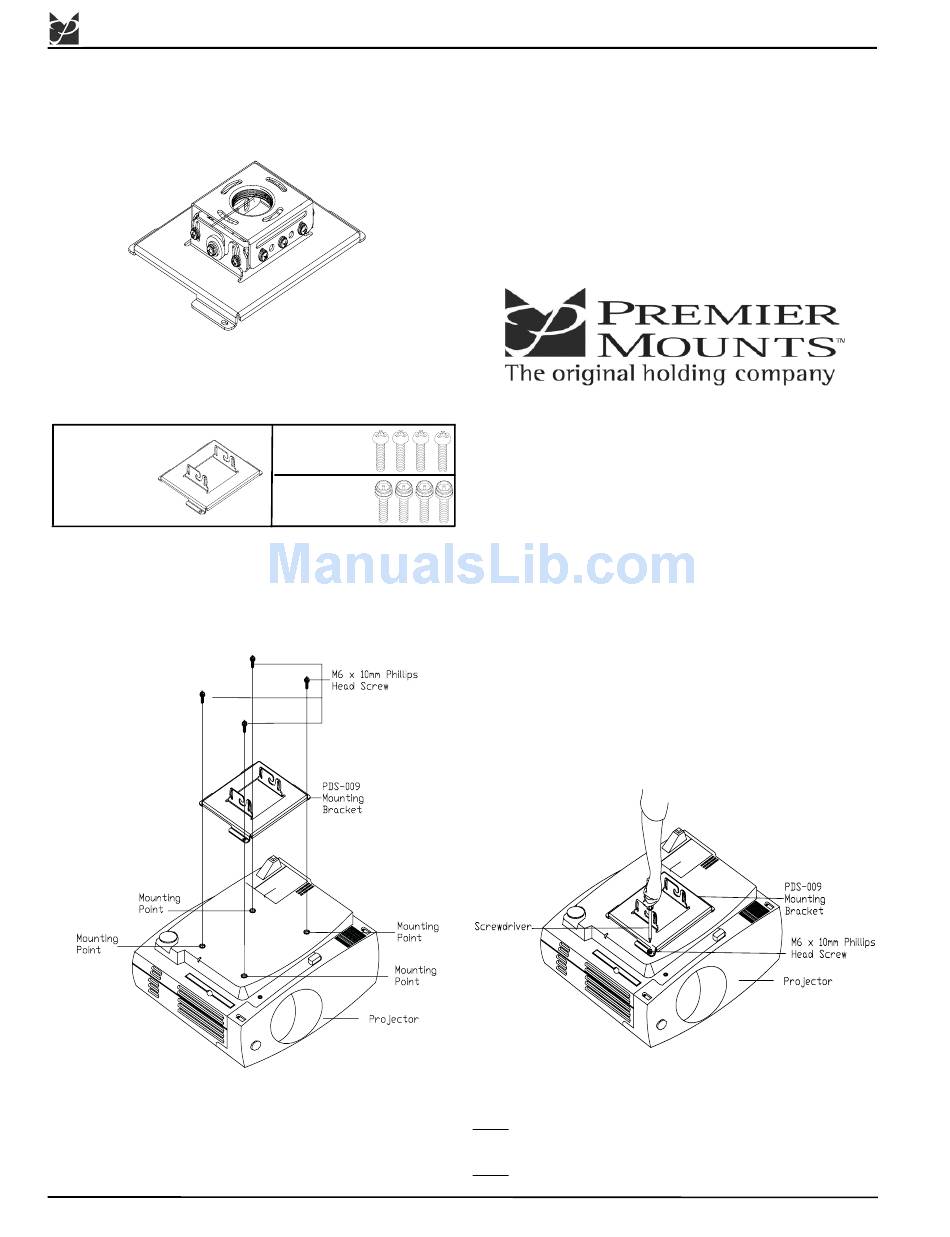

1. Invert the projector and place it on a soft and flat surface. Remove any foot
levelers that might possibly prevent the correct installation of the bracket.
2. Locate the four mounting points located on the bottom of the projector.
3. Line up the mounting points on the projector with the mounting holes on
the PDS-009 mounting bracket.
Installation Instructions
9530-000-091-00
M6 x 10mm Phillips
Head Screws
(Qty 4)
M6 x 10mm Security
Head Screws
(Qty 4)
1. Using a screwdriver, secure the PDS-009 mounting bracket using four (4)
M6 x 10mm Phillips Head screws. Do not over tighten these screws.
Overtightening the screws may result in damaging the threaded inserts on
the projector.
NOTE:
Please refer to the PDS Base Box Installation Instructions to attach
the PDS Base Box to the PDS-009 mounting bracket.
NOTE:
The projector (shown above) is for illustration purposes only.
PDS-009 Projector Bracket
Page 1
