IC Live Users Manual, ICL-F & ICL-F-DUAL

INTRODUCTION

Congratulations on your purchase of a Renkus-Heinz Iconyx ICL Live Steerable Column Loudspeaker. We hope you enjoy it.
Your Iconyx IC Live Steerable Column Loudspeaker was carefully tested and inspected before leaving our factory and should have
arrived in perfect condition. Please carefully inspect the shipping carton(s) and loudspeaker(s) for any noticeable damage, and if
any damage is found, immediately notify the shipping company.
Only you, the consignee, may institute a claim with the carrier for any damage incurred during shipping. Be sure to save the car-
ton(s) and all packing material for the carrier's inspection.
It is also a good idea to save the carton and packing material even though the loudspeaker arrived in good condition. If you should
ever need to ship the loudspeaker, it should be shipped in its original factory packaging.

GENERAL INFORMATION

To simplify shipping and handling, ICL-F-DUAL arrays are shipped as two modules in separate cartons
and need to be assembled in the field. All the hardware needed to assemble the ICL-F-DUAL is included
in the cartons.
If you ordered a HK-ICL series mounting hinge kit with your ICL-F array, the hinge hardware will be
packed with the other hardware.
If you are not constructing a dual array, all you need to do is remove the column loudspeaker from the
carton and install it. You can ignore the assembly instruction that follow and skip to Address Number
Verification on page 6.

ASSEMBLY INSTRUCTIONS

In the following instructions, the term "module" is used to refer to one of the 8-channel sections of the fin-
ished assembly, which is called a column or a column array.
1. Prepare an assembly area. Each module is 4 feet long, so you need a flat surface at least 8 feet long
to assemble the dual array.
2. We suggest covering the assembly area with a heavy cloth or some other soft material to prevent dam-
aging the finish on the cabinets while assembling them.
3. Avoid resting the modules on their grille. The modules are heavy and may deform the grille. Instead,
rest the modules on their sides or back.
4. Place the modules in their respective positions on the assembly area.

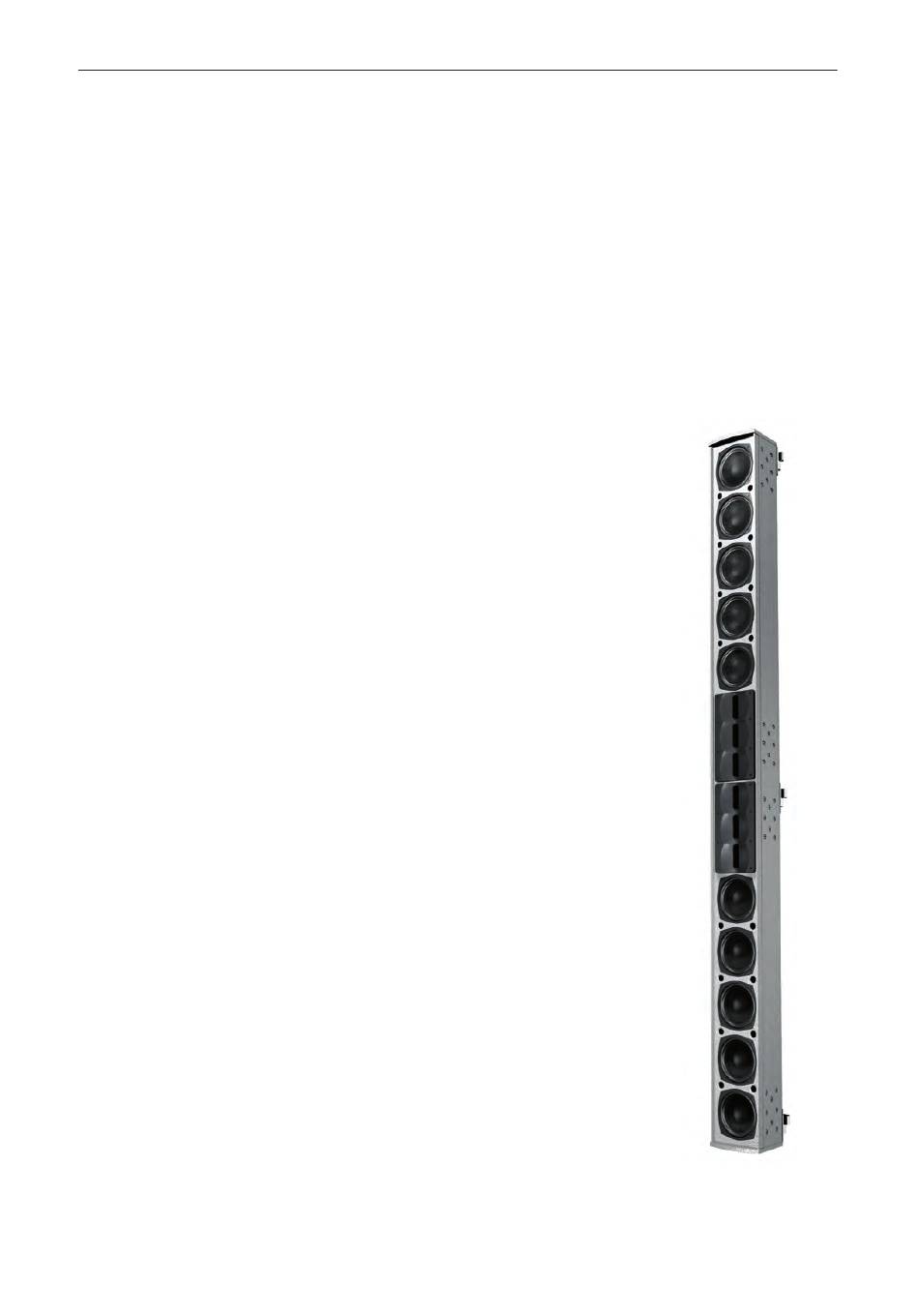

Note: The proper way of assembling the two modules is to join the horn sections together. See photo.
4
