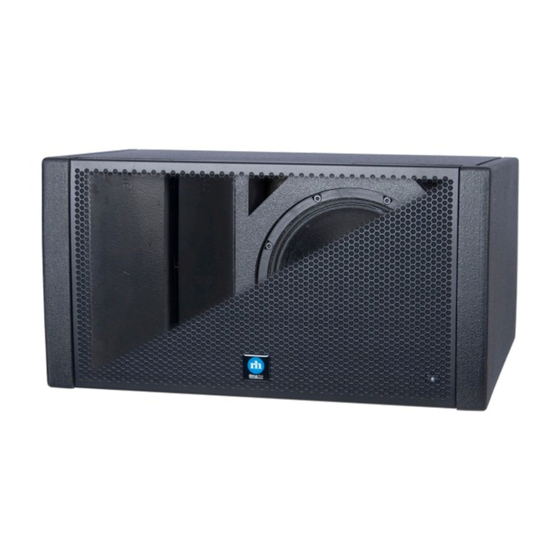

- Page 1 MODULAR INSTALLATION ARRAYS VA101-7 & VX101-7 VA101-15 & VX101-15 VA101-22 & VX101-22 VA101-22/75A & VX101-22/75A VA15S & VX15S Subwoofer Users Manual...
-
Page 2: Table Of Contents
Point Source Array Modules TABLE OF CONTENTS Introduction To VARIA The VARIA Hardware Ground Stacked Vertical Line Arrays Horizontal Arrays Software Rear Panel Connections & Controls DSP Settings Model Number & Horizontal Coverage Cross Reference... -
Page 3: Introduction To Varia
Point Source Array Modules Introduction To VARIA The VARIA loudspeaker family includes three full-range array base for floor standing systems or as a suspension platform for modules and a 15 inch subwoofer. All have been designed to of- flown vertical arrays. VA/VX15S, 15" subwoofers can be flown fer the ultimate in versatility and performance. -
Page 4: The Varia Hardware
Point Source Array Modules The VARIA Hardware The array modules include an internal steel rigging infrastructure designed for safe, easy and clean looking installations in venues of any size or complexity. Note: Add 4 lbs. to each enclosure for the rigging connectors (6 lbs. for the SUB Connector). Enclosure Types: 7°... - Page 5 We strongly recommend that you have your design reviewed and approved by a licensed structural engineer who can also verify the suitability of the VA101-CN-RPK RHANG-VA101H building attachment points. Renkus-Heinz is not responsible for any non-Renkus-Heinz products or for any misuse of Renkus-Heinz products.
-
Page 6: Ground Stacked
Point Source Array Modules Ground Stacked Multiple full range array modules can be stacked on the ground or floor using one or more of the matching subwoofers as a base. The array modules and the subwoofers are joined together us- ing MPS, M1 or M2 connectors. - Page 7 Point Source Array Modules The modular point source nature of VARIA lends itself to building custom coverage patterns to match room geometries. In this fashion, simple arrays such as the one shown below are straightforward. The MPS connector is the only connector needed and a pair is provided with each loudspeaker.
-
Page 8: Horizontal Arrays
Point Source Array Modules Horizontal Arrays The complementary cabinet angles and tightly controlled dispersion allow the sonic outputs of VARIA array modules to be smoothly mixed to obtain the desired coverage perform just as well in horizontal arrays as they do in vertical line arrays. Note: the RHANG-VA101H hardware accommodates only the 22.5 degree VA/VX101-22 You should not attempt to use it with the other VARIA modules. -
Page 9: Software
Point Source Array Modules Software EASE and EASE Focus II Simulation Software Varia101 GLL data in EASE and EASE Focus II simulation software tools allows you and system design- ers to quickly and accurately predict the performance of individual Varia loudspeakers and of Varia arrays in various settings. -
Page 10: Rear Panel Connections & Controls
VX15S subwoofers are shipped wired for fully passive operation using the internal crossover. The crossover can be bypassed by removing the connector plate from the cabinet and changing several internal connections. For detailed instructions, please refer to the Renkus-Heinz Loudspeaker User’s Manual, form RH508. Array Module High Frequency Control Not all setups are identical and neither are all rooms. - Page 11 DSP settings in working memory and recalls preset 00, bringing the unit back to its factory settings. Press and hold the knob for 10 seconds to initiate the reset. The display will turn off, the loudspeaker will reboot. For information on remote control and networking please refer to the Renkus-Heinz RHAON II User’s Manual.
-
Page 12: Dsp Settings
Point Source Array Modules DSP Settings VX101-7 & VX15S DSP Settings Suggested DSP settings for VX101-7 line array modules and their companion VX15S subwoofer combinations appear below. Note that these would not apply to self-powered VA101-7 modules with their built-in DSP. WIRED AS BI-AMP VX101-7 AMP GAIN... - Page 13 Point Source Array Modules VX101-15 & VX15S DSP Settings Suggested DSP settings for VX101-15 line array modules and their companion VX15S subwoofer combinations appear below. Note that these would not apply to self-powered VA101-15 modules with their built-in DSP. WIRED AS BI-AMP VX101-15 AMP GAIN 0 dB...
- Page 14 Point Source Array Modules VX101-22 & VX15S DSP Settings Suggested DSP settings for VX101-22 line array modules and their companion VX15S subwoofer combinations appear below and on the next page. Note that these would not apply to self-powered VA101-22 modules with their built-in DSP. WIRED AS BI-AMP VX101-22 AMP GAIN...
-
Page 15: Model Number & Horizontal Coverage Cross Reference
Point Source Array Modules Model Number & Horizontal Coverage Cross Reference VA101-7 Series VX101-7 Series VA101-7/6-R: 60o H VX101-7/6: 60o H VA101-7/9-R: 90o H VX101-7/9: 90o H VA101-7/12-R: 120o H VX101-7/12: 120o H VA101-7/69-R: 60o to 90o H VX101-7/69: 60o to 90o H (Transitional) (Transitional) VA101-7/912-R: 90o to 120o H... - Page 16 ING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO”. MODULAR INSTALLATION ARRAYS Renkus-Heinz, Inc., 19201 Cook Street, Foothill Ranch, CA 92610-3501, USA Tel: 949-588-9997 • Fax: 949-588-9514 • sales@renkus-heinz.com www.renkus-heinz.com RH-804 Rev D...
