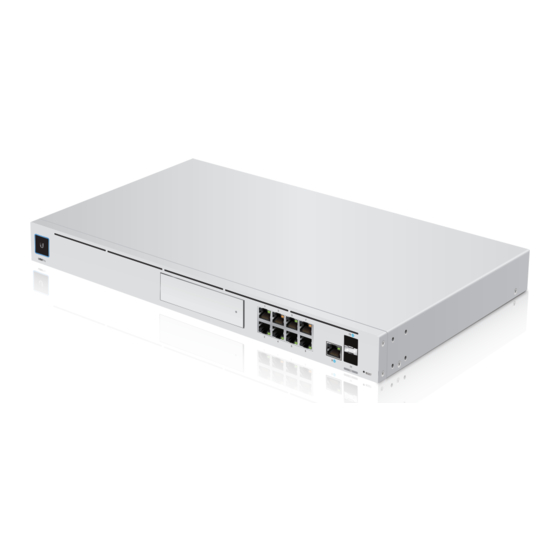

Enterprise Security Gateway
and Network Appliance with
10G SFP+
Model: UDM-Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi Dream Machine Pro UDM-Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti UniFi Dream Machine Pro UDM-Pro

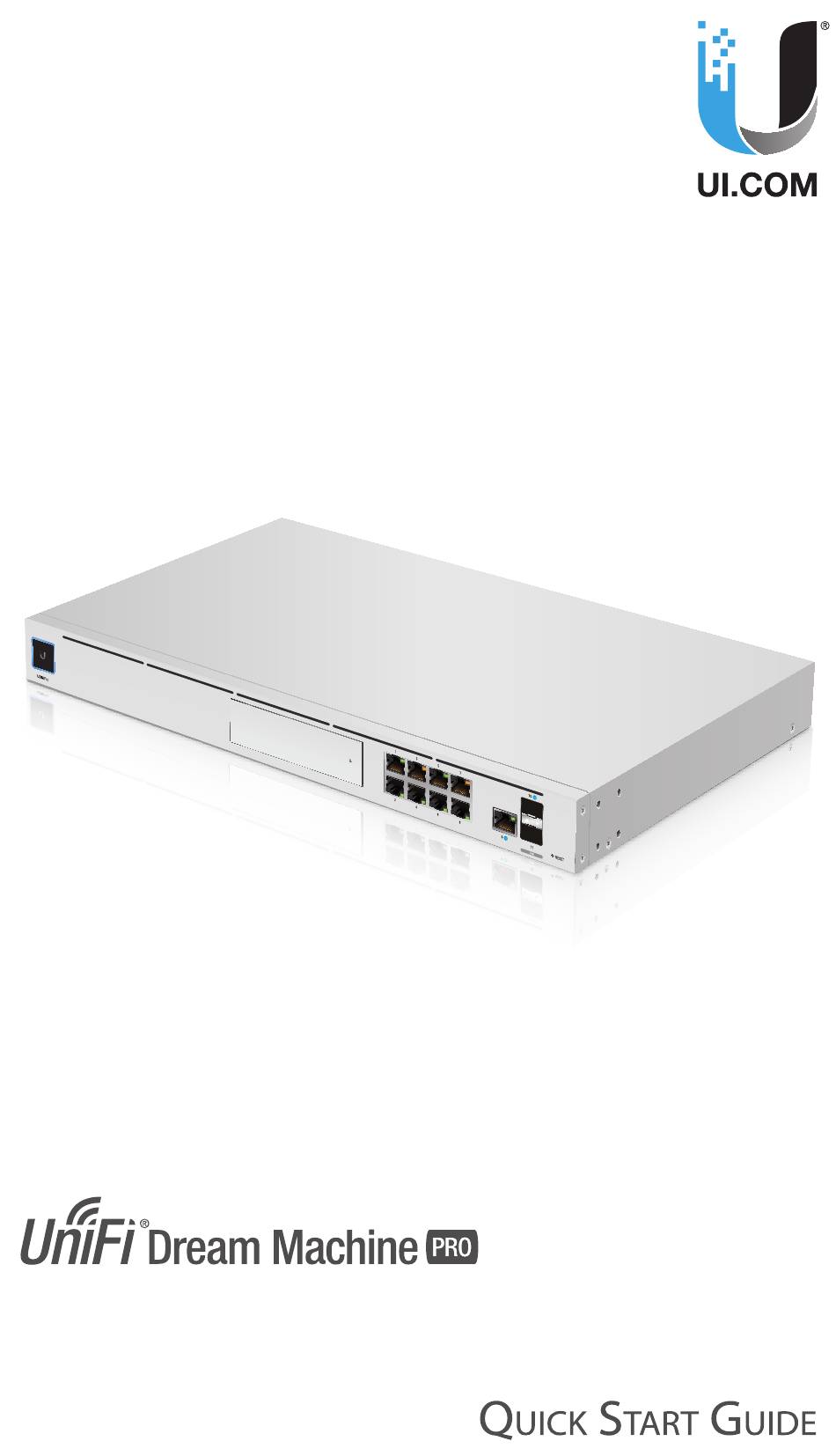

  • Page 1 Enterprise Security Gateway and Network Appliance with 10G SFP+ Model: UDM-Pro...
  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti® UniFi® Dream Machine Pro. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents UniFi Dream Machine Pro Power Cord Rack-Mount Bracket Screws Mounting Screws Brackets (Qty. 2) (Qty.
  • Page 3: Hardware Overview

    Hardware Overview LEDs 9 10 System LED Color State Status Bootup Animation Initializing White Solid Device is ready to be configured Flashing Device is booting up Device is initializing/deinitializing Heartbeat Firmware update in process Blue Solid Device is configured and ready Slow Client connected to device via Flashing...
  • Page 4 State Status No Link RJ-45 Speed/ Link Established at 10/100 Mbps Link/Activity Amber Flashing Indicates Activity LED (Ports 1 - 9) Link Established at 1 Gbps Green Flashing Indicates Activity No Link SFP+ Speed/ Link Established at 1 Gbps Link/Activity Green Flashing Indicates Activity LED (Ports 10 - 11) Link Established at 10 Gbps...
  • Page 5 Item Description Resets to factory defaults. The device should be running after bootup is complete. Press and hold the Reset button for about Reset Button 10 seconds until the LED starts flashing and then becomes solidly lit. After a few seconds, the LED will turn off, and the device will automatically reboot.
  • Page 6: Installation Requirements

    AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the UDM-Pro itself should be housed inside a protective enclosure.
  • Page 12: Hardware Installation

    Hardware Installation...
  • Page 14: Connecting Power

    Connecting Power...
  • Page 15: Connecting To The Internet

    Connecting to the Internet For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility...
  • Page 17: Connecting To The Lan

    Connecting to the LAN...
  • Page 19 Configuration You have the following options: • Enable Bluetooth on your mobile device and use the UniFi Network app. • Use a computer connected to the UDM-Pro on a LAN port. Go to “Chrome Instructions”. UniFi Network App...
  • Page 20 1.5 m 3. Follow the on-screen instructions.
  • Page 21 Chrome Instructions Use the Chrome web browser to set up your device. 1. Ensure that your host system is on the same Layer 2 network as the UDM-Pro. 2. Launch the Chrome web browser and go to https://setup.ui.com https://setup.ui.com 3. Follow the on-screen instructions of the Setup Wizard. After you run the UniFi Setup Wizard, a login screen will appear for the UniFi Network Controller management interface.
  • Page 22: Specifications

    Specifications UDM-Pro Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") Weight 3.90 kg (8.60 lb) With Mount Brackets 3.99 kg (8.80 lb) Interfaces Networking (8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Ports (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port Management Ethernet In-Band...
  • Page 23: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 24: Limited Warranty

    Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 25: Important Note

    ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A-UDMPRO) has been approved by ISED Canada.
  • Page 26 Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Brazil Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados.
  • Page 27 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 28 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 29: Declaration Of Conformity

    English Hereby, UBIQUITI, declares that this UDM-Pro device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: ui.com/compliance...
  • Page 30 2014/35/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn ui.com/compliance Norsk [Norwegian] Herved UBIQUITI, erklærer at denne UDM-Pro enheten, er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene 2014/53/EU, 2014/30/EU, 2014/35/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på følgende internettadresse: ui.com/compliance...
  • Page 31: Online Resources

    New York, NY 10017 ©2019 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
