Ubiquiti USG-PRO-4 Quick Start Manual

Hide thumbs Also See for USG-PRO-4:
Table of Contents

Advertisement

Quick Links

See also: Quick Start Manual
USG-PRO-4 Quick Start Guide

Package Contents

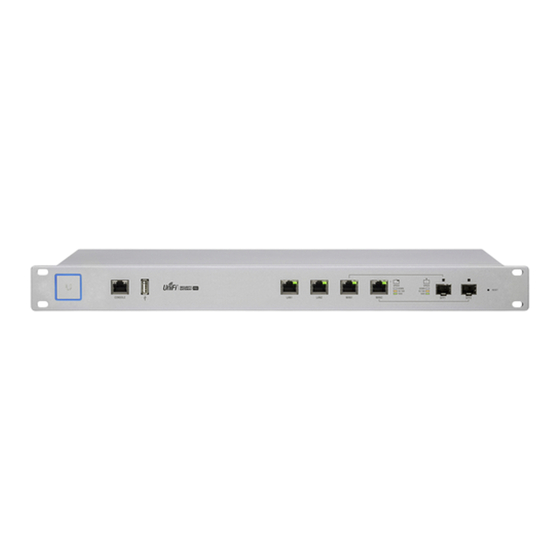

UniFi Security Gateway Pro
Cage Nuts (Qty. 4)

Installation Requirements

Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through the AC ground of the power
supply.
We recommend that you protect your networks from harmful outdoor environments and
destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit:
Note:
be housed inside a protective enclosure.
IMPORTANT:
https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]
USG-PRO-4 Quick Start Guide
ui.com/toughcable
Although the cabling can be located outdoors, the UniFi Gateway itself should
We strongly recommend using UPS backup and power regulation to
Power Cord
Mounting Screws (Qty. 4)

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti USG-PRO-4

Summary of Contents for Ubiquiti USG-PRO-4

  • Page 1: Package Contents

    Ethernet connections and should be grounded through the AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable...

  • Page 2: Hardware Overview

    USG-PRO-4 Quick Start Guide prevent equipment damage due to stability issues with local AC power. UniFi Controller System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (or above) Web Browser: Google Chrome (Other browsers may have limited functionality) UniFi Controller software v4.8 or higher (available at: ui.com/download/unifi)

  • Page 3: Hardware Installation

    USG-PRO-4 Quick Start Guide Link Established at 10/100 Mbps Amber Flashing Indicates Activity Link Established at 1000 Mbps Green Flashing Indicates Activity LAN (Ports 1 - 2) RJ45 ports support 10/100/1000 Ethernet connections. By default, the LAN1 port is set to DHCP Server, and its IP address is 192.168.1.1/24.
  • Page 4 USG-PRO-4 Quick Start Guide https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]...
  • Page 5 USG-PRO-4 Quick Start Guide https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]...

  • Page 6: Connecting Ethernet

    USG-PRO-4 Quick Start Guide Connecting Ethernet https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]...
  • Page 7 USG-PRO-4 Quick Start Guide Using SFP Ports https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]...
  • Page 8 USG-PRO-4 Quick Start Guide https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]...

  • Page 9: Software Installation

    USG-PRO-4 Quick Start Guide Note: The corresponding WAN port will be deactivated. For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi Software Installation Download the latest version of the UniFi Controller software at: ui.com/download/unifi From a management station connected to the same Layer-2 network, launch the installer and follow the on-screen instructions.
  • Page 10 USG-PRO-4 Quick Start Guide You can manage your network and view network statistics using the UniFi Controller management interface. For information on using the UniFi Controller software, refer to the User Guide located on our website at: ui.com/download/unifi Adopting the UniFi Gateway 1.
  • Page 11 USG-PRO-4 Quick Start Guide 2. Locate the UniFi Gateway in the list of devices under the Model column. Click Adopt. 3. The System LED on the UniFi Gateway will turn blue to confirm that it is successfully adopted. Optional WAN Port Configuration via Layer 3 By default, the WAN1 port is set to DHCP so it can be assigned network settings by the service provider.

  • Page 12: Specifications

    USG-PRO-4 Quick Start Guide Note: If the UniFi Gateway has not been adopted by a UniFi Controller, the login window will be skipped and the Setup window will appear. 3. Click Edit Configuration to configure the WAN1 port as DHCP, Static IP, or PPPoE.

  • Page 13: Safety Notices

    USG-PRO-4 Quick Start Guide Data Ports (2) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP Combination Ports Max. Power Consumption Power Supply Internal AC/DC Power Adapter, 60W (24V, 2.5A) Supported Voltage Range 110 - 240VAC LEDs System Status Data Ports Speed/Link/Activity Layer 3 Forwarding Performance...

  • Page 14: Limited Warranty

    USG-PRO-4 Quick Start Guide 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

  • Page 15: Declaration Of Conformity

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/USG-PRO-4/USG-PRO-4_EN.html[10/8/2019 8:04:05 AM]...
