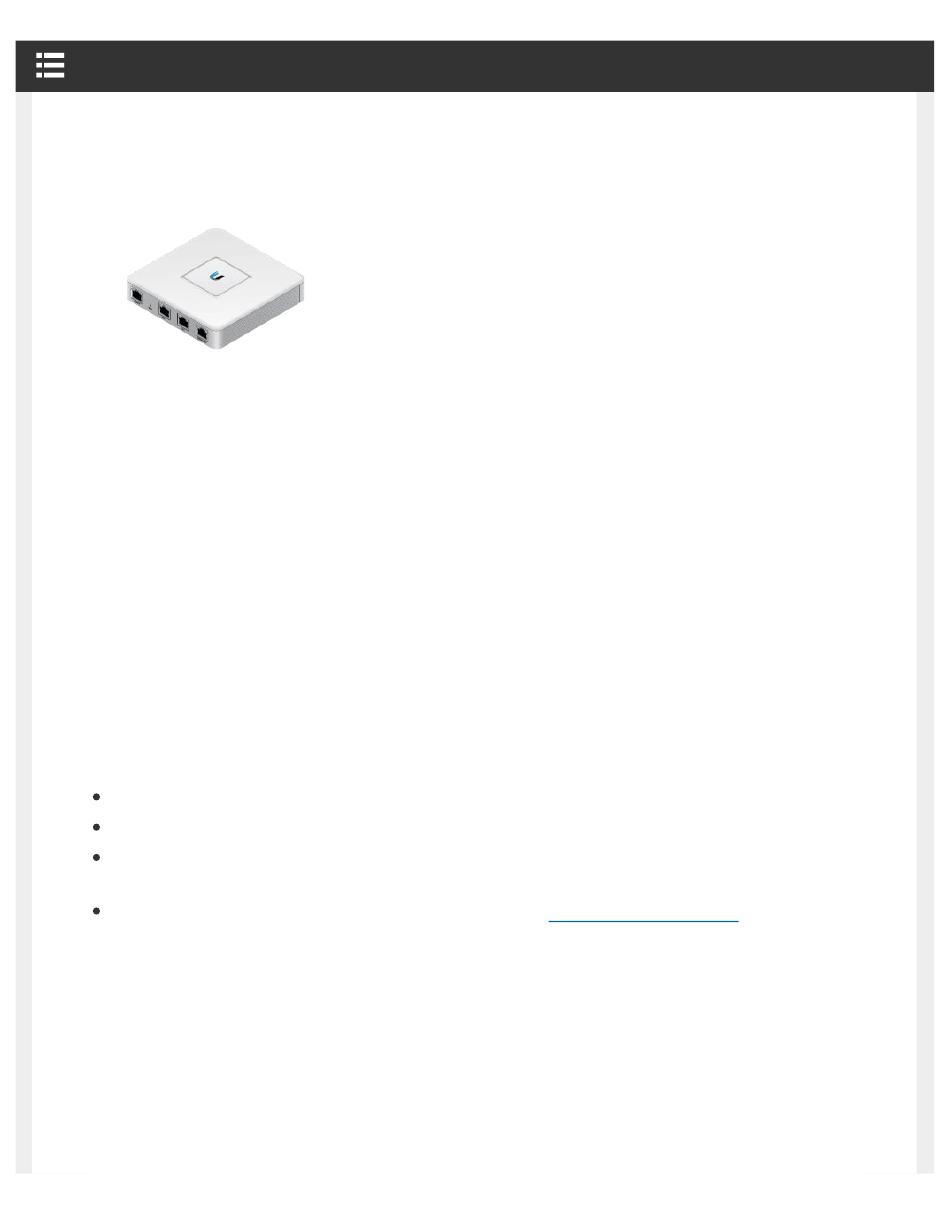

USG Quick Start Guide
Package Contents
UniFi Security Gateway
Screws (Qty. 2)
UniFi Controller System Requirements
Microsoft Windows 8, Mac OS X, or Linux
Java Runtime Environment 1.6 (or above)
Web Browser: Mozilla Firefox, Google Chrome, Microsoft Edge, or Microsoft Internet
Explorer 11
UniFi Controller software v5.4 or higher (available at: ui.com/download/unifi)

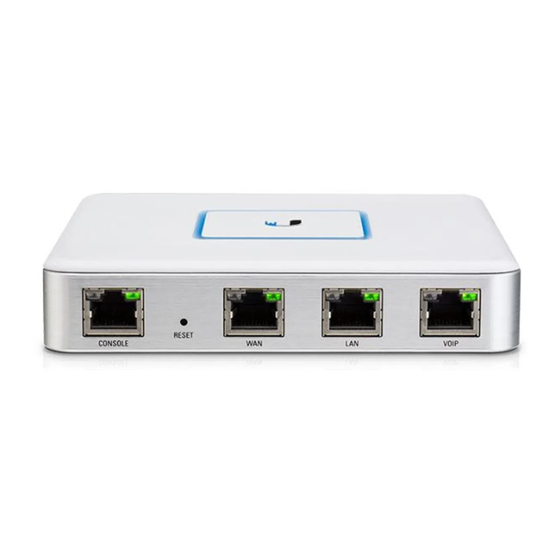

Hardware Overview
Ports Panel
https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]
USG Quick Start Guide
Power Adapter (12V, 1A)
Screw Anchors (Qty. 2)
Power Cord
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti UniFi Security Gateway
Summary of Contents for Ubiquiti UniFi Security Gateway
-
Page 1: Package Contents
USG Quick Start Guide USG Quick Start Guide Package Contents UniFi Security Gateway Power Adapter (12V, 1A) Power Cord Screws (Qty. 2) Screw Anchors (Qty. 2) UniFi Controller System Requirements Microsoft Windows 8, Mac OS X, or Linux Java Runtime Environment 1.6 (or above) - Page 2 USG Quick Start Guide Console RJ45 serial console port for CLI management. Use a RJ45-to-DB9 serial console cable to connect the Console port to your computer. Then configure using the following settings: Baud rate 115200 Data bits 8 Parity NONE Stop bits 1 Flow control NONE Reset...
-
Page 3: Hardware Installation
USG Quick Start Guide System LED Click here for detailed descriptions. Power LED Power Off Green Power On Speed/Link/Act LED No Link Amber Link Established at 10/100 Mbps Amber Flashing Link Activity at 10/100 Mbps Green Link Established at 1000 Mbps Green Flashing Link Activity at 1000 Mbps Hardware Installation... - Page 4 USG Quick Start Guide https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]...
- Page 5 USG Quick Start Guide https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]...
- Page 6 USG Quick Start Guide https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]...
-
Page 7: Connecting Power
USG Quick Start Guide Connecting Power https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]... -
Page 8: Network Connections
USG Quick Start Guide Network Connections https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]... -
Page 9: Software Installation
USG Quick Start Guide Software Installation Download the latest version of the UniFi Controller software at: ui.com/download/unifi From a management station connected to the same Layer-2 network, launch the installer and follow the on-screen instructions. Note: If you already have UniFi Controller v5.4 or higher installed, go to the section, Adopting the UniFi Gateway. - Page 10 USG Quick Start Guide You can manage your network and view network statistics using the UniFi Controller management interface. For information on using the UniFi Controller software, refer to the User Guide located on our website at: ui.com/download/unifi Adopting the UniFi Gateway 1.
- Page 11 USG Quick Start Guide 2. Locate the UniFi Gateway in the list of devices under the Model column. Click Adopt. 3. The System LED on the UniFi Gateway will turn blue to confirm that it is successfully adopted. Optional WAN Port Configuration via Layer 3 By default, the WAN port is set to DHCP so it can be assigned network settings by the service provider.
-
Page 12: Specifications
USG Quick Start Guide Note: If the UniFi Gateway has not been adopted by a UniFi Controller, the login window will be skipped and the Setup window will appear. 3. In the Setup window, click Edit Configuration to configure the WAN port to DHCP, Static IP, or PPPoE. -
Page 13: Safety Notices
USG Quick Start Guide Serial Console Port (1) RJ45 Serial Port Data Ports (3) 10/100/1000 Ethernet Ports Max. Power Consumption Power Supply 12VDC, 1A Power Adapter (Included) Supported Voltage Range 9 to 24VDC LEDs System Status Serial Console Port Power Data Ports Speed/Link/Activity Layer 3 Forwarding Performance... -
Page 14: Electrical Safety Information
USG Quick Start Guide Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. 2. -
Page 15: Declaration Of Conformity
CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/USG/USG_EN.html[10/8/2019 8:07:47 AM]...
