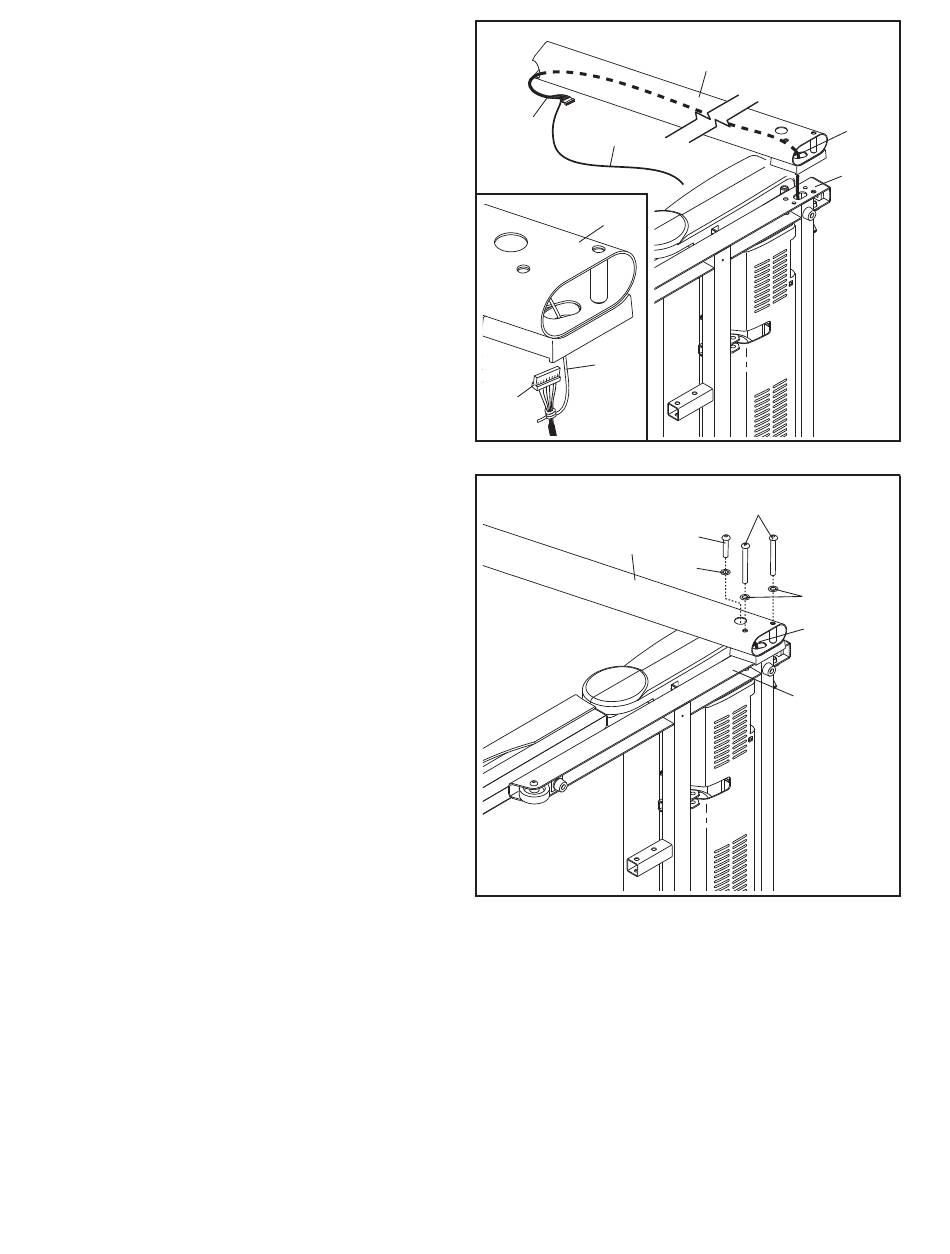

3. Identify the Right Upright (85), which is marked
with a "Right" sticker. Hold the Right Upright
near the Base (95) as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (85) securely around the end of
the Upright Wire (87). Then, pull the other end
of the wire tie until the Upright Wire is routed
completely through the Right Upright.
4. Hold the Right Upright (85) against the Base
(95). Be careful not to pinch the Upright
Wire (87). Insert two 3/8" x 4" Bolts (7) with two
3/8" Star Washers (11) and a 3/8" x 1 1/2" Bolt
(14) with a 3/8" Star Washer (11) into the Right
Upright.
Partially tighten the 3/8" x 4" Bolts (7) until the
heads of the Bolts touch the Right Upright (85);
do not fully tighten the Bolts yet. Partially
tighten the 3/8" x 1 1/2" Bolt (14).
