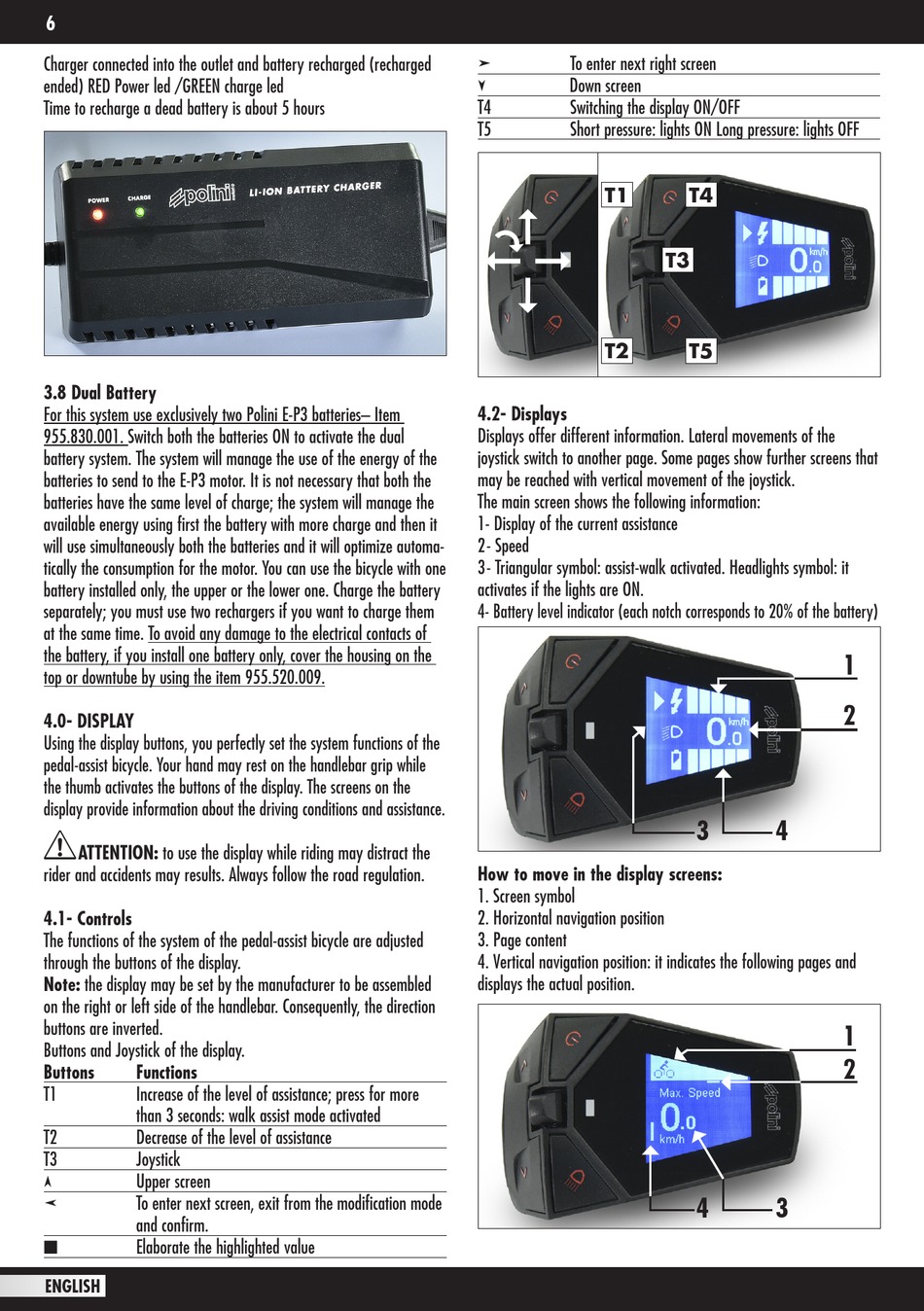

Dual Battery - Polini motori E-P3 Use And Maintenance Manual

6
Charger connected into the outlet and battery recharged (recharged
ended) RED Power led /GREEN charge led
Time to recharge a dead battery is about 5 hours

3.8 Dual Battery

For this system use exclusively two Polini E-P3 batteries– Item
955.830.001. Switch both the batteries ON to activate the dual
battery system. The system will manage the use of the energy of the
batteries to send to the E-P3 motor. It is not necessary that both the
batteries have the same level of charge; the system will manage the
available energy using first the battery with more charge and then it
will use simultaneously both the batteries and it will optimize automa-
tically the consumption for the motor. You can use the bicycle with one
battery installed only, the upper or the lower one. Charge the battery
separately; you must use two rechargers if you want to charge them
at the same time. To avoid any damage to the electrical contacts of
the battery, if you install one battery only, cover the housing on the
top or downtube by using the item 955.520.009.
4.0- DISPLAY
Using the display buttons, you perfectly set the system functions of the
pedal-assist bicycle. Your hand may rest on the handlebar grip while
the thumb activates the buttons of the display. The screens on the
display provide information about the driving conditions and assistance.
!
ATTENTION: to use the display while riding may distract the
rider and accidents may results. Always follow the road regulation.
4.1- Controls
The functions of the system of the pedal-assist bicycle are adjusted
through the buttons of the display.
Note: the display may be set by the manufacturer to be assembled
on the right or left side of the handlebar. Consequently, the direction
buttons are inverted.
Buttons and Joystick of the display.
Buttons Functions
T1 Increase of the level of assistance; press for more
than 3 seconds: walk assist mode activated
T2 Decrease of the level of assistance
T3 Joystick
Upper screen
c
To enter next screen, exit from the modification mode
b
and confirm.
Elaborate the highlighted value
■
ENGLISH
To enter next right screen
a
Down screen
d
T4 Switching the display ON/OFF
T5 Short pressure: lights ON Long pressure: lights OFF
T1
T2
4.2- Displays
Displays offer different information. Lateral movements of the
joystick switch to another page. Some pages show further screens that
may be reached with vertical movement of the joystick.
The main screen shows the following information:
1- Display of the current assistance
2 - Speed
3 - Triangular symbol: assist-walk activated. Headlights symbol: it
activates if the lights are ON.
4- Battery level indicator (each notch corresponds to 20% of the battery)
How to move in the display screens:
1. Screen symbol
2. Horizontal navigation position
3. Page content
4. Vertical navigation position: it indicates the following pages and
displays the actual position.
T4
T3
T5
3 4
4 3
1
2
1
2
