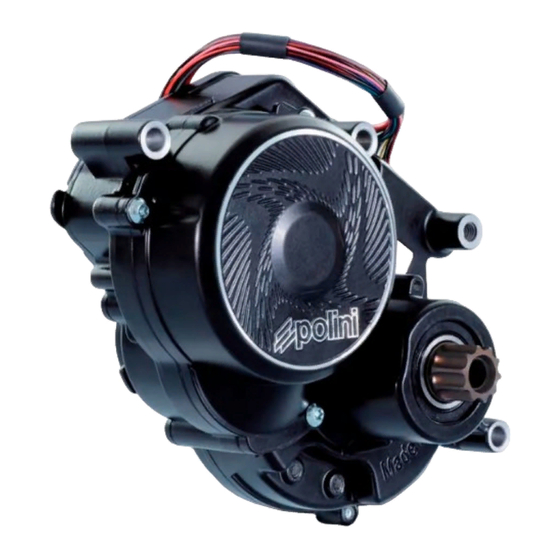

E-P3 POLINI MOTOR – USER'S MANUAL
- Thank you for choosing an E-bike equipped with E-P3 Polini motor
- Only drive your vehicle using protective clothing
CONTENTS
1.0- IMPORTANT NOTICE
1.1- Important information for your safety
1.2- Battery cleaning
1.3- Battery key
2.0- E-P3 POLINI system features
2.1- Turn E-P3 system on
2.2- Turn E-P3 system off
3.0- Charging the battery
3.1- Data sheet
3.2- About the charger LED lamp
3.3- About the battery charging
3.4- Installing and removing the battery
4.0- Display
4.1- Controls
4.2- Display
4.3- Switch the display off
4.4- Headlights – installation of additional lights
5.0- Pedal-assist setting
5.1-Advices to optimize the battery range
5.2- Walk assist mode (walk)
6.0- Servicing and errors research
7.0-Assembly of the water bottle holder
8.0-Firware update
9.0- Disposal
1.0- IMPORTANT NOTICE
For safety, carefully read this users' manual before using and follow it for correct use.
• Go to the place of purchase or to a bicycle dealer for information on the installation and adjustment of the products
which are not included in this manual.
• Do not disassemble or alter this product.
• Use the product according to the local laws and regulations.

1.1- Important Safety information

DANGER
Handling the battery
• Do not deform, modify and disassemble the battery. Do not apply welding on the battery itself. Doing so may cause
leakages, overheating, bursting or ignition of the battery.
• Do not leave the battery near sources of heat such as heaters. Do not heat the battery or throw it into the fire.
Doing so may cause bursting or ignition of the battery.
• Do not subjects the battery to strong shocks or throw it. Doing so may cause bursting or ignition of the battery.
• Do not place the battery into fresh or sea water and avoid the battery terminals getting wet. Doing so may cause
bursting or ignition of the battery.
