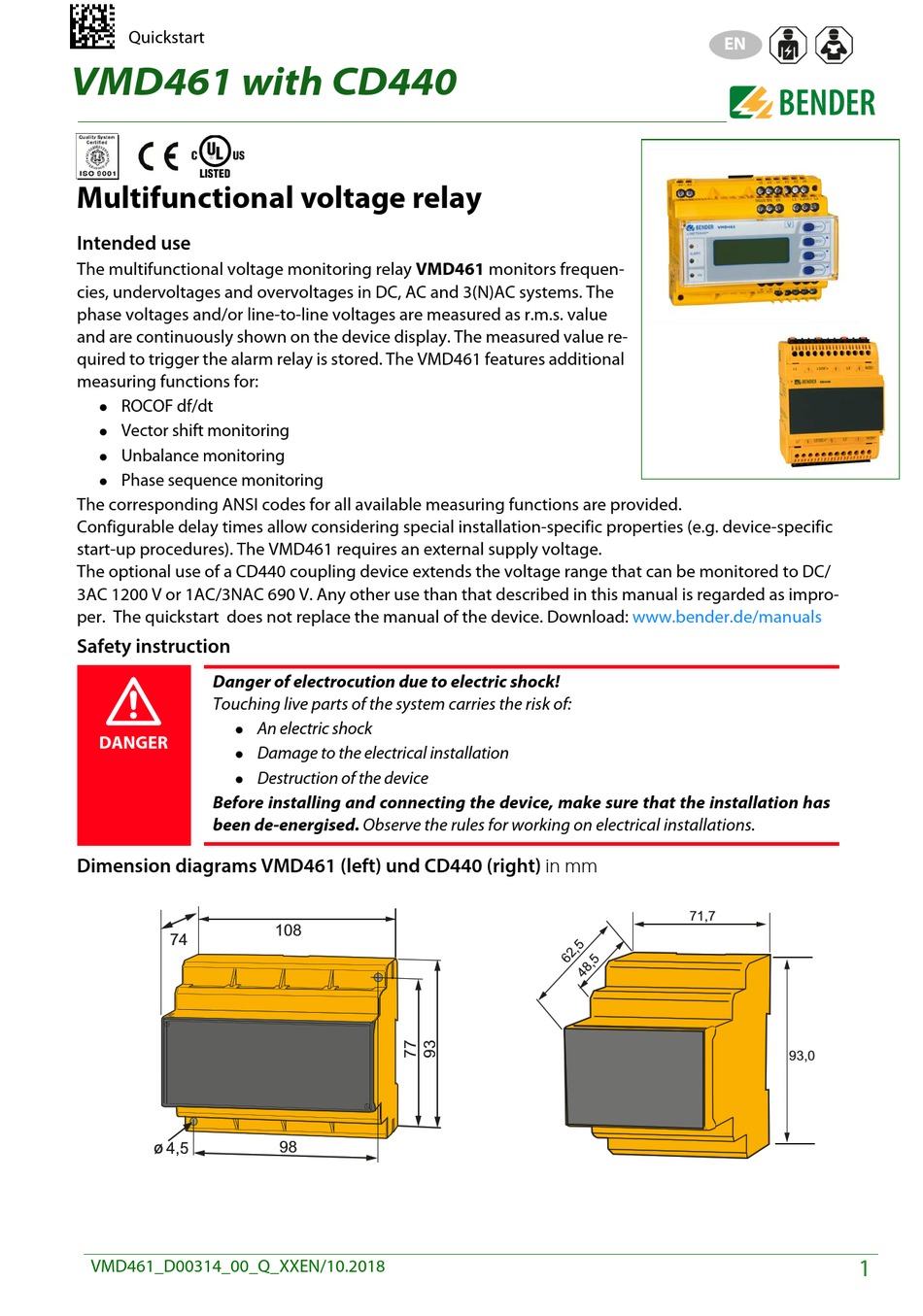

Quickstart
VMD461 with CD440
Multifunctional voltage relay
Intended use
The multifunctional voltage monitoring relay VMD461 monitors frequen-
cies, undervoltages and overvoltages in DC, AC and 3(N)AC systems. The
phase voltages and/or line-to-line voltages are measured as r.m.s. value
and are continuously shown on the device display. The measured value re-
quired to trigger the alarm relay is stored. The VMD461 features additional
measuring functions for:
ROCOF df/dt
 
Vector shift monitoring
 
Unbalance monitoring
 
Phase sequence monitoring
 
The corresponding ANSI codes for all available measuring functions are provided.
Configurable delay times allow considering special installation-specific properties (e.g. device-specific
start-up procedures). The VMD461 requires an external supply voltage.
The optional use of a CD440 coupling device extends the voltage range that can be monitored to DC/
3AC 1200 V or 1AC/3NAC 690 V. Any other use than that described in this manual is regarded as impro-
per. The quickstart does not replace the manual of the device. Download:
Safety instruction
Danger of electrocution due to electric shock!
Touching live parts of the system carries the risk of:
 
DANGER
 
 
Before installing and connecting the device, make sure that the installation has
been de-energised. Observe the rules for working on electrical installations.
Dimension diagrams VMD461 (left) und CD440 (right) in mm
74
VMD461_D00314_00_Q_XXEN/10.2018
An electric shock
Damage to the electrical installation
Destruction of the device
108
98
EN
www.bender.de/manuals
71,7
93,0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VMD461 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bender VMD461

  • Page 1 DC, AC and 3(N)AC systems. The phase voltages and/or line-to-line voltages are measured as r.m.s. value and are continuously shown on the device display. The measured value re- quired to trigger the alarm relay is stored. The VMD461 features additional measuring functions for: ROCOF df/dt ...
  • Page 2 VMD461 CD440 Wiring Depending on the application, connect the device according to the following wiring diagrams.. Risk unwanted device The VMD461 can be opera- failure! ted without a CD440 in ap- Do not supply device from the propriate power supply monitored system.
  • Page 3 N/DC- L2/DC+ N/DC- CD440 CD440 L2'/DC+' L3' N'/DC-' L2'/DC+' L3' N'/DC-' L2'/DC+' L3' N'/DC-' L2'/DC+' L3' N'/DC-' A1 A2 A1 A2 L2/DC+ N/DC- L2/DC+ N/DC- VMD461 VMD461 INFO INFO LINETRAXX® LINETRAXX® TEST TEST ALARM ALARM RESET RESET MENU MENU VMD461_D00314_00_Q_XXEN/10.2018...
  • Page 4 N/DC- CD440 optional CD440 L2/DC+ N/DC- CD440 L2'/DC+' L3' N'/DC-' L2'/DC+' L3' N'/DC-' L2'/DC+' L3' N'/DC-' L2'/DC+' L3' N'/DC-' A1 A2 L2/DC+ N/DC- L2/DC+ N/DC- VMD461 INFO VMD461 LINETRAXX® INFO LINETRAXX® TEST TEST ALARM ALARM RESET RESET MENU MENU VMD461_D00314_00_Q_XXEN/10.2018...
  • Page 5 N/DC- CD440 optional L2/DC+ N/DC- CD440 L2'/DC+' L3' N'/DC-' L2'/DC+' N'/DC-' L2/DC+ N/DC- VMD461 INFO LINETRAXX® TEST ALARM RESET MENU Details regarding the digital inputs (D1, D2, RT1) low : < 4 V DC 12 V high : > 6 V DC U max = 30 V DC I <...
  • Page 6: Initial Commissioning

    Select the contrast ratio from an infinite loop display. Simultaneously press and hold down the buttons "INFO" and "MENU" until the display text is clearly readable. After reaching a black display, the contrast setting process starts again with a white dis- play. User interface VMD461 LINETRAXX® Legend Power On LED, green; Element lights when the voltage supply is available and the device is in operation;...
  • Page 7 MENU MENU Menu Menu display display LEDs The state of the VMD461 can be determined by means of the LEDs. The following table provides an over- view of the possibilities. Meaning Meaning Action Normal operation mode: Alarm, limit value of...
  • Page 8 Software date measurement technology, Software version display, Software date display, Manufacturer of the device, Address of the manufacturer, Internet address of the manufacturer © Bender GmbH & Co. KG All rights reserved. Bender GmbH & Co. KG Reprinting only with permission of P.O.
